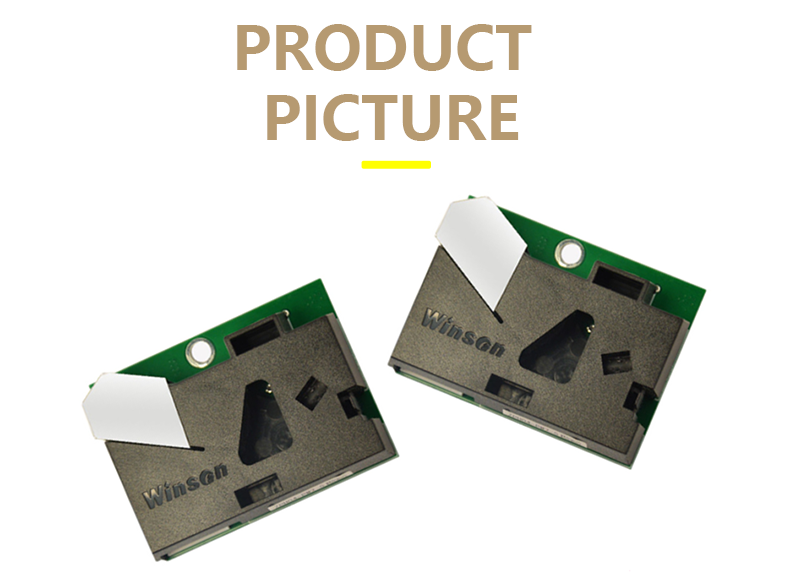

ZPH04 Air Pollution And Dust Two-in-one Sensor PM2.5 Smoke Dust Laser Sensor For Household

• Model Number:XST-ZPH04
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Air Pollution And Dust
• Brand:ZPH04 Particles Sensor
• Voltage - Supply:5±0.2 V (DC)
• Current - Supply:≤150mA
• Operating Temperature:0℃~50℃
• Humidity Range:≤95%RH

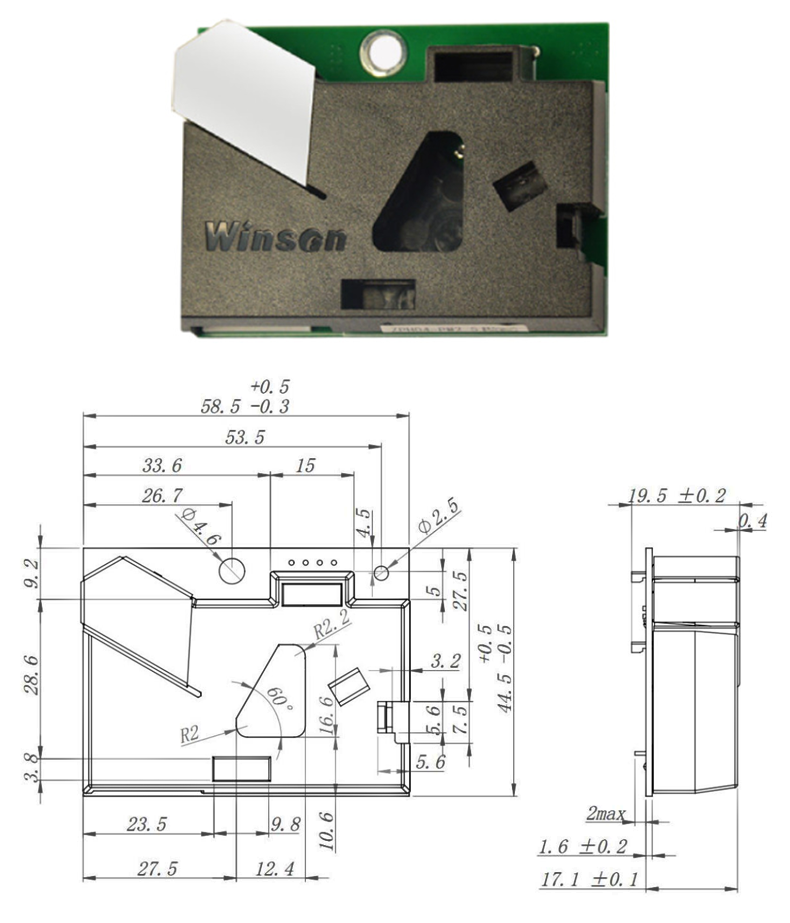

• Size / Dimension:59.5x44.5x20mm(LxWxH)
• Output Mode:UART / PWM
• Output signal voltage:4.3±0.2 V
• Detection ability:Smallest particles 1 μm diameter
• Warm-up time:1min (Device warming-up time)
• Physical interface:EH2.54-5P(Terminal socket)

Profile
This sensor integrates infrared PM2.5 detection technology, using particle counting principle to detect PM2.5 in the environment. It can detect the particles (diameter ≥1μm).Before delivery, the sensor has been aged, debugged, calibrated and has good consistency and high sensitivity.

Features
Good Stability for long time
Easy to install and use
Interface output is multiple
High Sensitivity
Good Consistency
Modular design & Anti-interference

Applications
Air Purifier
Air Refresher
Civil and Commercial AC
HVAC System
AC System
Smoke Alarm System
