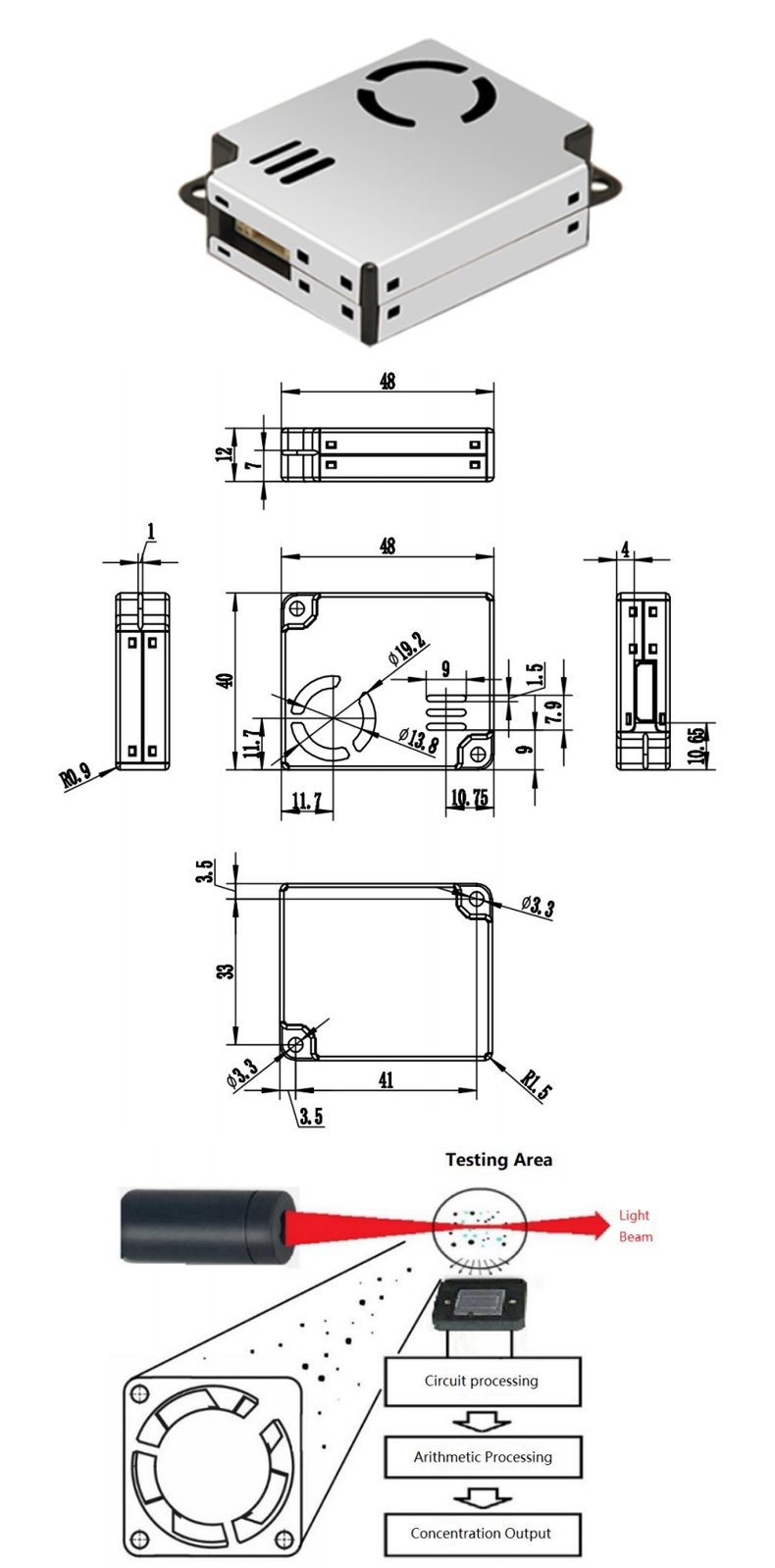

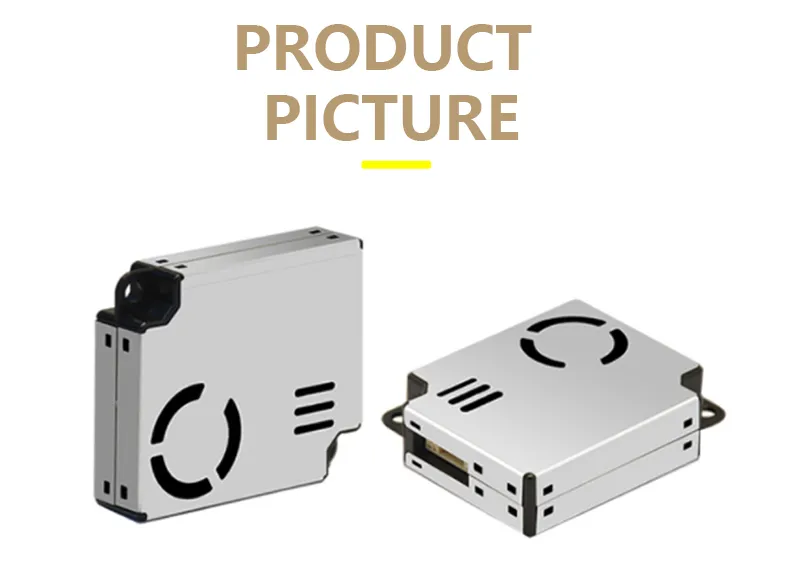

ZH07 PM2.5 Laser Dust Sensor Module Air Quality Particle Concentration Detection Sensor Module

• Model Number:XST-ZH07
• Type:Dust Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Air Quality Detection
• Description:Laser Dust Sensor
• Detectable particle diameter range:0.3-10μm
• Effective Range:0-1000μg/m³
• Detection Interval:1s
• PM2.5 Detection Accuracy:0-100 μg/m³:±15μg/m³
• Working Voltage:4.8V~5.5V(DC)
• Working Current:<120mA
• Response Time:T90<30s
• Working Humidity:Humidity 0~80%RH(No Condensation)
• Working Tem.:-10~60℃
• MTTF:Continuous >10000H

Profile
Sensitive material of MQ-4 gas sensor is SnO2,which with lower conductivity in clean air. When the target flammable gas exist, the sensor’s conductivity gets higher along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit. MQ-4 gas sensor has high sensitivity to methane, also has anti-interference to alcohol and other gases.

Features
It has good sensitivity to methane in wide range, and has advantages such as long lifespan, low cost and simple drive circuit &etc.

Main Applications
It is widely used in domestic gas leakage alarm, industrial flammable gas alarm and portable gas detector.
