Xunster XST-LL-AFD-V70 liquid flow sensor 20L 40L 100L 200L flow sensor
XST-LL-AFD-V70
minimum order
1 piece
Quantity
- Model Number:XST-LL-AFD-V70
- Type:Liquid Flow Sensor
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:ultrasonic principle
- Description:Liquid Flow Sensor
- Supporting pipeline materials:Metal pipe, Resin pipe
- Supporting fluids:Various liquids
- Measurement range:20L~500L
- Power waste:≤150 mA
- Output mode:RS485
- Fluid temperature:0~85℃

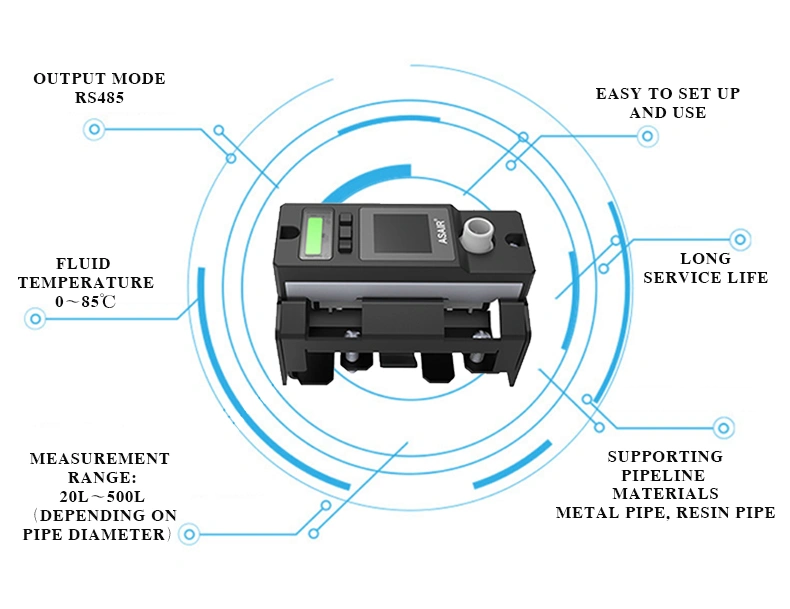

AFD-V70 liquid flow sensor is a sensor that uses ultrasonic principle to detect liquid flow. By calculating the relationship between flow time and flow rate, it can realize real-time monitoring of fluid.
| Repetition accuracy | 0.5s response time: 0.5s±2.0%, 1s response time: 1s±1.5%, 2.5s response time: 2.5s±1.0%, 5s response time: 5s±0.5%, 10s response time: 10s±0.35%, 30s response time: 30s±0.2%, 60s response time: 60s±0.15% |
| Supporting pipeline materials | Metal pipe, Resin pipe |
| Supporting fluids | Various liquids (water, oil, chemicals, etc.) |
| Measurement range | 20L~500L(depending on pipe diameter) |
| Power waste | ≤150 mA |
| Output mode | RS485 |
| Fluid temperature | 0~85℃(no freezing on the surface of the pipeline) |
