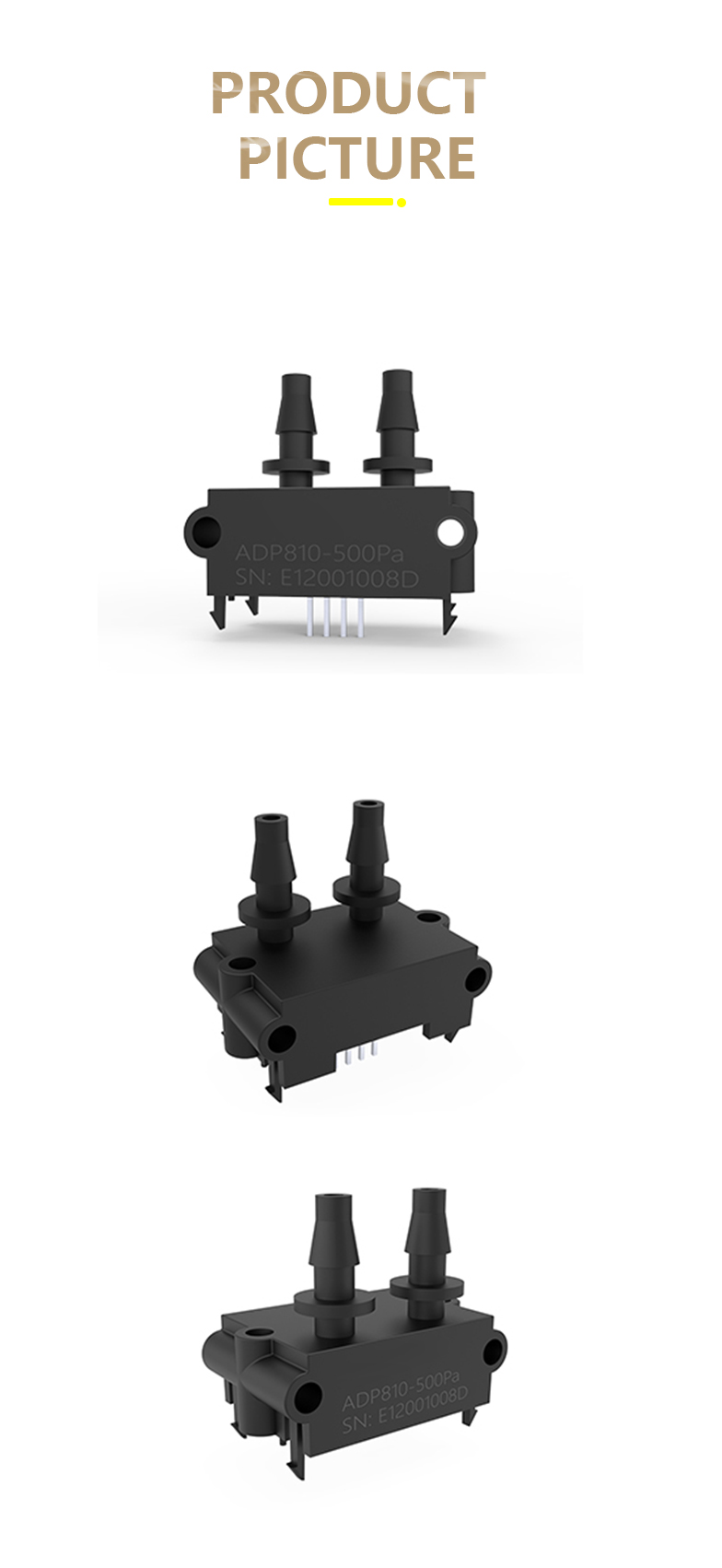

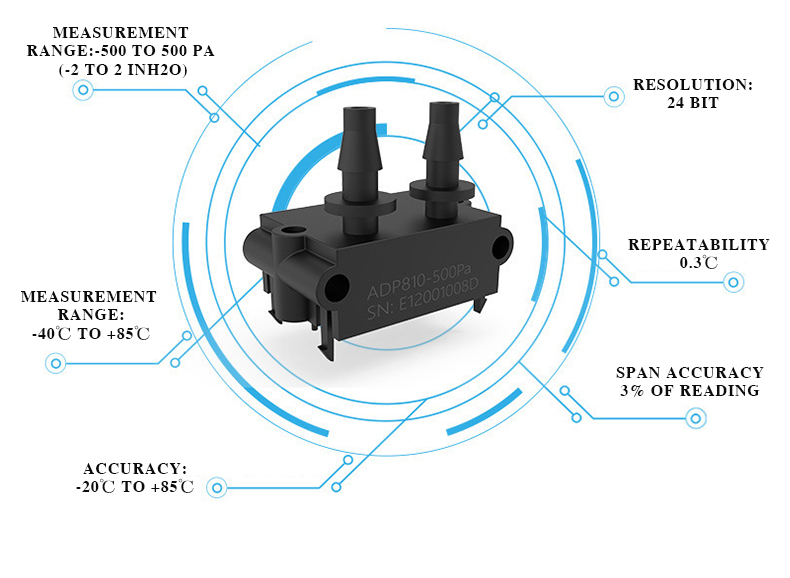

Xunster XST-LL-ADP810 flow sensor digital differential Pressure Sensor
ADP810
minimum order
1 piece
Quantity
- Type:Flow Sensors
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Model Number:ADP810
- Supply Voltage VDD:-0.3 to 5.5V
- Input current on any pin:±70mA
- Storage temperature range:-40 to +85℃
- ESD HBM (human body model):2kv
| Parameter | Rating | Units |
| Supply Voltage VDD | -0.3 to 5.5 | V |
| Max Voltage on pins (SDA, SCL) | -0.3 to VDD+0.3 | V |
| Input current on any pin | ±70 | mA |
| Operating temperature range | -40 to +85 | ℃ |
| Storage temperature range | -40 to +85 | ℃ |
| Max. humidity for long term exposure | 40°C dew point | |
| ESD HBM (human body model) | 2 | kv |
