Xunster XST-JDQ-SMV3.4 magnetic latching relay 20A switching capacity general power relay
XST-JDQ-SMV3.4
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:A/C relay
- Model Number:XST-JDQ-SMV3.4
- Type:POWER RELAY
- Mounting Type:Surface Mount
- Operating Temperature:-40℃~+85℃
- Output Type:AC
- Relay Type:General Purpose
- Contact Material:Silver Alloy
- Contact Resistance:100mΩ Max.(at 1A 24VDC)
- Pull-in Time:10ms Max.
- Release Time:10ms Max.
- Insulation resistance:1,000MΩ Min.(DC500V)
- Surge withstand voltage:10KV(1.2/50μs)
- Anti-vibration:10~55Hz

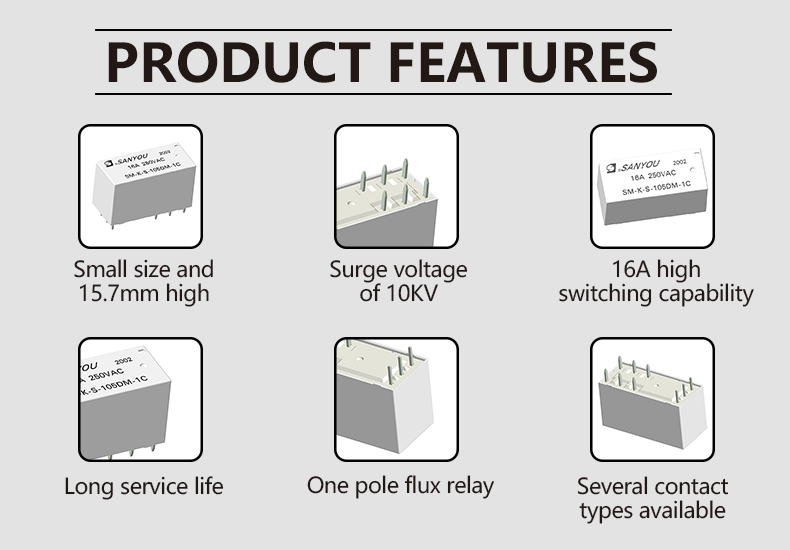

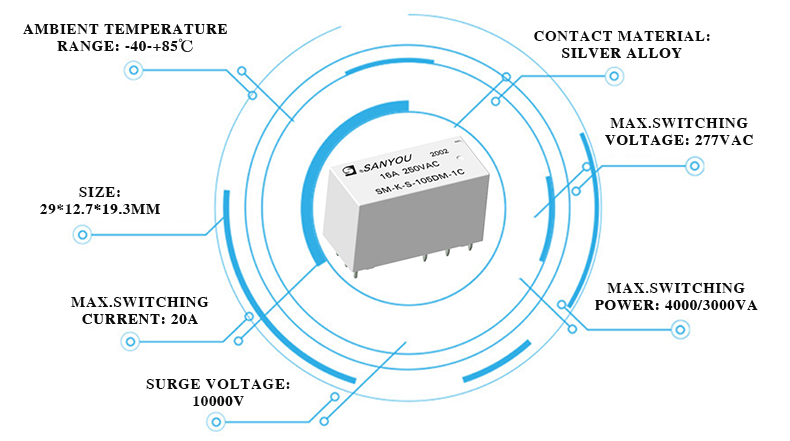

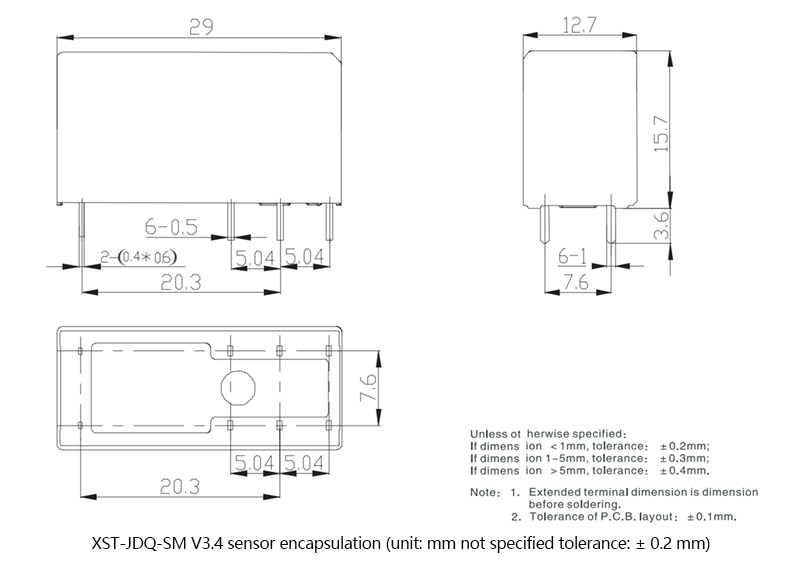

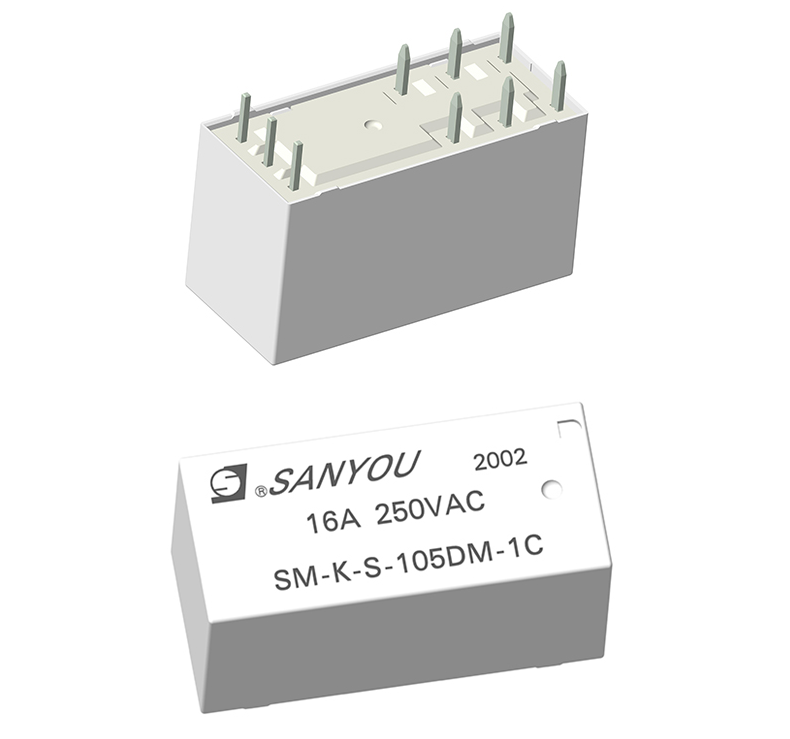

XST-JDQ-SM V3.4 is one pole flux relay with AgSnO contacts satisfice inrush current 111A/20ms. Small size and 15.7mm high with 16A high switching capability.5KV dielectric between coil and contact withstand surge voitage of 10KV. It has several contact types available. It has the characteristics of long service life, strong impact resistance and low power, etc.

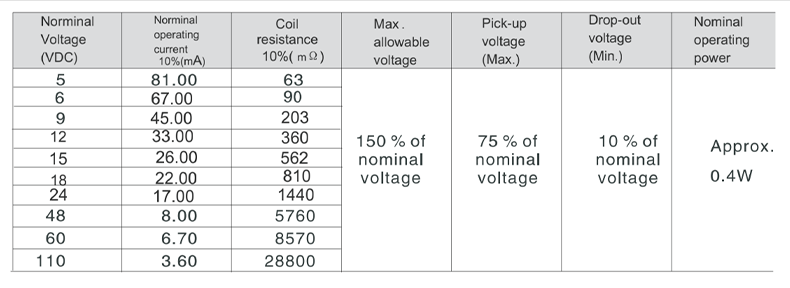

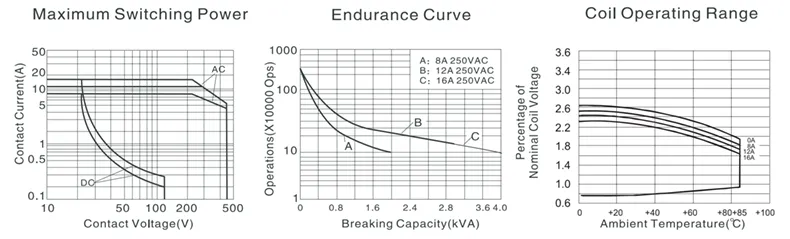

| Model | SM-1Pole | SM-2Pole |
| Nominal switching capacity(res.load) | 16A 250VAC/12A250VAC | 8A 250VAC |
| Max.switching current | 20A | 10A |
| Max.switching voltage | 277VAC | 277VAC |
| Max.switching power | 4000VA/3000VA | 2770VA |
| Contact material | Silver alloy | |
| Initial contact resistance (at 6VDC 1A) | 100mΩ Max.(1A 6VDC) | |
| Initial insulation resistance | 1,000MΩ Min.(DC500V) | |
| Endurance(operations) | Mechanical(at 10,800 ops./h) | 10,000,000 (at room temperature) |
| Electrical(at 360 ops./h) | 100,000 (at room temperature) | |
| Ambient temperature | -40℃~+85℃(no condensation) | |
