Xunster XST-DYGL-SL780 voltage regulator 35V 1A linear voltage regulator micro controller

XST-DYGL-SL7805

minimum order

1 piece

Quantity

Contact Now

add to cart

Model Number:XST-DYGL-SL7805
Type:microcontroller
Place of Origin:Guangdong, China
Brand Name:Xunster
D/C:20227805

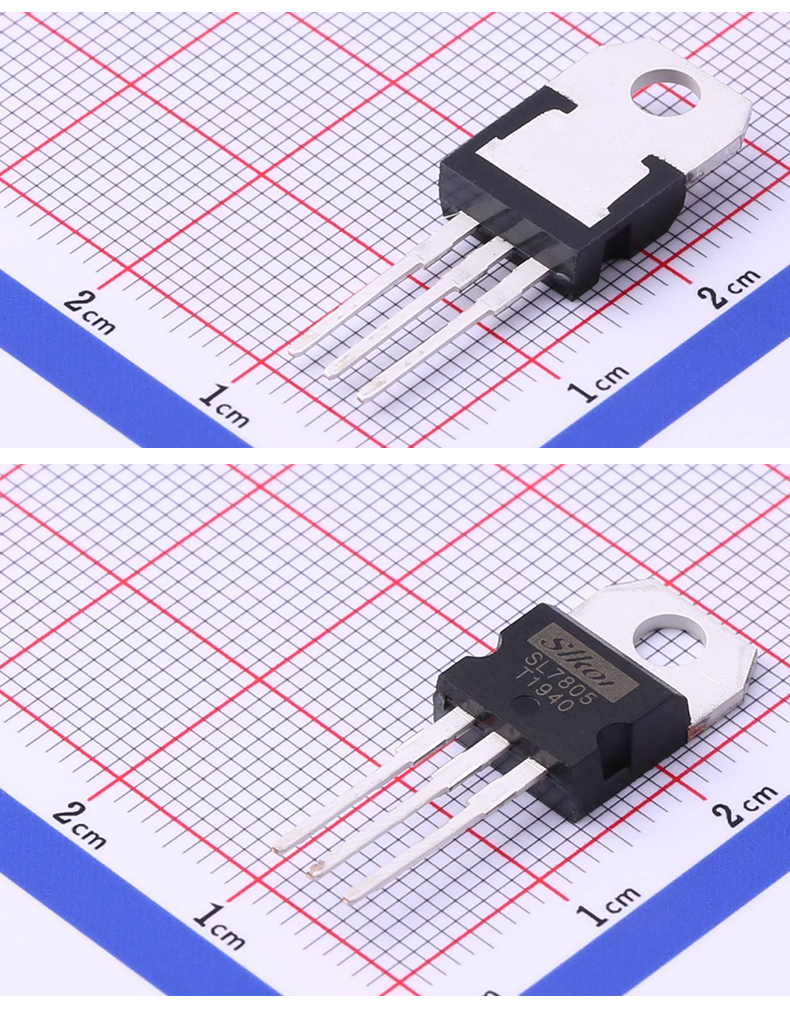

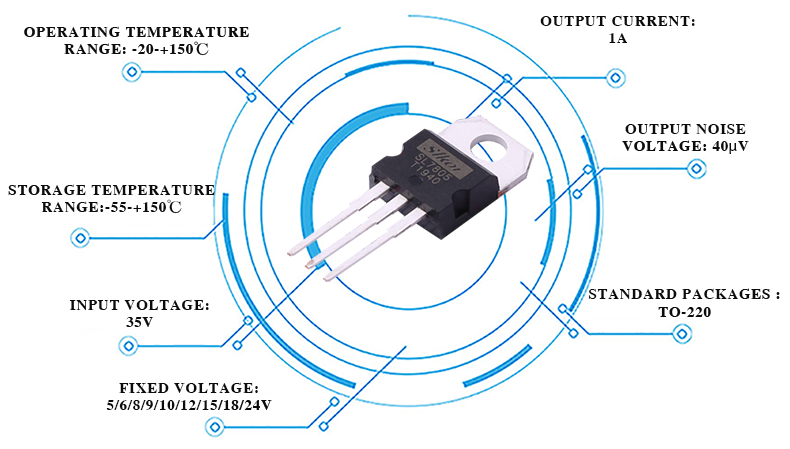

Input Voltage:35V
Output Current:1A
Power Dissipation:Internally LimitedmW
Junction Temperature:150
Operating Temperature Range:-20~150℃
Storage Temperature Range:-55~150℃
Output Voltage:4.75V
Load Regulation:25mV
Line Regulation:50mV
Quiescent Current:8.0mA

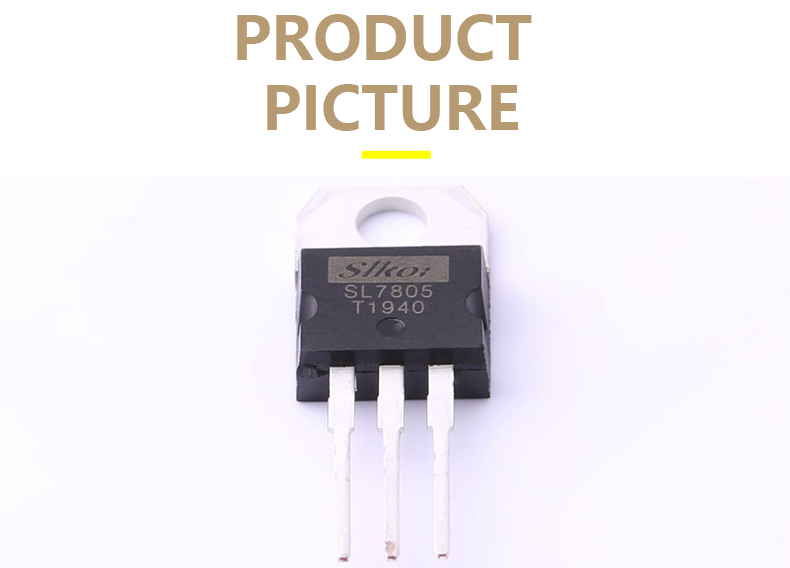

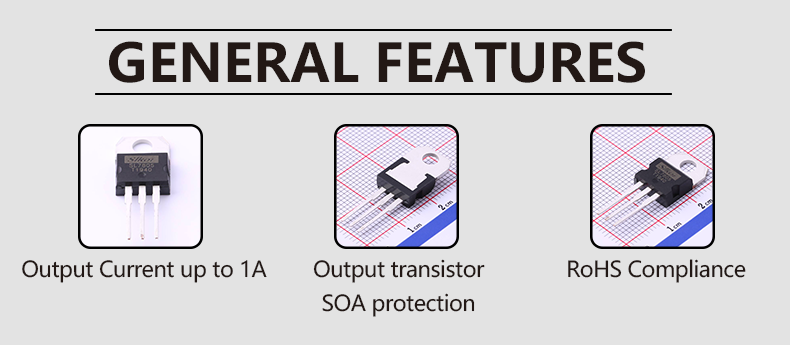

XST-DYGL-SL7805 is a series of positive voltage regulators which can provide up to 1A of output current.It is available in nine fixed voltage, 5, 6, 8, 9, 10,12,15,18 and 24V. It has the features of thermal overload shutdown protection ,short circuit current limiting ,output transistor SOA protection and RoHS Compliance.

Symbol	Description	SL7805			Unit	Test Conditions
Symbol	Description	Min.	Typ.	Max.	Unit	Test Conditions
Vout	Output Voltage	4.80	5.0	5.20	V	Iout=5mA-1.0A
Vout	Output Voltage	4.75	-	5.25	V	7.5V≤Vin≤20V, Iout=5mA-1.0A
AVout	Load Regulation	-	-	50	mV	Iout=5mA-1.0A
AVout	Load Regulation	-	-	25	mV	Iout=0.25A-0.75A
AVout	Line Regulation	-	-	50	mV	7V≤Vin≤25V
AVout	Line Regulation	-	-	50	mV	7.5V≤Vin≤20V, Iout=1.0A
Iq	Quiescent Current	-	-	8.0	mA	Iout≤1.0A
AIq	Quiescent Current Change	-	-	1.0	mA	7.5V≤Vin≤20V
AIq	Quiescent Current Change	-	-	0.5	mA	Iout=5mA-1.0A
eN	Output Noise Voltage	-	40	-	µV	10Hz≤f≤100KHz
Vo/t	Temperature coefficient of Vout	-	-0.6	-	mV/℃	Iout=5mA
RR	Ripple Rejection	62	80	-	dB	8V≤Vin≤18V, f=120Hz
Ipeak	Peak Output Current	-	1.8	-	A	-
Isc	Short-Circuit Current	-	250	-	mA	Vin=35V
Vd	Dropout Voltage	-	2.0	-	V	-

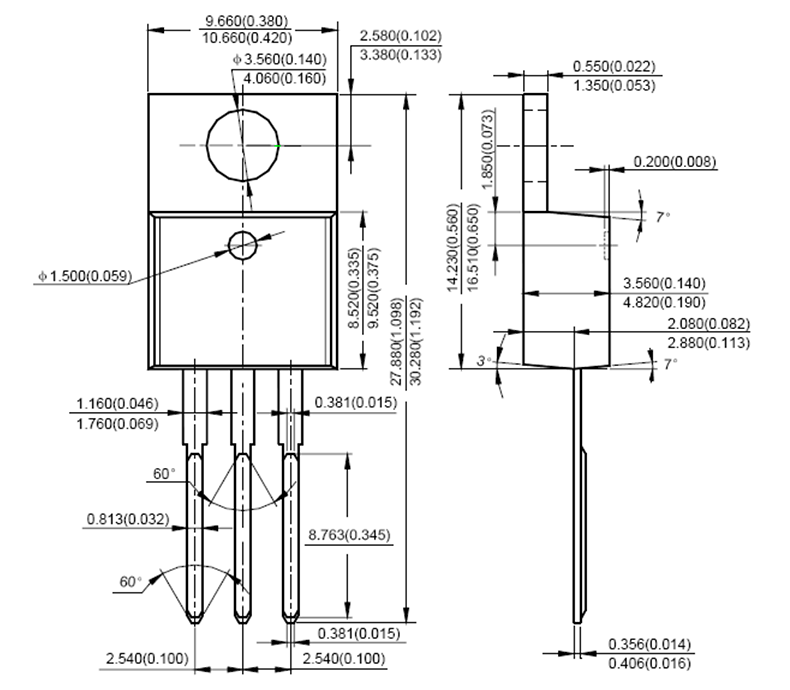

Symbol	Description		Ratings	Unit
Vin	Input Voltage	Vout=3.3~18V	35	V
Vin	Input Voltage	Vout=20~24V	40	V
Iout	Output Current		1	A
Pd	Power Dissipation	TO-220	Internally Limited	mW
Tj	Junction Temperature		150
Topr	Operating Temperature Range		-20~150	℃
Tstg	Storage Temperature Range		-55~150	℃
