Xunster 5V zener diode semiconductor transistor and diode
XST-EJG-BZT52C15
minimum order
1 piece
Quantity
- Model Number:XST-EJG-BZT52C15
- Type:Zener Diode
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Package Type:Surface Mount
- Supplier Type:Agency
- Media Available:datasheet
- PD(mW):500mW
- VZTyp(V):5.1V
- VZMin(V):13.8V
- VZMax(V):15.6V
- IZT(mA):5mA
- IR(uA)::0.1uA

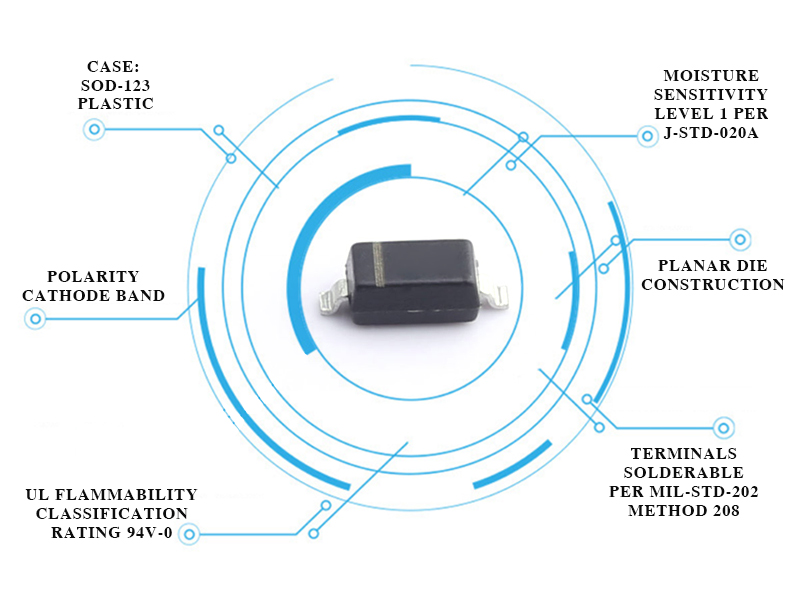

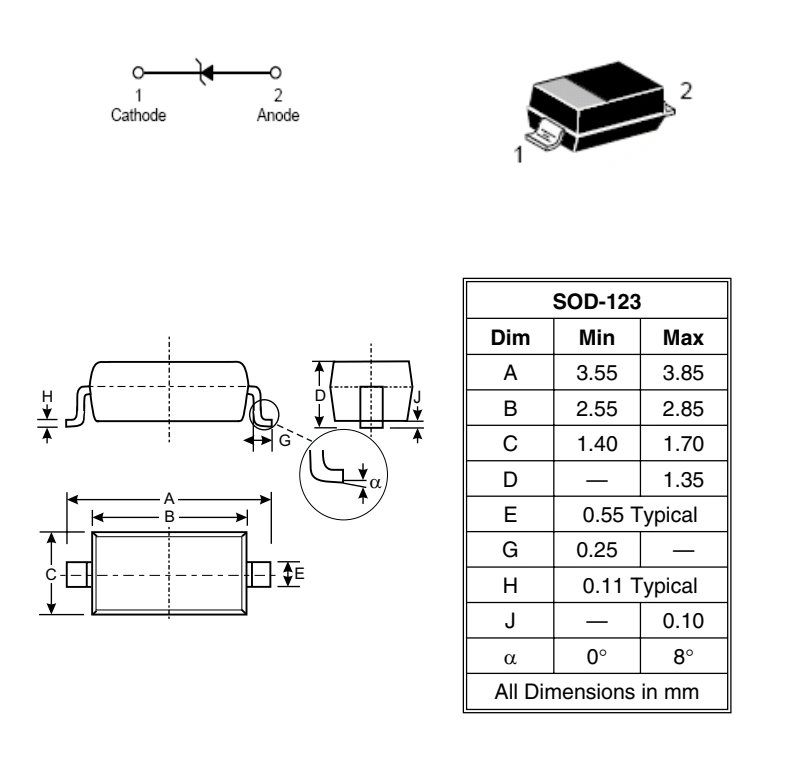

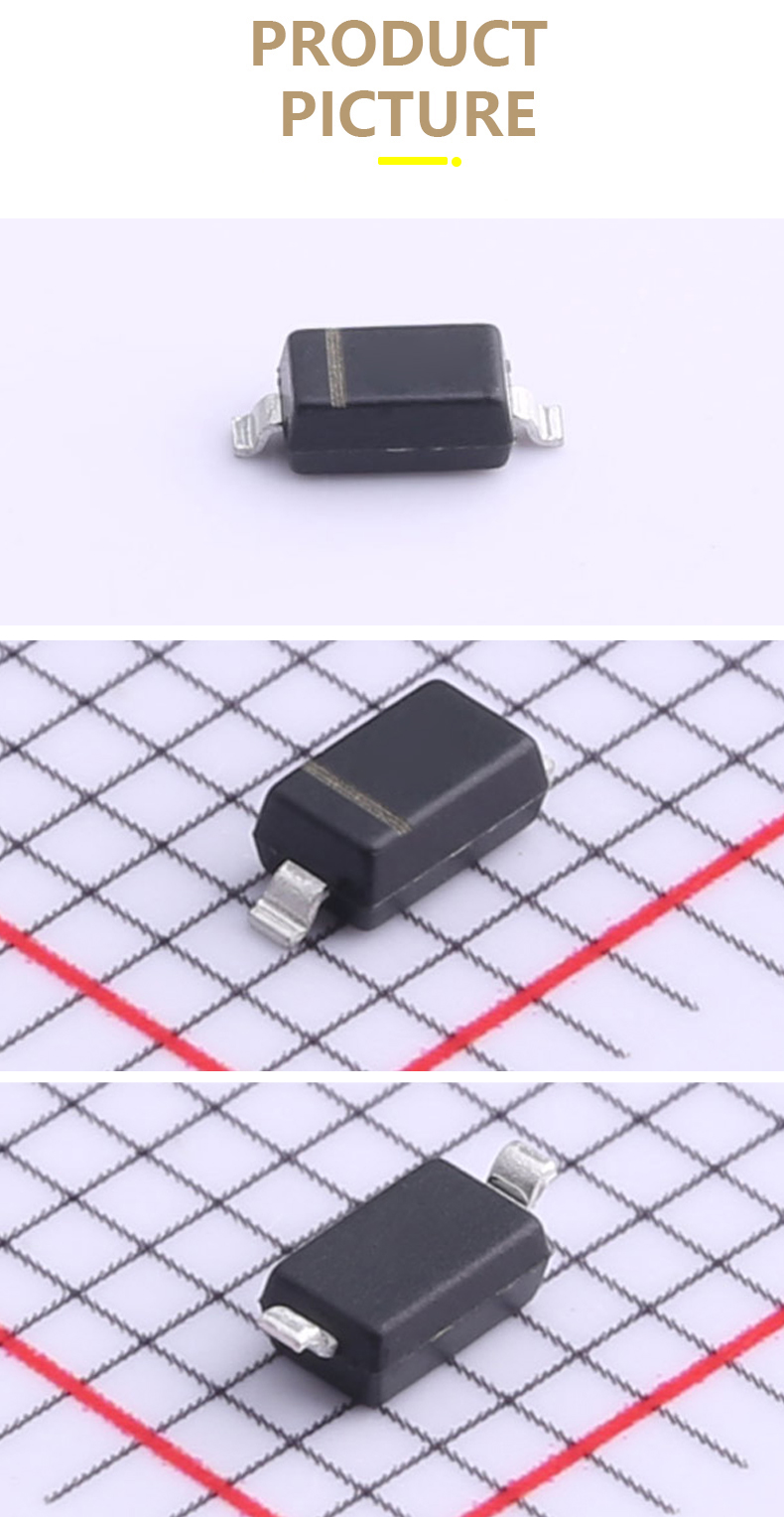

- Package:SOD-123
- Forward Voltage:0.9V
- Power Dissipation:500mW
- Temperature Range:-65 to +150℃
| Characteristic | Symbol | Value | Unit |
| Forward Voltage (Note 2) @ IF = 10mA | VF | 0.9 | V |
| Power Dissipation (Note 1) | PD | 500 | mW |
| Thermal Resistance, Junction to Ambient Air (Note 1) | RθJA | 305 | ℃/W |
| Operating and Storage Temperature Range | TJ, TSTG | -65 to +150 | ℃ |
| Notes: 1. Device mounted on ceramic PCB; 7.6mm x 9.4mm x 0.87mm with pad areas 25mm2. 2. Short duration test pulse used to minimize self-heating effect. | |||
| Type Number | Marking Code | Zener Voltage Range (Note 2) | Maximum Zener Impedance (Note 3) | Maximum Reverse Current (Note 2) | Typical Temperature Coefficient @ IZTC mV/ C | Test Current IZTC | |||||||
| Vz @IZT | IZT | ZZT @ IZT | ZZK @IZK | IZK | IR | @ VR | |||||||
| Nom (V) | Min (V) | Max (V) | mA | Ω | mA | uA | V | Min | Max | mA | |||
| BZT52C2V4 | WX | 2.4 | 2.2 | 2.6 | 5 | 100 | 600 | 1 | 50 | 1 | -3.5 | 0 | 5 |
| BZT52C2V7 | W1 | 2.7 | 2.5 | 2.9 | 5 | 100 | 600 | 1 | 20 | 1 | -3.5 | 0 | 5 |
| BZT52C3V0 | W2 | 3 | 2.8 | 3.2 | 5 | 95 | 600 | 1 | 10 | 1 | -3.5 | 0 | 5 |
| BZT52C3V3 | W3 | 3.3 | 3.1 | 3.5 | 5 | 95 | 600 | 1 | 5 | 1 | -3.5 | 0 | 5 |
| BZT52C3V6 | W4 | 3.6 | 3.4 | 3.8 | 5 | 90 | 600 | 1 | 5 | 1 | -3.5 | 0 | 5 |
| BZT52C3V9 | W5 | 3.9 | 3.7 | 4.1 | 5 | 90 | 600 | 1 | 3 | 1 | -3.5 | 0 | 5 |
| BZT52C4V3 | W6 | 4.3 | 4 | 4.6 | 5 | 90 | 600 | 1 | 3 | 1 | -3.5 | 0 | 5 |
| BZT52C4V7 | W7 | 4.7 | 4.4 | 5 | 5 | 80 | 500 | 1 | 3 | 2 | -3.5 | 0.2 | 5 |
| BZT52C5V1 | W8 | 5.1 | 4.8 | 5.4 | 5 | 60 | 480 | 1 | 2 | 2 | -2.7 | 1.2 | 5 |
| BZT52C5V6 | W9 | 5.6 | 5.2 | 6 | 5 | 40 | 400 | 1 | 1 | 2 | -2 | 2.5 | 5 |
| BZT52C6V2 | WA | 6.2 | 5.8 | 6.6 | 5 | 10 | 150 | 1 | 3 | 4 | 0.4 | 3.7 | 5 |
| BZT52C6V8 | WB | 6.8 | 6.4 | 7.2 | 5 | 15 | 80 | 1 | 2 | 4 | 1.2 | 4.5 | 5 |
| BZT52C7V5 | WC | 7.5 | 7 | 7.9 | 5 | 15 | 80 | 1 | 1 | 5 | 2.5 | 5.3 | 5 |
| BZT52C8V2 | WD | 8.2 | 7.7 | 8.7 | 5 | 15 | 80 | 1 | 0.7 | 5 | 3.2 | 6.2 | 5 |
| BZT52C9V1 | WE | 9.1 | 8.5 | 9.6 | 5 | 15 | 100 | 1 | 0.5 | 6 | 3.8 | 7 | 5 |
| BZT52C10 | WF | 10 | 9.4 | 10.6 | 5 | 20 | 150 | 1 | 0.2 | 7 | 4.5 | 8 | 5 |
| BZT52C11 | WG | 11 | 10.4 | 11.6 | 5 | 20 | 150 | 1 | 0.1 | 8 | 5.4 | 9 | 5 |
| BZT52C12 | WH | 12 | 11.4 | 12.7 | 5 | 21 | 150 | 1 | 0.1 | 8 | 6 | 10 | 5 |
| Notes: 1. Device mounted on ceramic PCB; 7.6mm x 9.4mm x 0.87mm with pad areas 25mm2. 2. Short duration test pulse used to minimize self-heating effect. 3. f = 1kHz. | |||||||||||||
