Xunster small size PCB mounting relay power relay 12A dielectric strength 5000V
XST-JDQ-SMI V2.5
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Power Relay
- Model Number:XST-JDQ-SMI V2.5
- Type:POWER RELAY
- Switching Voltage:12A
- Mounting Type:Surface Mount
- Operating Temperature:-40℃~+105℃
- Output Type:AC
- Relay Type:General Purpose
- Contact Material:Silver Alloy
- Contact Resistance:100mΩ Max.(1A 6VDC)
- Pull-in Time:15msec
- Release Time:5msec
- Weight:about13.5g
- current:12A
- switching power:3324VA

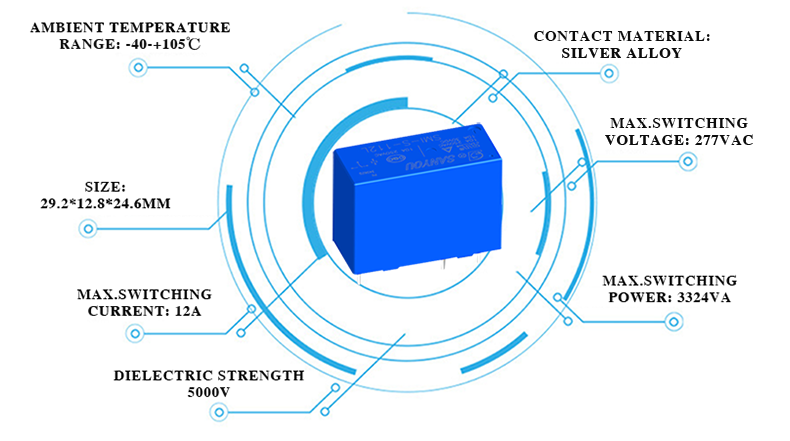

XST-JDQ-SMI V2.5 is a small size for density PCB mounting.Its dielectric strength is 5,000V. It has UL,C-UL,TUV,CQC and other certifications. It has the characteristics of long service life, strong impact resistance and wide temperature range, etc.
| Model | SMI-1Pole | SMI-2Pole |
| Nominal switching capacity(res.load) | 12A 277VAC/10A 250VAC | 8A 277VAC/5A 250VAC |
| Max.switching current | 12A | 8A |
| Max.switching voltage | 277VAC | 277VAC |
| Max.switching power | 3324VA | 2216VA |
| Contact material | Silver alloy | |
| Initial contact resistance (at 6VDC 1A) | 100mΩ Max.(1A 6VDC) | |
| Initial insulation resistance | 1,000MΩ Min.(DC500V) | |
| Endurance(operations) | Mechanical(at 10,800 ops./h) | 5,000,000 cycles (at room temperature) |
| Electrical(at 360 ops./h) | 100,000 cycles(at room temperature) | |
| Ambient temperature | -40℃~+105℃, no condensation | |
