Xunster general purpose relay
XST-JDQ-SFKV3.0
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:miniature relay
- Model Number:XST-JDQ-SFKV3.0
- Type:POWER RELAY
- Mounting Type:Surface Mount
- Operating Temperature:-40℃~+85℃
- Output Type:AC
- Relay Type:General Purpose
- Contact Material:Silver Alloy
- Contact Resistance:100mΩ Max.(1A 6VDC)
- Pull-in Time:20msec. Max. (without diode)
- Release time:10msec. Max. (without diode)
- Insulation Resistance:1,000MΩ Min.(DC500V)
- Weight:about 22.0g

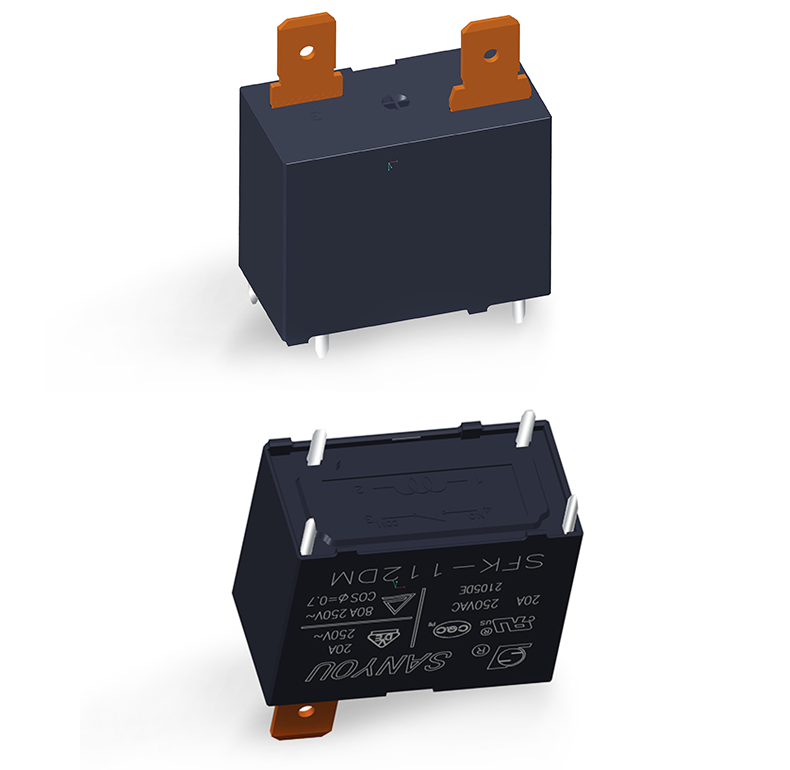

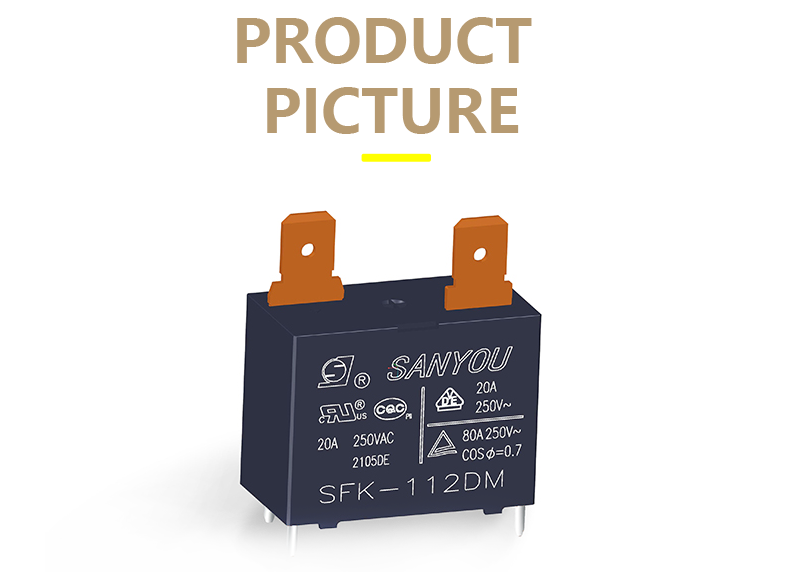

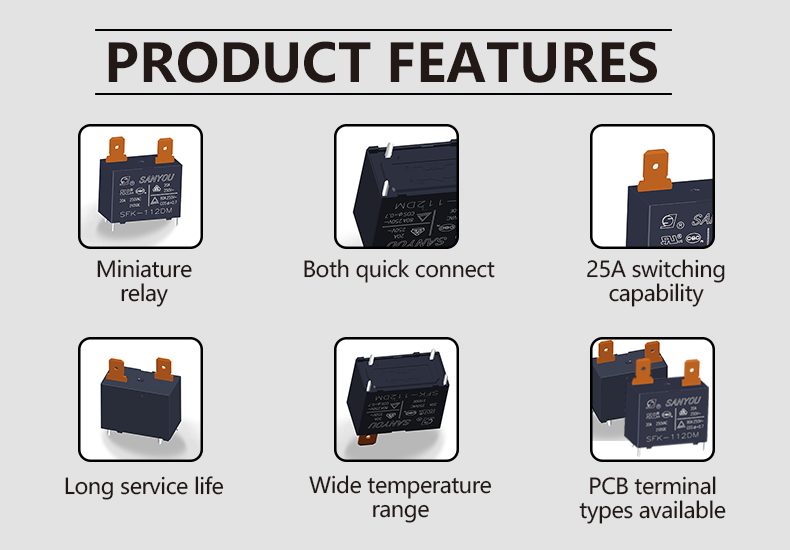

XST-JDQ-SFK V3.0 is a miniature relay with 25A high switching capability,especialy suitable for motor and compressor control.Both quick connect and PCB terminal types available.It has UL,C-UL,VDE,TUV,CQC and other certifications. It has the characteristics of long service life, strong impact resistanceand wide temperature range, etc.

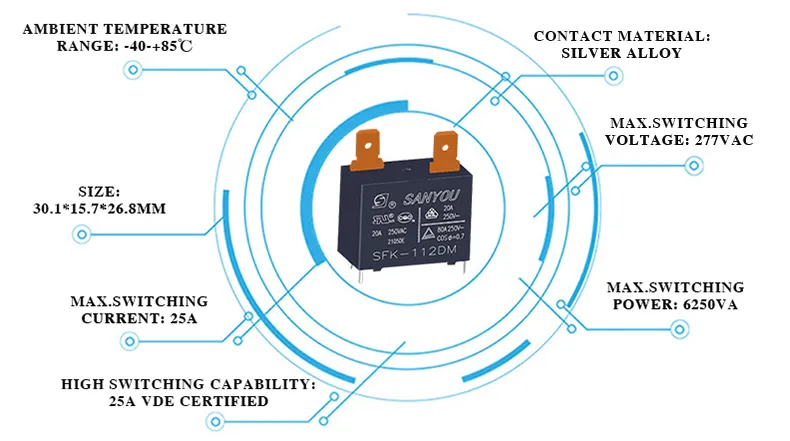

| Model | SFK |
| Nominal switching capacity(res.load) | 20/25A 250VAC |
| Max.switching current | 25A |
| Max.switching voltage | 277VAC |

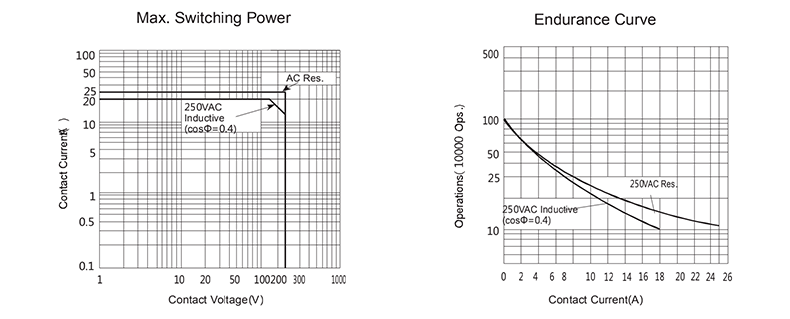

| Max.switching power | 6250VA |
| Contact material | Silver alloy |
| Initial contact resistance (at 6VDC 1A) | 100mΩ Max.(1A 6VDC) |
| Initial insulation resistance | 1,000MΩ Min.(DC500V) |
| Endurance(operations) | Mechanical(at 7,200 ops./h) |
| Electrical(at 360 ops./h) | |
| Ambient temperature | -40℃~+85℃, no condensation |
