Xunster 5A relay air conditioning general purpose relay for PCB
XST-JDQ-SJ-M5AV2.5
XST-JDQ-SJ-M(5A)V2.5 Advanced DEC DQ1U technology and production line was introduced into from Japan.
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:A/C RELAY
- Model Number:XST-JDQ-SJ-M5AV2.5
- Type:POWER RELAY
- Switching Voltage:277VAC
- Mounting Type:Surface Mount
- Operating Temperature:-40℃~+105℃
- Output Type:AC
- Voltage - Input:1385VA
- Relay Type:General Purpose
- Nominal switching capacity(res.load):5A 250VAC
- Max.switching current:5A
- Contact material:Silver alloy
- Initial contact resistance (at 6VDC 1A):100mΩ Max.(1A 6VDC)
- Initial insulation resistance:1,000mΩ Min.(DC500V)

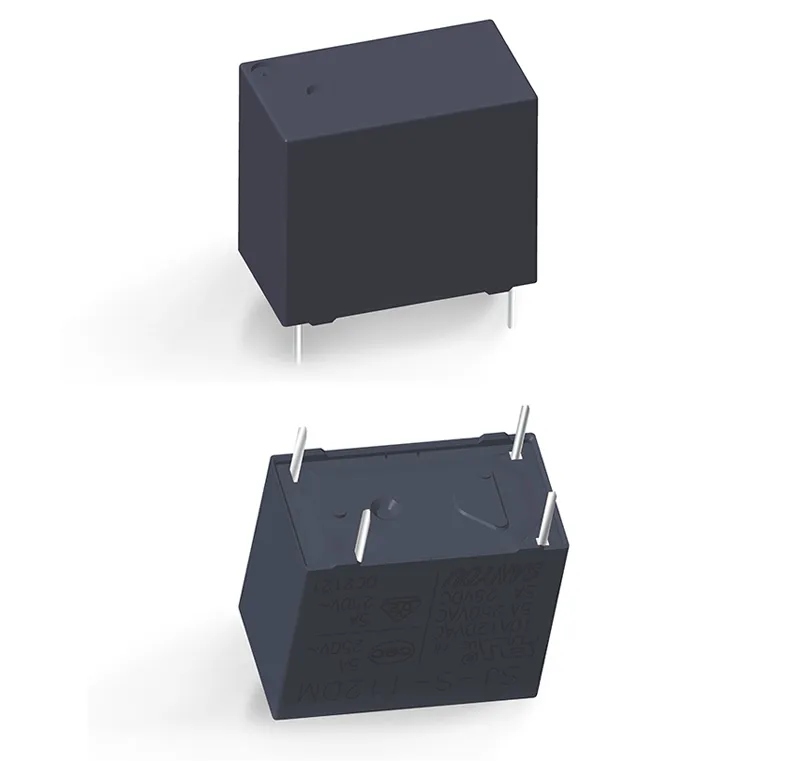

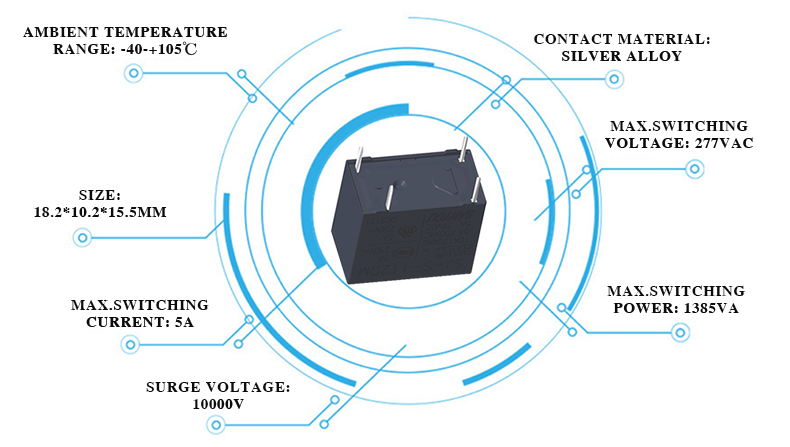

XST-JDQ-SJ-M(5A)V2.5 Advanced DEC DQ1U technology and production line was introduced into from Japan.Smallsize (18.2x10.2x15.5 mm) with 5A switching capability for high density PCB mounting.It has UL, c-ul, VDE, CQC, TUV and other certifications. It has the characteristics of long service life, strong impact resistance and low power, etc.
| Model | SJ-DM | SJ-LM |
| Nominal switching capacity(res.load) | 5A 250VAC | 3A 250VAC |
| Max.switching current | 5A | 5A |
| Max.switching voltage | 277VAC | 277VAC |
| Max.switching power | 1385VA | 1385VA |
| Contact material | Silver alloy | |
| Initial contact resistance (at 6VDC 1A) | 100mΩ Max.(1A 6VDC) | |
| Initial insulation resistance | 1,000mΩ Min.(DC500V) | |
| Endurance(operations) | Mechanical(at 10,800 ops./h) | 10,000,000 (at room temperature) |
| Electrical(at 360 ops./h) | 100,000 (at room temperature) | |
| Ambient temperature | -40℃~+105℃(no condensation) | |
