Xunster 2V 3V 5V surface mount diodes transistor and diode semiconductor
XST-EJG-SLSOT05C
minimum order
1 piece
Quantity
- Model Number:XST-EJG-SLSOT05C
- Type:Other
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Package Type:Surface Mount
- Supplier Type:Agency
- Media Available:datasheet
- Peak Pulse Power:350W
- Storage Temperature Range:-55 to +155°C
- Operating Temperature Range:-40 to +125°C
- Junction temperature:150°C
- VRWM(V):5V
- VBR min(V):6V
- IR(A):1μA
- VC(V):7.4V
- CJ(pF):30pF

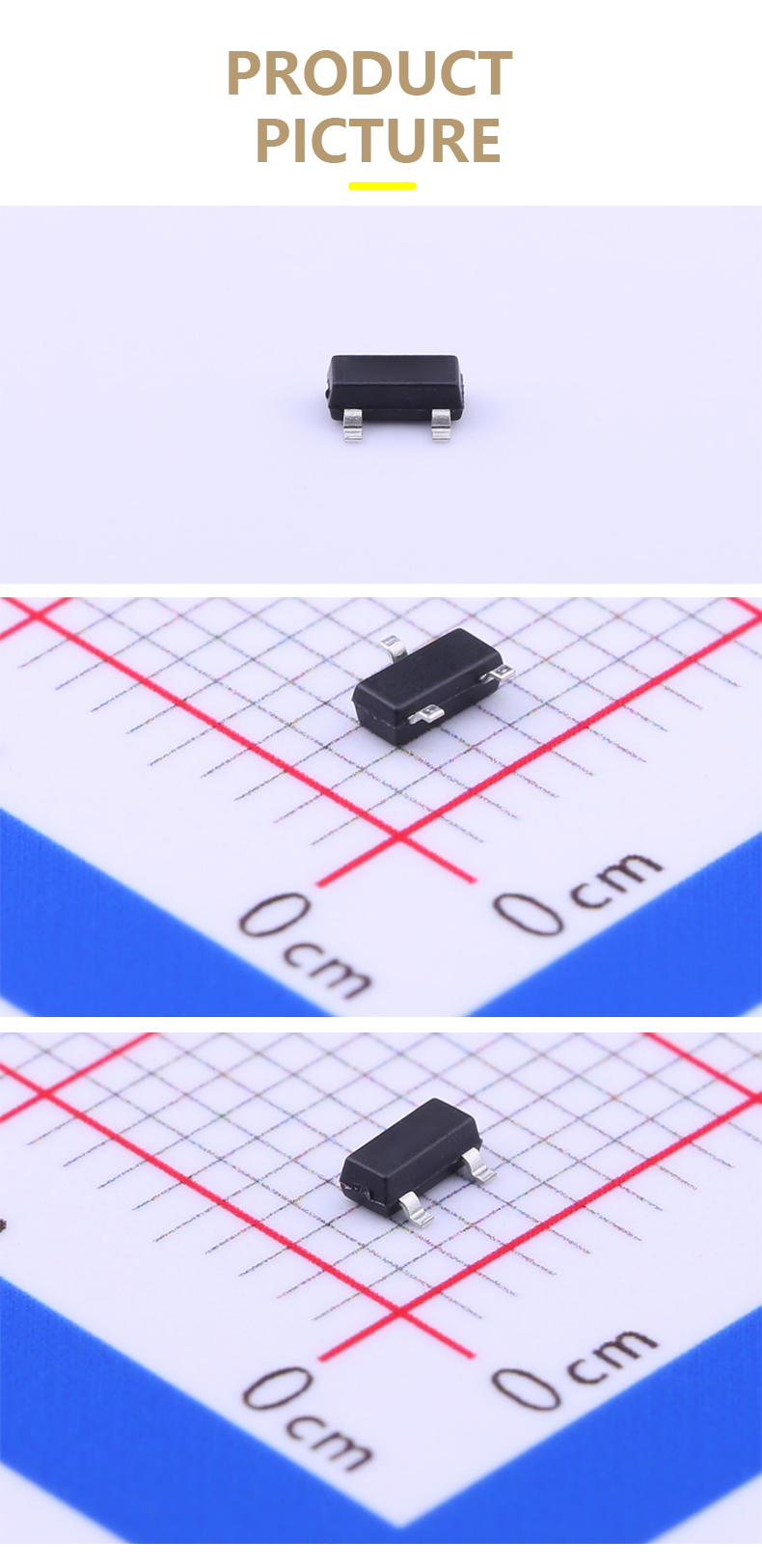

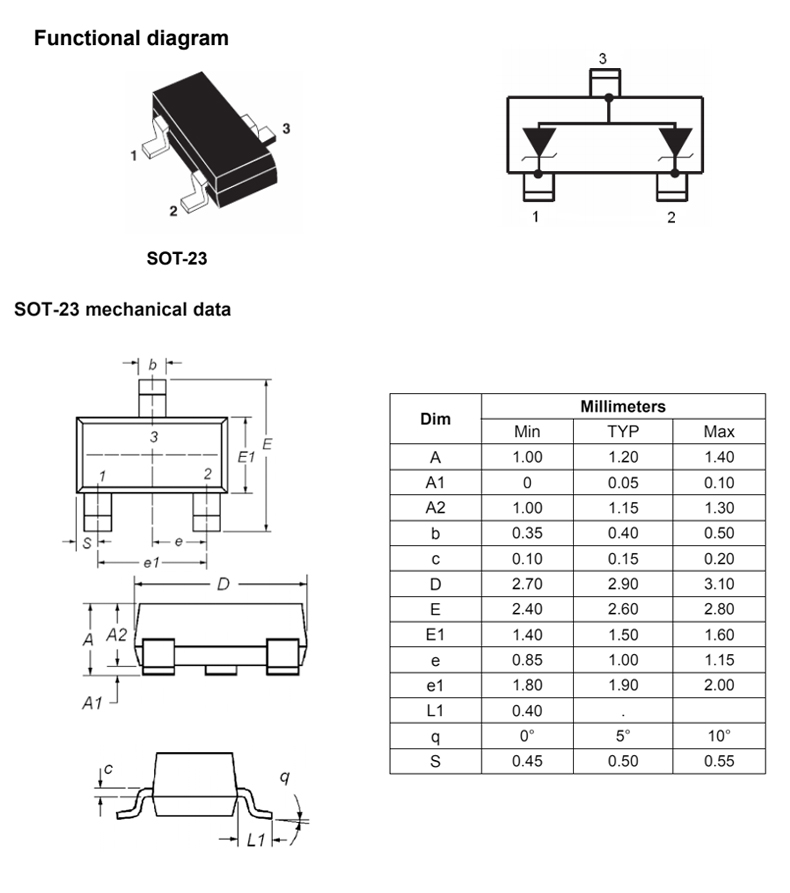

- Package:SOT-23

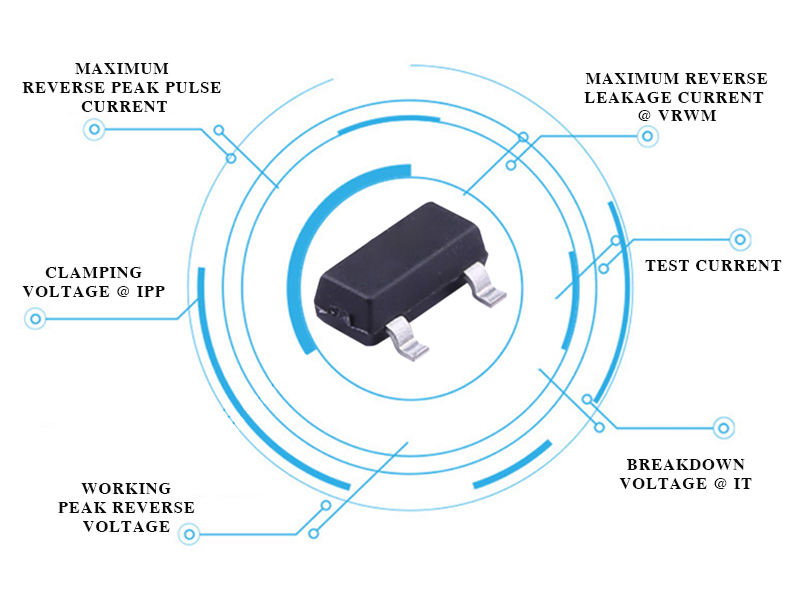

| Part Numbers | VBR | IT | VRWM | IR | C | ||
| Min. | Typ. | Max. | Typ. 0v bias | ||||
| V | V | V | mA | V | µA | pF | |
| SLSOT04C | 5 | 5.6 | 6.2 | 1 | 4 | 1 | 30 |
| SLSOT05C | 6 | 6.7 | 7.4 | 1 | 5 | 1 | 30 |
| SLSOT12C | 13.3 | 14 | 14.7 | 1 | 12 | 1 | 25 |
| SLSOT15C | 16.7 | 17.4 | 18.1 | 1 | 15 | 1 | 25 |
| SLSOT24C | 26.7 | 28.2 | 29.6 | 1 | 24 | 1 | 20 |
| 1).8/20 waveform used. (see fig2.) | |||||||
| Symbol | Parameter | Value | Unit |
| PPP | Peak Pulse Power (tp= 8/20μs) | 350 | W |
| TL | Maximum lead temperature for soldering during 10s | 260 | °C |
| Tstg | Storage Temperature Range | -55 to +155 | °C |
| Top | Operating Temperature Range | -40 to +125 | °C |
| Tj | Maximum junction temperature | 150 | °C |
| VPP | Electrostatic discharge | 15 8 | kV |
| IEC61000-4-2 air discharge | |||
| IEC61000-4-2 contact discharge |
