Xunster 12A power relay microminiature relay for washing machine
XST-JDQ-SRD(I) LV2.3
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Power relay
- Model Number:XST-JDQ-SRD(I) LV2.3
- Type:POWER RELAY
- Mounting Type:Surface Mount
- Output Type:AC

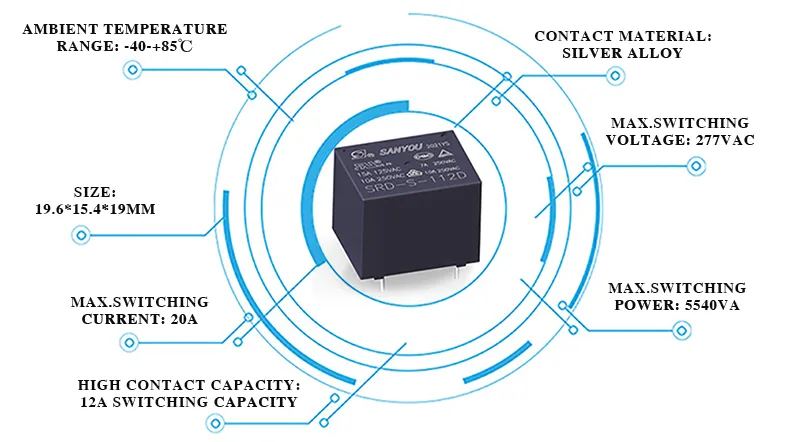

- Nominal switching capacity(res.load):12A 250VAC
- Max.switching current:20A
- Max.switching voltage:277VAC
- Max.switching power:5540VA
- Contact material:Silver alloy
- Initial contact resistance (at 6VDC 1A):100mΩ Max.(1A 6VDC)
- Initial insulation resistance:1,000MΩ Min.(DC500V)

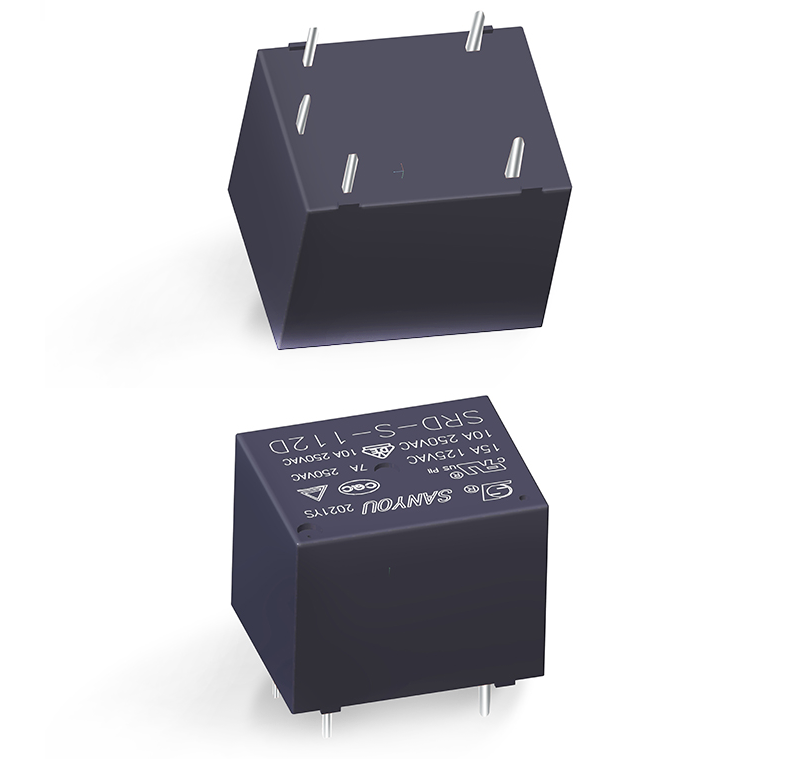

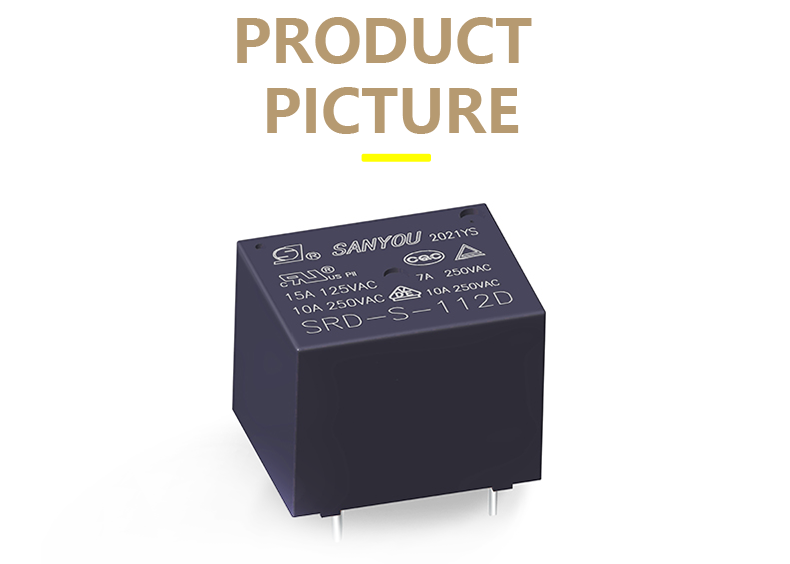

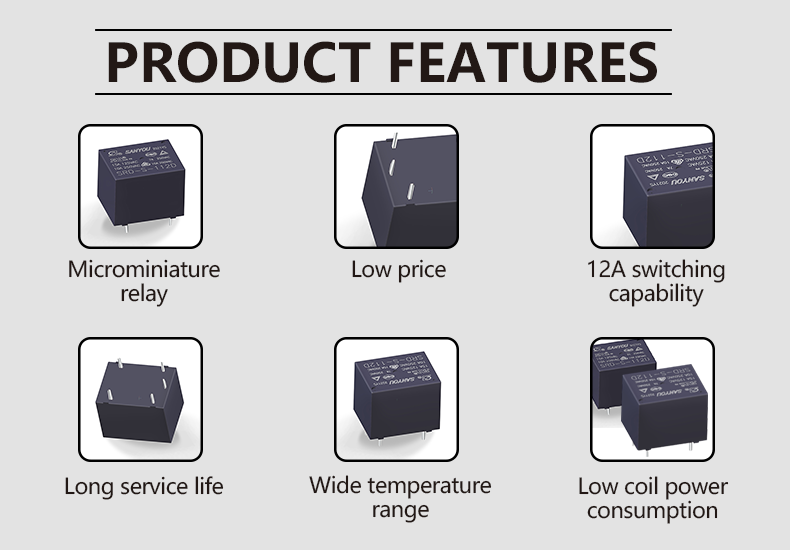

,XST-JDQ-SRD(I) LV2.3 is a microminiature relay, standard PCB terminal, with 12A high switching capability, compliance with RoHS and requirement for White Goods. It has the characteristics of low coil power consumption and low price, long service life, strong impact resistance and wide temperature range, etc.
| Model | SRD(I)-DM-L | SRD(I)-D-L |
| Nominal switching capacity(res.load) | 12A 250VAC | NO12A 277VAC NO/NC7A 277VAC |
| Max.switching current | 20A | 20A |
| Max.switching voltage | 277VAC | 277VAC |
| Max.switching power | 5540VA | 5540VA |
| Contact material | Silver alloy | |
| Initial contact resistance (at 6VDC 1A) | 100mΩ Max.(1A 6VDC) | |
| Initial insulation resistance | 1,000MΩ Min.(DC500V) | |
| Endurance(operations) | Mechanical(at 10,800 ops./h) | 10,000,000 cycles (at room temperature) |
| Electrical(at 360 ops./h) | 100,000 cycles (at room temperature) | |
| Ambient temperature | -40℃~+105℃, no condensation | |
