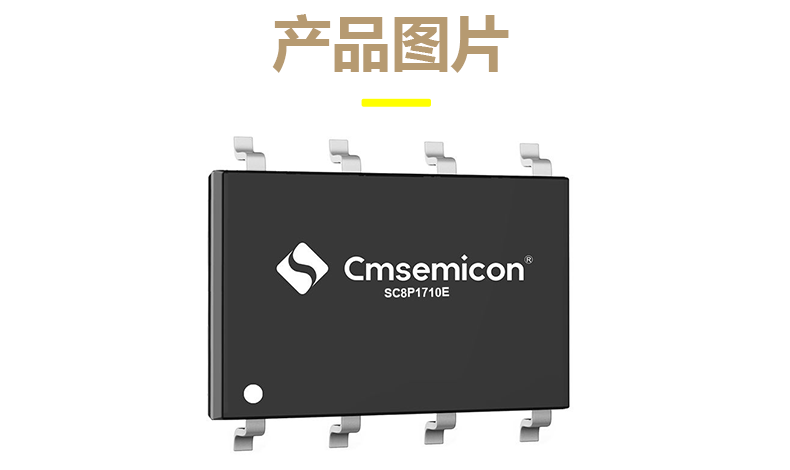

XST-MCU-SC8P1712C single-chip microcomputer semiconductor OTP ADC chip that supports C

• Model Number:XST-MCU-SC8P1712C
• Type:microcontroller
• Place of Origin:Guangdong, China
• Brand Name:xunster
• D/C:202217712
• Brand:microcontroller
• working voltage:5.5V
• working current:3mA
• quiescent current:10pA
• low level input voltage:0.3VD V
• high level input voltage:0.7VDD V
• high level output voltage:0.9VDD V
• low level output voltage:0.1VDD V
• The AD port input voltage:VDD V
• Operating voltage of the AD module:5.5 V
• Internal fixed reference voltage:1.212 V

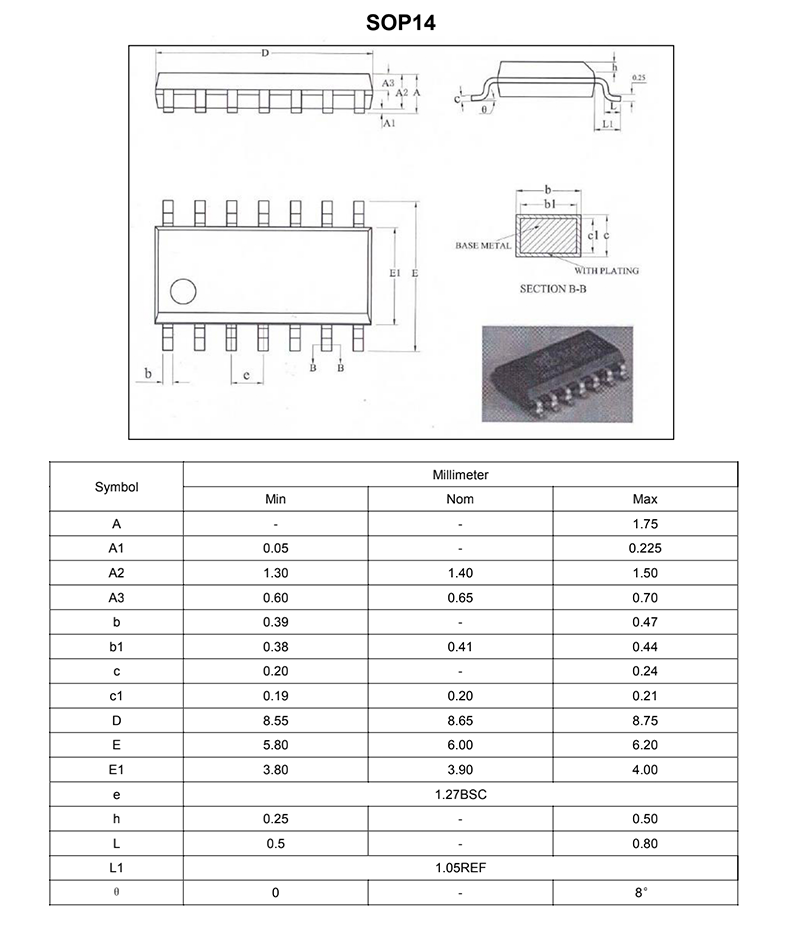

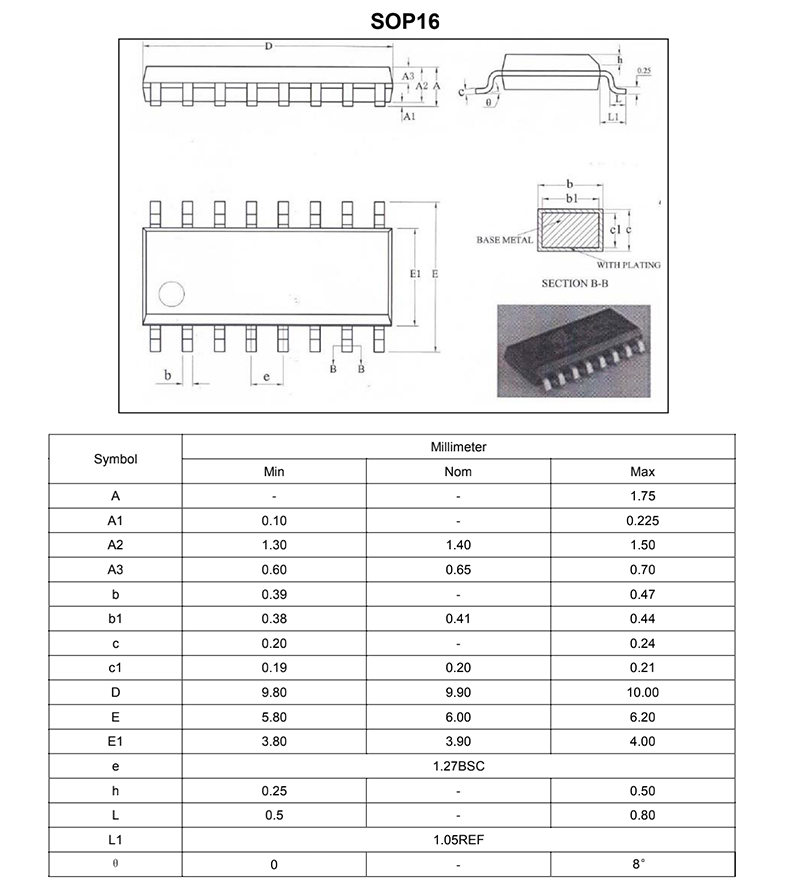

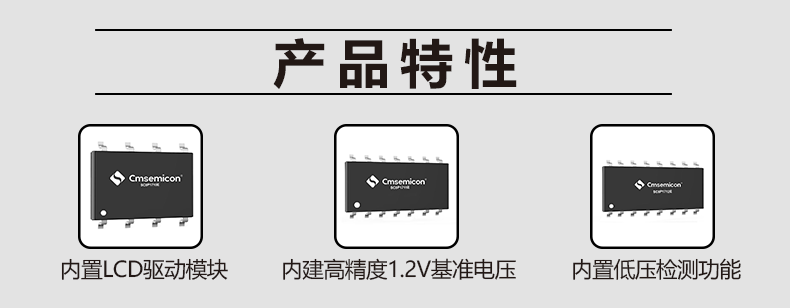

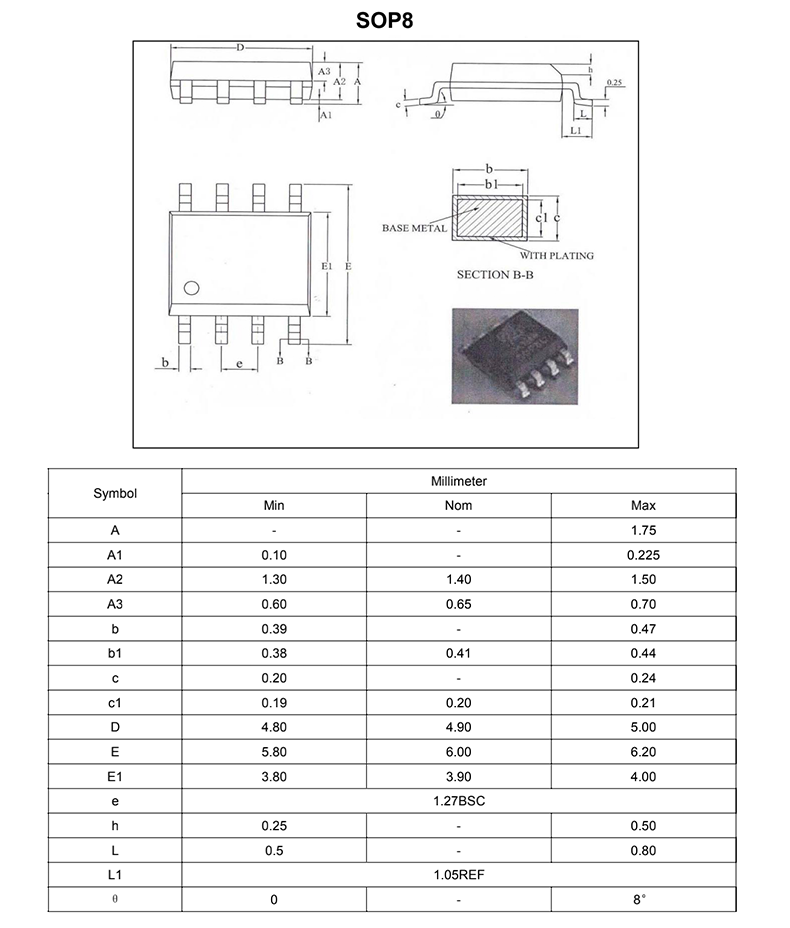

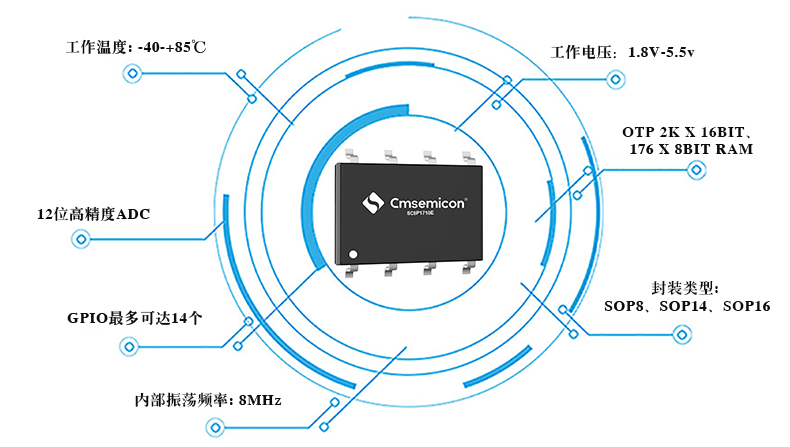

XST-MCU-SC8P171xC is a semiconductor OTP ADC chip that supports C. It supports internal RC oscillations 8MHz and external XT crystal oscillator 8MHz, operating voltage 2.2V-5.5V, and up to 18 GPIOs. Built-in LVD modules, WDT and LCD, there are additional Strong capture, comparison and PWM module, high-precision 12-bit ADC and 16-bit/8-bit timer. Industrial-grade standard design, which can work from -40°C to 85°C, provides SOP8, SOP14, SOP16 and SSOP20 packages.
