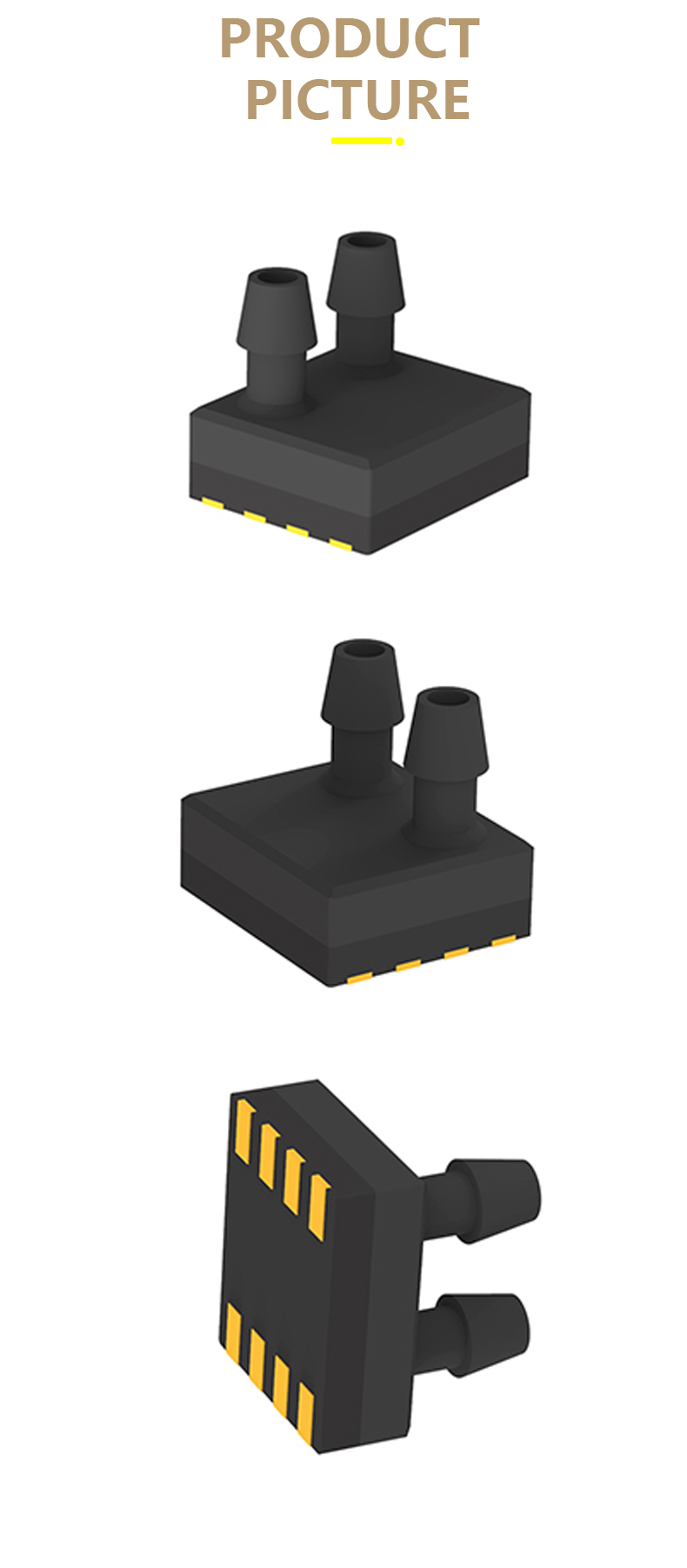

XST-LL-ADP1000 digital differential pressure sensor 500Pa air flow sensor
XST-LL-ADP1000
minimum order
1 piece
Quantity
- Model Number:XST-LL-ADP1000
- Type:AIR FLOW SENSOR
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Output:I²C
- Description:Air flow sensor
- Working voltage:3.2~3.4V
- Working current:<45mA
- Measurement range:-500~+500Pa
- Accuracy:±3% Readings
- Response time:5ms

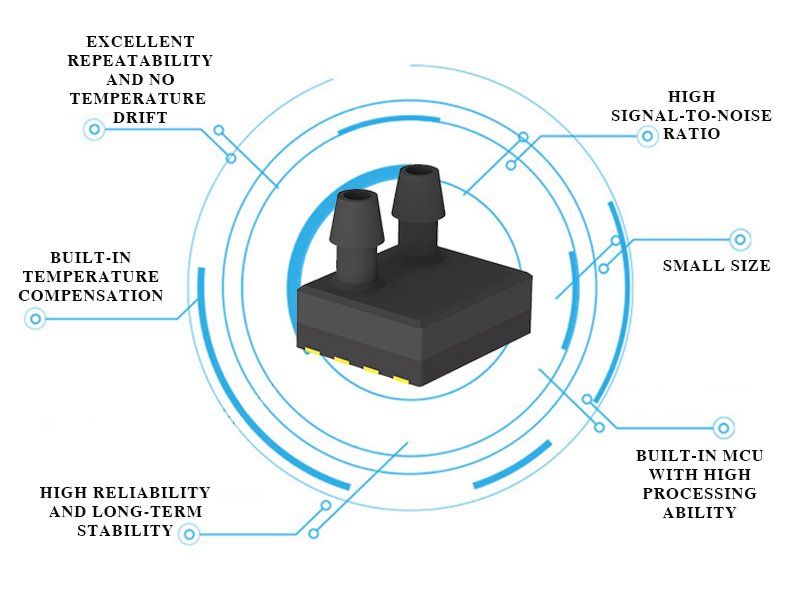

The ADP1000 sensor is a digital differential pressure sensor with an internal thermal sensor element which measures the differential pressure across the gas. The sensor can measure the differential pressure of air, nitrogen and oxygen with no drift and
high precision. Its differential pressure range is -500 to +500Pa, and it also has excellent accuracy at low differential pressures.
| Parameter | XST-LL-ADP1000 |
| Working voltage | 3.2~3.4V |
| Working current | <45mA |
| Measurement range | -500~+500Pa |
| Accuracy | ±3% Readings |
| Response time | 5ms |
