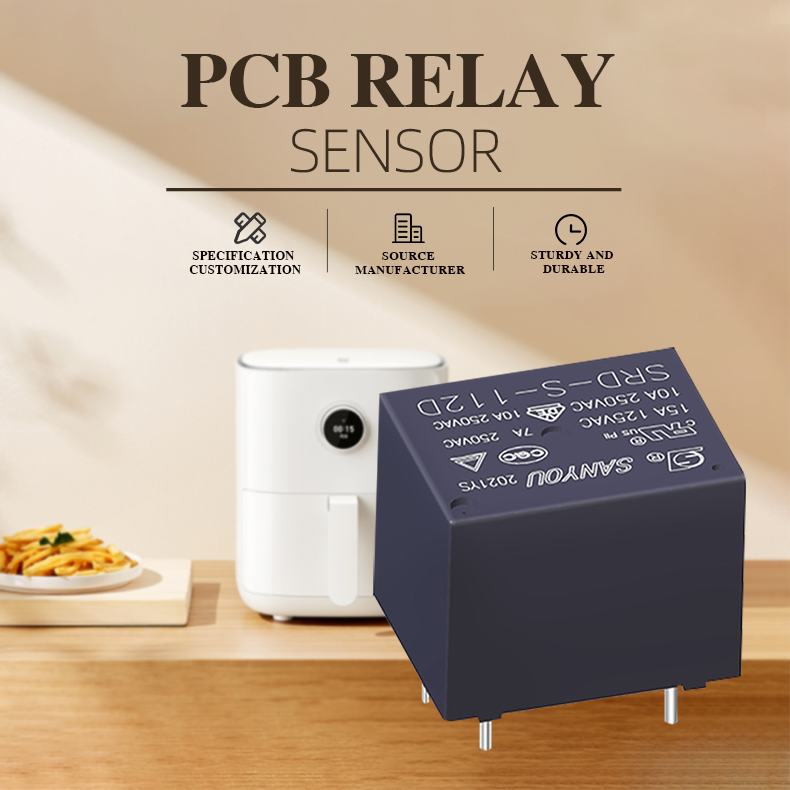

XST-JDQ-SRDV3.4 general power relay SRD-series Inquiry consultation relay for AirFryer
XST-JDQ-SRD V3.4
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Relay
- Model Number:XST-JDQ-SRD V3.4
- Type:POWER RELAY
- Output Type:DC
- High contact capability:12A switching capability
- Contact Material:Silver Alloy
- Contact Resistance:8msec. Max. (no diode)
- Release Time:5msec. Max. (no diode)
- no diode:1,000MΩ Min.(DC500V)
- Unit weight:Approx. 8.5 g

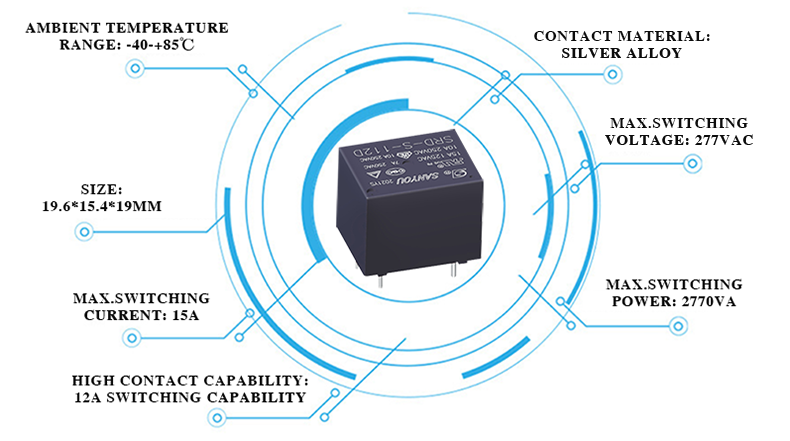

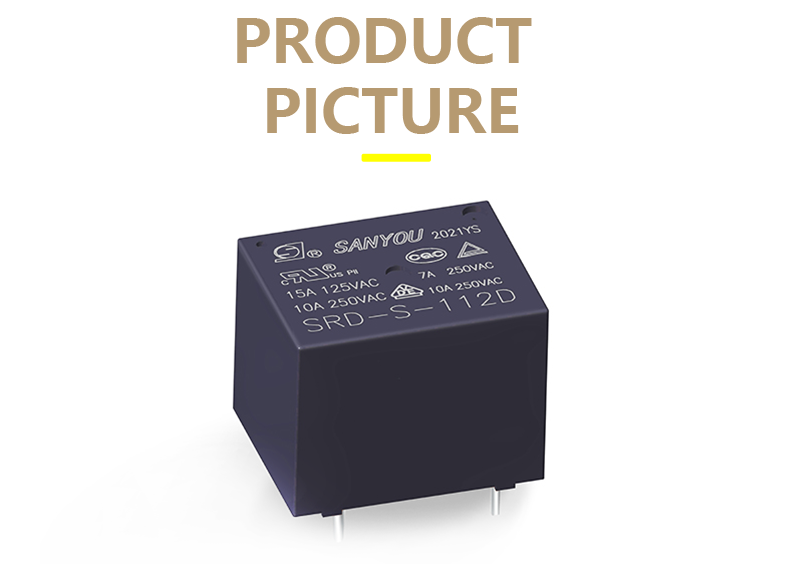

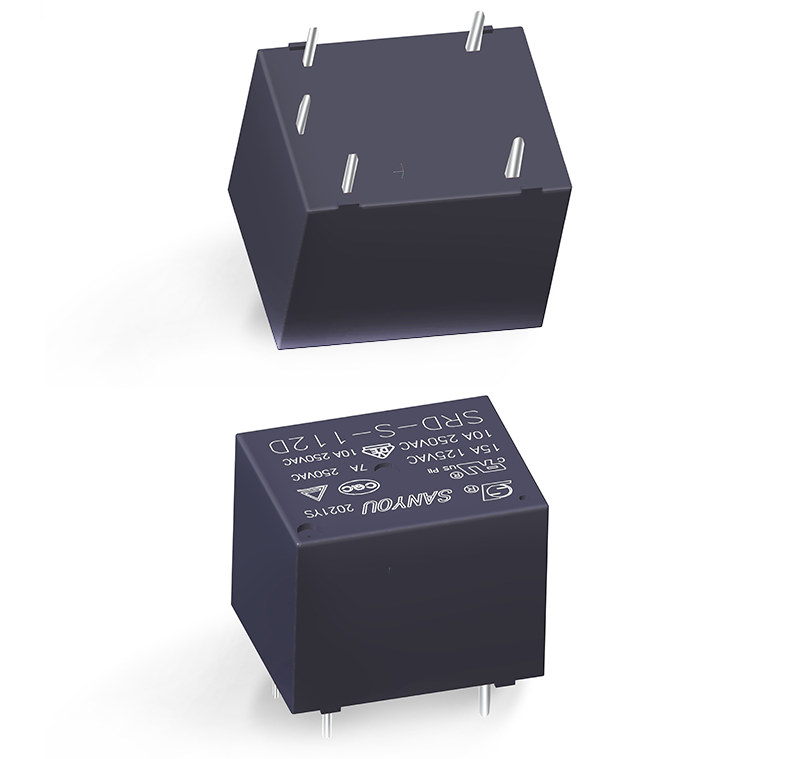

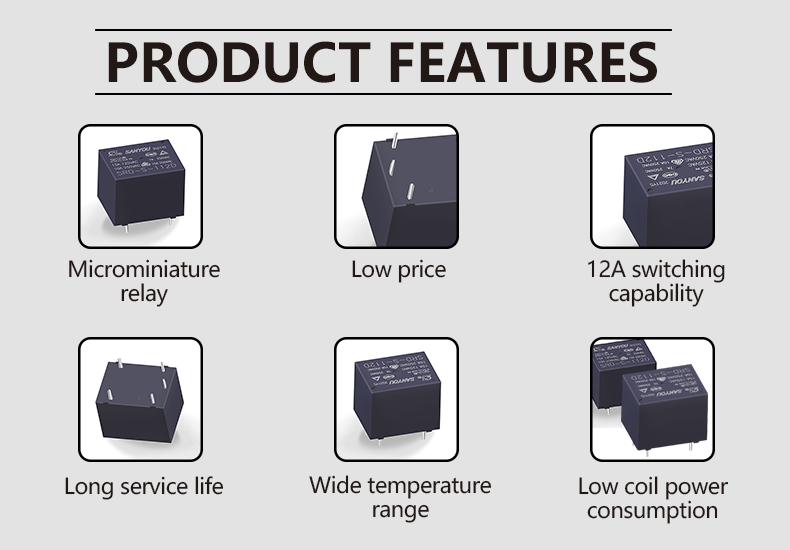

XST-JDQ-SRD V3.4 is a microminiature relay,standard PCB terminal, with 12A high switching capability. It has UL,C-UL,TUV,CQC and other certifications. It has the characteristics of low price, low coil power consumption, long service life, strong impact resistance and wide temperature range, etc.
| Model | SRD-DM | SRD-D | SRD-DB |
| Nominal switching capacity(res.load) | 10A 250VAC | NO10A 250VAC NO/NC7A 250VAC | 7A 250VAC |
| Max.switching current | 15A | 12A | 12A |
| Max.switching voltage | 277VAC | 277VAC | 277VAC |
| Max.switching power | 2770VA | 2770VA | 1939VA |
| Contact material | Silver alloy | ||
| Initial contact resistance (at 6VDC 1A) | 100mΩ Max.(1A 6VDC) | ||
| Initial insulation resistance | 1,000MΩ Min.(DC500V) | ||
| Endurance(operations) | Mechanical(at 10,800 ops./h) | 10,000,000 cycles (at room temperature) | |
| Electrical(at 360 ops./h) | 100,000 cycles (at room temperature) | ||
| Ambient temperature | -40℃~+85℃, no condensation | ||
