XST-JDQ-SLA V3.4 general power 30A relay general purpose relay for air heater
XST-JDQ-SLA V3.4
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Relay
- Model Number:XST-JDQ-SLA V3.4
- Type:POWER RELAY
- Mounting Type:Surface Mount
- Output Type:DC
- Relay Type:General Purpose
- Contact Material:Silver Alloy
- Contact Resistance:100mΩ Max.(1A 6VDC)
- Pull-in Time:15msec. Max. (without diode)
- Release Time:10msec. Max. (without diode)
- Insulation resistance:1,000MΩ Min.(DC500V)
- Ambient temperature:-40℃~+105℃(Non-condensing)
- Weight:Open type:about 20.0g

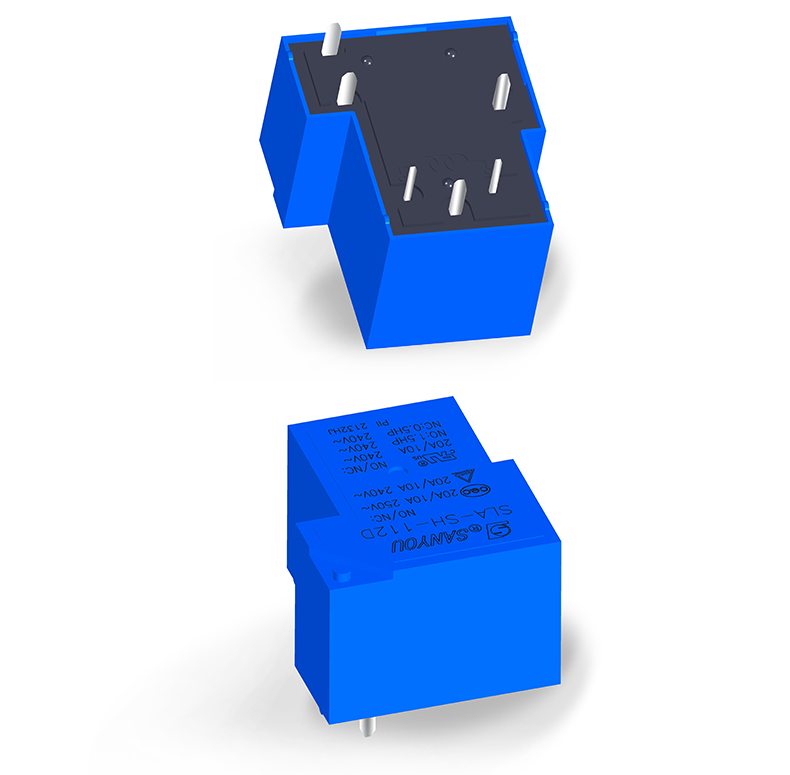

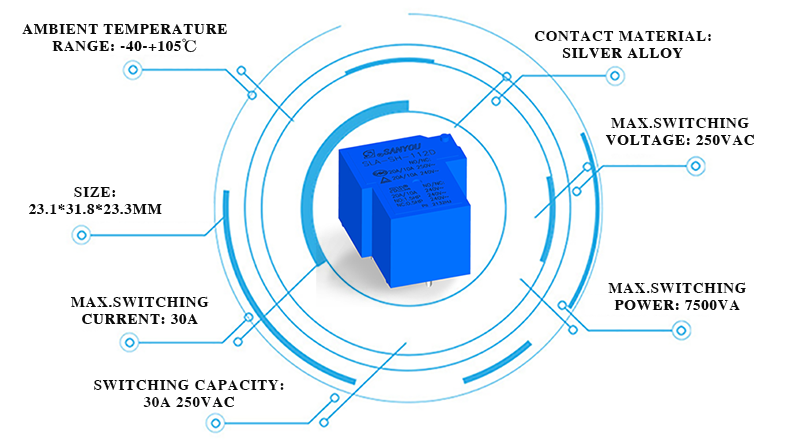

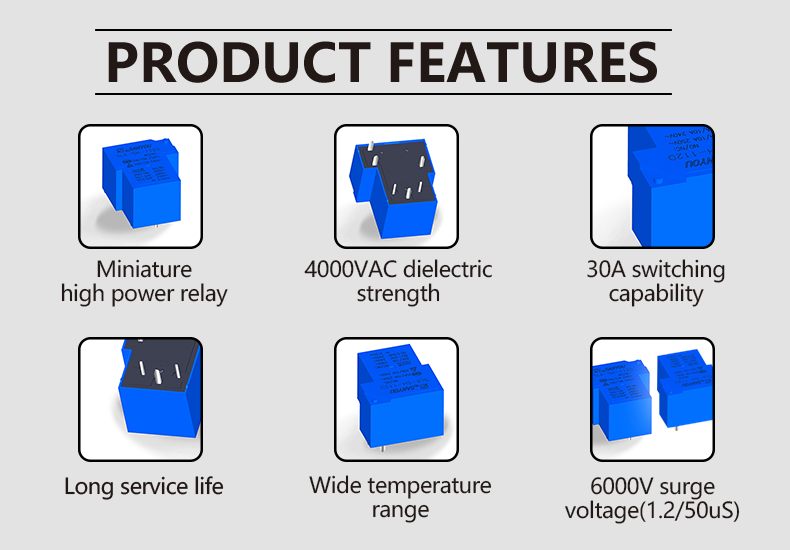

XST-JDQ-SLA V3.4 is a miniature relay with 30A high switching capability,contact from:Form A, Form B or 1 Form C.Specital type of 4000VAC dielectric strength and 6000V surge.Sealed type and open type available. It has the characteristics of long service life, strong impact resistance and wide temperature range, etc.
| Model | SLA-DM | SLA-DB | SLA-D | |
| Standard type S Mark | Coil Power H&S | |||
| Nominal switching capacity(res.load) | 30A 250VAC | 20A 250VAC | 15A 250VAC | 20/10A 250VAC |
| Max.switching current | 30A | 20A | 20A | 20A |
| Max.switching voltage | 250VAC | 250VAC | 250VAC | 250VAC |
| Max.switching power | 7500VA | 5000VA | 5000VA | 5000VA |
| Contact material | Silver alloy | |||
| Initial contact resistance (at 6VDC 1A) | 100mΩ Max.(1A 6VDC) | |||
| Initial insulation resistance | 1,000MΩ Min.(DC500V) | |||
| Endurance(operations) | Mechanical(at 10,800 ops./h) | 10,000,000 cycles (at room temperature) | ||
| Electrical(at 360 ops./h) | 100,000 cycles (at room temperature) | |||
| Ambient temperature | -40℃~+105℃, no condensation | |||
