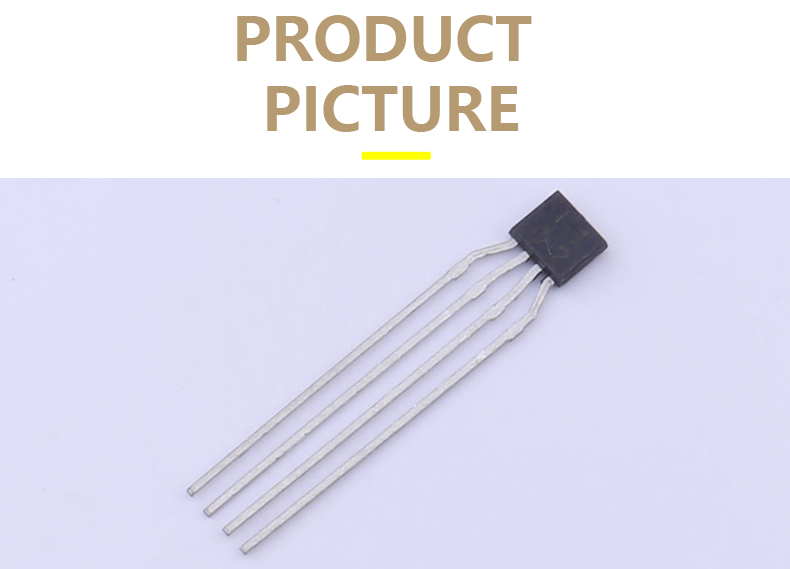

XST-HE-SL322B SSIP-4 Hall sensor Integrated Circuits Magnetic Switch Sensor InSb Hall Element
XST-HE-SL322B
minimum order
1 piece
Quantity
- Model Number:XST-HE-SL322B
- Type:hall effect switch
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:magnetic switch sensor
- Theory:magnetic switch sensor
- Output:magnetic switch sensor
- Description:magnetic switch sensor
| Symbol | Description | Limit | Unit | Conditions |
| Vc | Max.Input Voltage | 5 | V | Ta=25℃ |
| Pd | Max.Input Power | 25 | mW | |
| Topr | Operating Temperature Range | -40~110 | ℃ | |
| Tstg | Storage Temperature Range | -40~125 | ℃ |
| Symbol | Item | Min. | Typ. | Max. | Unit | Conditions |
| Vh | Output Hall Voltage | 196 | - | 370 | mV | B=50mT, Vc=1V |
| Rin | Input Resistance | 240 | - | 550 | Ω | B=0mT, Ic=0.1mA |
| Rout | Output Resistance | 240 | - | 550 | Ω | B=0mT, Ic=0.1mA |
| Vos (Vu) | Offset Voltage | -7 | - | 7.0 | mV | B=0mT, Vc=1V |
| αVh | Temp. Coefficient of Vh | - | 1.8 | - | %/℃ | B=50mT, Ic =1mA Ta=0~40℃ |
| αRin | Temp. Coefficient of Rin | - | -1.8 | - | %/℃ | B=50mT, Ic =5mA Ta=0~40℃ |
| ΔK | Linearity | - | - | 0.5 | % | B=0.1/0.5T, Ic =5mA |
