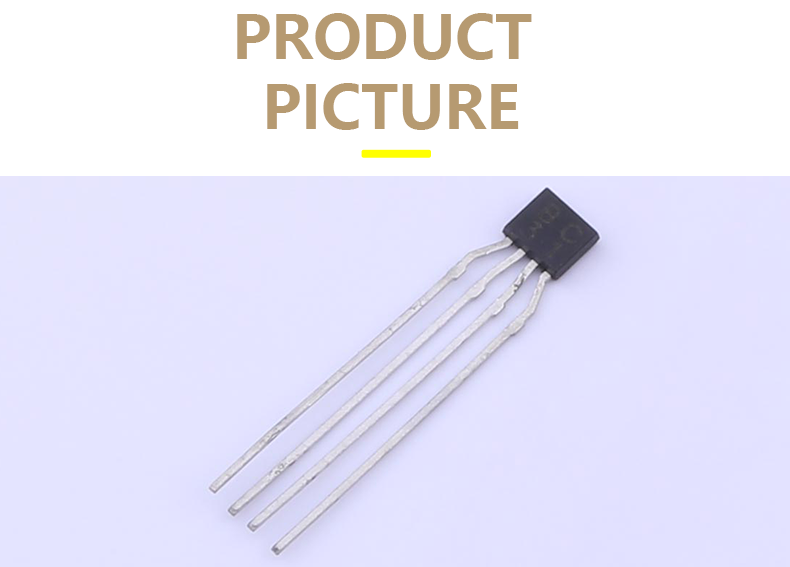

XST-HE-SL302B SSIP-4 0.076g Hall Effect Sensor Magnetic Sensors Module GaSa Hall Sensor
XST-HE-SL302B
minimum order
1 piece
Quantity
- Model Number:XST-HE-SL302B
- Type:hall effect switch
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:Magnetic Sensor
- Theory:Magnetic Sensor
- Output:Magnetic Sensor
- Description:Magnetic Sensor
| Symbol | Description | Limit | Unit | Conditions |
| Vc | Max.Input Voltage | 5 | V | Ta=25℃ |
| Pd | Max.Input Power | 25 | mW | |
| Topr | Operating Temperature Range | -40~125 | ℃ | |
| Tstg | Storage Temperature Range | -40~150 | ℃ |
| Symbol | Item | Min. | Typ. | Max. | Unit | Conditions |
| Vh | Output Hall Voltage | 36 | 45 | 54 | mV | B=50mT, Ic=5mA |
| Rin | Input Resistance | 650 | 750 | 850 | Ω | B=0mT, Ic=0.1mA |
| Rout | Output Resistance | 650 | 750 | 850 | Ω | B=0mT, Ic=0.1mA |
| Vos (Vu) | Offset Voltage | -5 | - | 5.0 | mV | B=0mT, Ic=5mA |
| αVh | Temp. Coefficient of Vh | - | - | 0.06 | %/℃ | B=50mT, Ic =5mA Ta=25~125℃ |
| αRin | Temp. Coefficient of Rin | - | - | 0.3 | %/℃ | B=0mT, Ic =0.1mA Ta=25~125℃ |
| ΔK | Linearity | -1 | - | 1 | % | B=0.1/0.5T, Ic =5mA |
