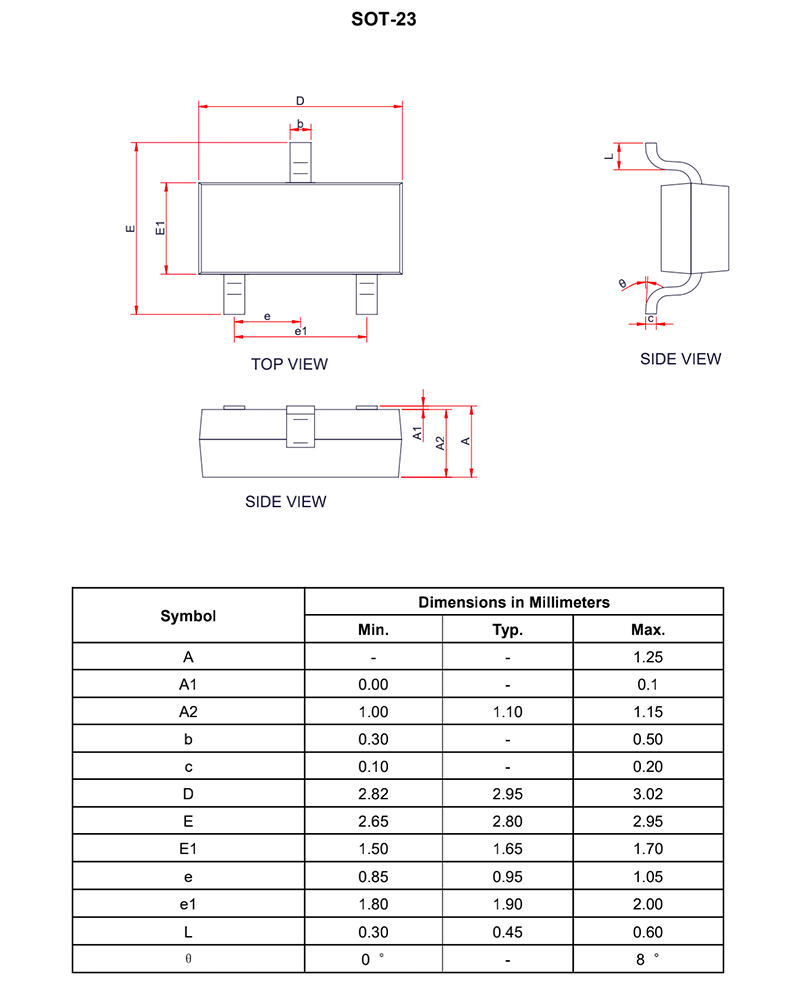

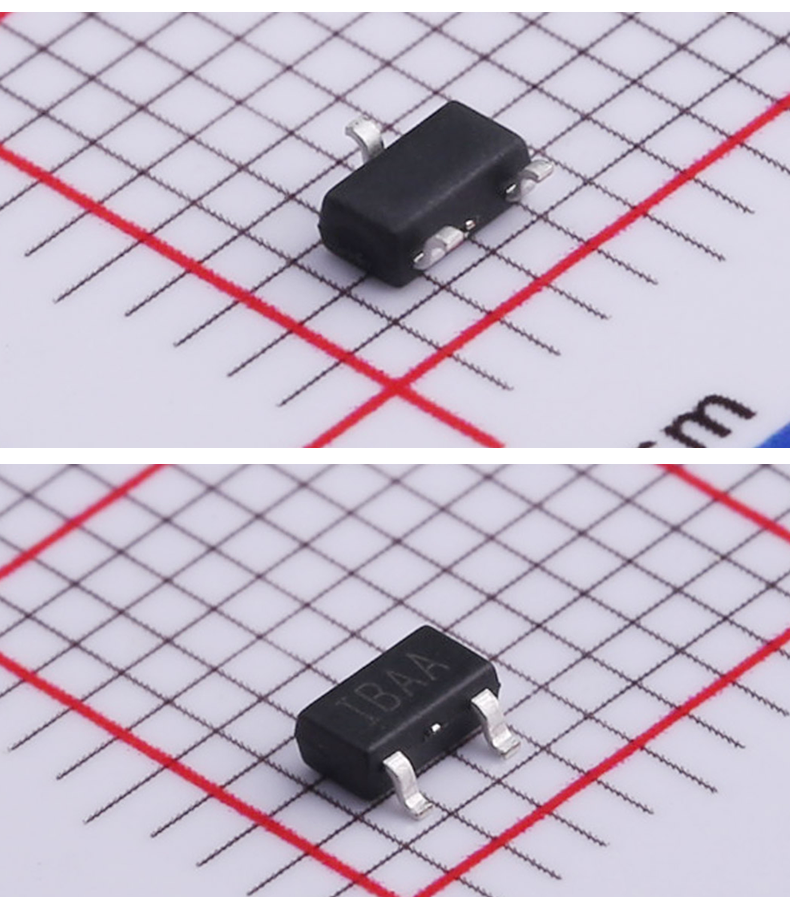

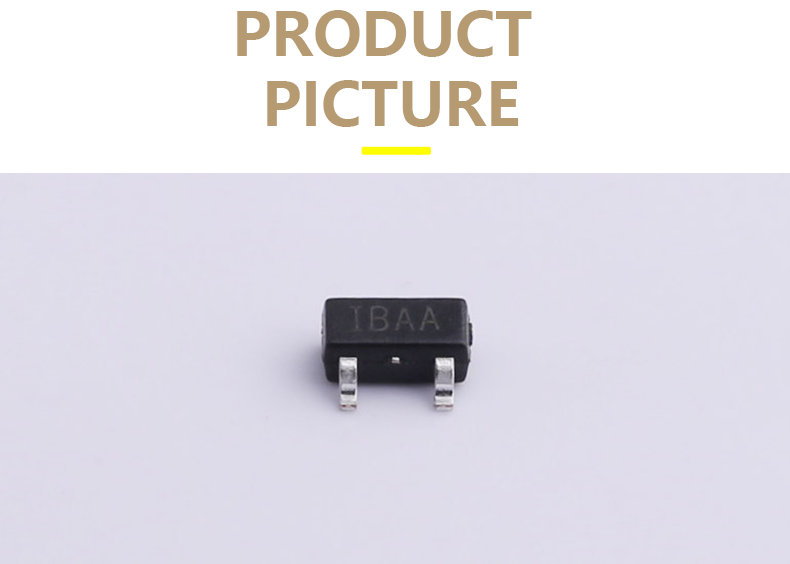

XST-HE-SL1623SH SOT-23 hall effect current sensor hall current sensor hall effect speed sensor
XST-HE-SL1623SH
minimum order
1 piece
Quantity
- Model Number:XST-HE-SL1623SH
- Type:hall effect switch
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:hall effect speed sensor
- Theory:hall effect speed sensor
- Output:hall effect speed sensor
- Description:hall effect speed sensor
| Symbol | Description | Limit | Unit |
| Vdd | Service voltage | 6 | V |
| Vdd_rev | Reverse power voltage | -0.3 | V |
| Ioutput | Output drive current | 5 | mA |
| B | Intensity of magnetization | No upper limit | Gauss |
| Pd | Package | 400 | mW |
| Tstg | Operating temperature range | -50~150 | ℃ |
| Tj | The highest temperature resistance | 150 | ℃ |
| ESD HBM | Mannequin ESD Capacity | 8000 | V |
| SL1623-TX Series | ||||||
| Symbol | Item | Min. | Typ. | Max. | Unit | Conditions |
| VDD | Service voltage | 1.6 | - | 5.5 | V | Operative mode |
| VOL | Output low level | - | 0.02 | 0.1 | V | Iout=1mA |
| VOH | Output high level | Vdd-0.1 | Vdd-0.02 | - | V | Iout=1mA |
| Idd(avg) | Average current | - | 3.3 | - | uA | TA=+25℃, VDD=1.8V |
| Idd(awake) | Wake up state current | - | 2 | - | mA | TA=+25℃, VDD=1.8V |
| Idd(sleep) | Dormant state current | - | 1 | - | uA | TA=+25℃, VDD=1.8V |
| Tawake | Wake up time | - | 50 | - | μs | Operative mode |
| Tperiod | Period | - | 50 | - | ms | Operative mode |
| SL1623-SX Series | ||||||
| Symbol | Item | Min. | Typ. | Max. | Unit | Conditions |
| VDD | Service voltage | 1.6 | - | 5.5 | V | Operative mode |
| VOL | Output low level | - | 0.02 | 0.1 | V | Iout=1mA |
| VOH | Output high level | Vdd-0.1 | Vdd-0.02 | - | V | Iout=1mA |
| Idd(avg) | Average current | - | 1.6 | - | uA | TA=+25℃, VDD=1.8V |
| Idd(awake) | Wake up state current | - | 2 | - | mA | TA=+25℃, VDD=1.8V |
| Idd(sleep) | Dormant state current | - | 1 | - | uA | TA=+25℃, VDD=1.8V |
| Tawake | Wake up time | - | 50 | - | μs | Operative mode |
| Tperiod | Period | - | 200 | - | ms | Operative mode |
