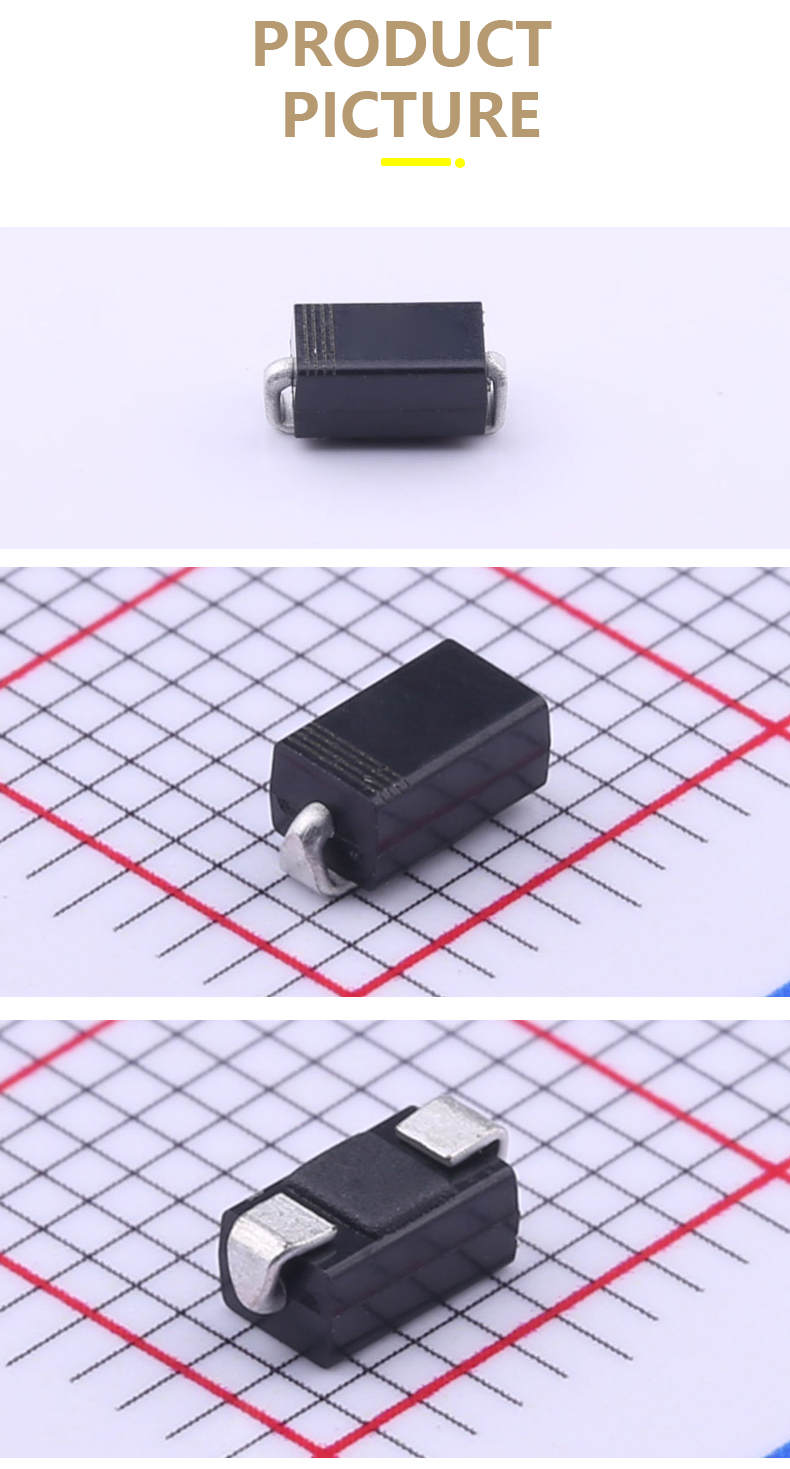

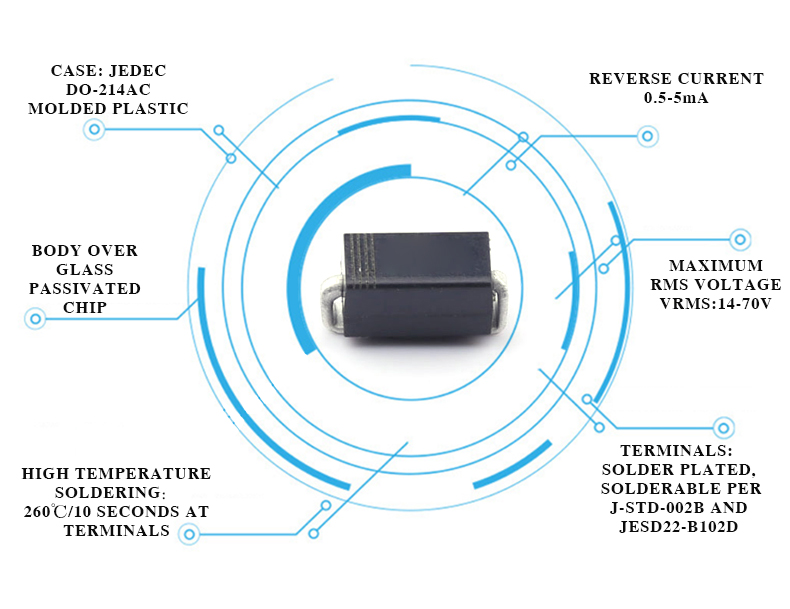

XST-EJG-SS16 SMD transistor schottky diode rectifying diode for
XST-EJG-SS16
minimum order
1 piece
Quantity
- Model Number:XST-EJG-SS16
- Type:Signal Diode
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Package Type:Surface Mount
- Application:PCB Board
- Supplier Type:Agency
- Media Available:datasheet
- Maximum rectified current:1A
- Voltage rate of change (rated VR):10000V
- Junction to lead:35℃/W
- Operating junction:-65 to +125℃
- IO:1.0A
- VR(V):60V
- VF(V):0.7V
- IR:0.5mA

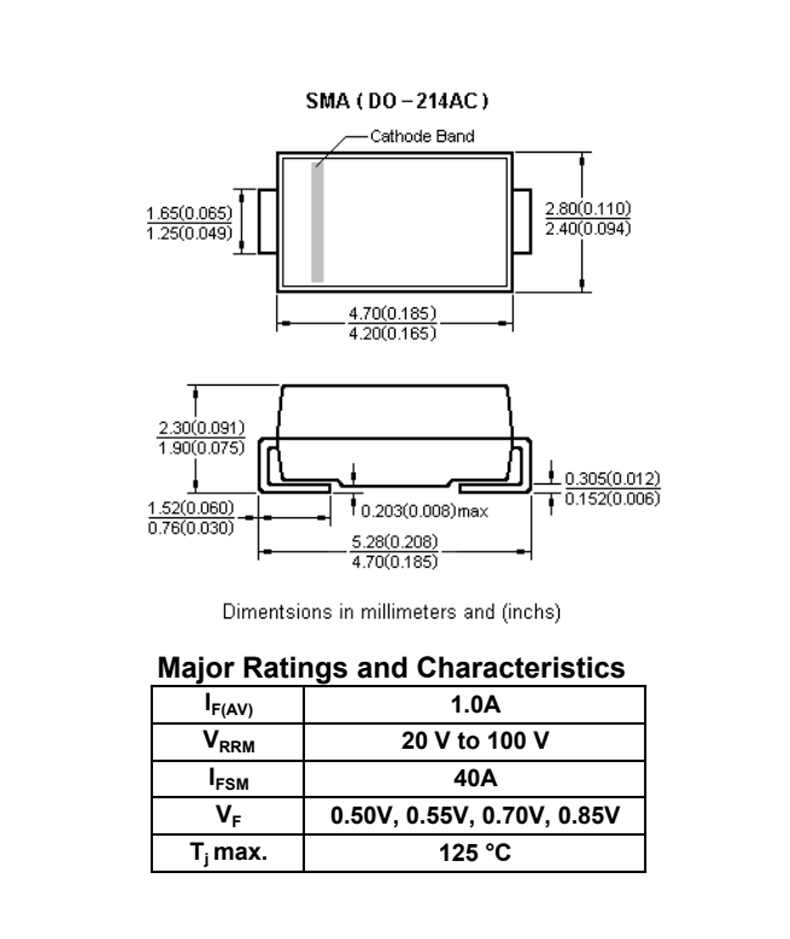

| Items | Symbol | SS12 | SS13 | SS14 | SS15 | SS16 | SS18 | SS110 | UNIT |
| Maximum repetitive peak reverse voltage | VRRM | 20 | 30 | 40 | 50 | 60 | 80 | 100 | V |
| Maximum RMS voltage | VRMS | 14 | 21 | 28 | 35 | 42 | 56 | 70 | V |
| Maximum DC blocking voltage | VDC | 20 | 30 | 40 | 50 | 60 | 80 | 100 | V |
| Maximum average forward rectified current | IF(AV) | 1 | A | ||||||
| Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load | IFSM | 40 | A | ||||||
| Voltage rate of change (rated VR) | dv/dt | 10000 | V/µs | ||||||
| Thermal resistance from junction to lead (1) | RθJL | 35 | ℃/W | ||||||
| Operating junction and storage temperature range | TJ,TSTG | –65 to +125 | ℃ | ||||||
| Note 1: Mounted on P.C.B. with 0.2 x 0.2” (5.0 x 5.0mm) copper pad areas. | |||||||||
| Items | Test conditions | Symbol | SS12 | SS13~14 | SS15~16 | SS18~110 | UNIT | |
| Instantaneous forward voltage | IF=1.0A(2) | VF | 0.5 | 0.55 | 0.7 | 0.85 | V | |
| Reverse current | VR=VDC | TA=25℃ | IR | 0.5 | mA | |||
| TA=100℃ | 5 | |||||||
| Note 2: Pulse test:300μs pulse width,1% duty cycle. | ||||||||
