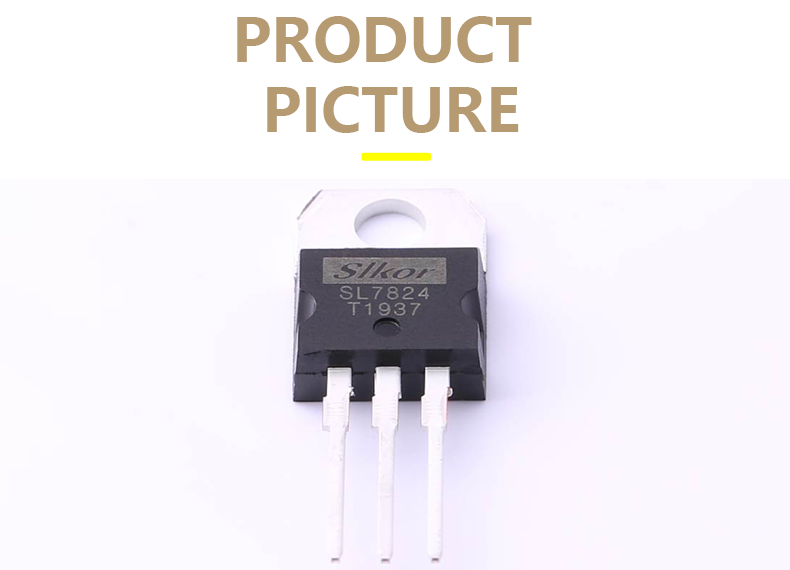

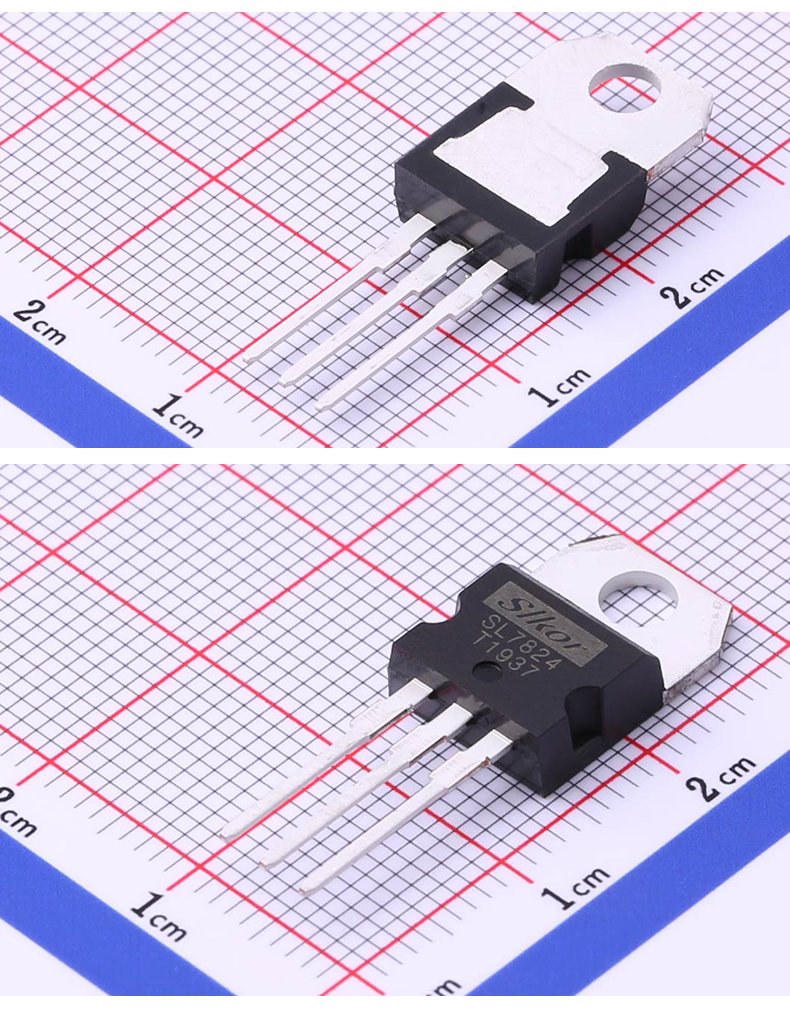

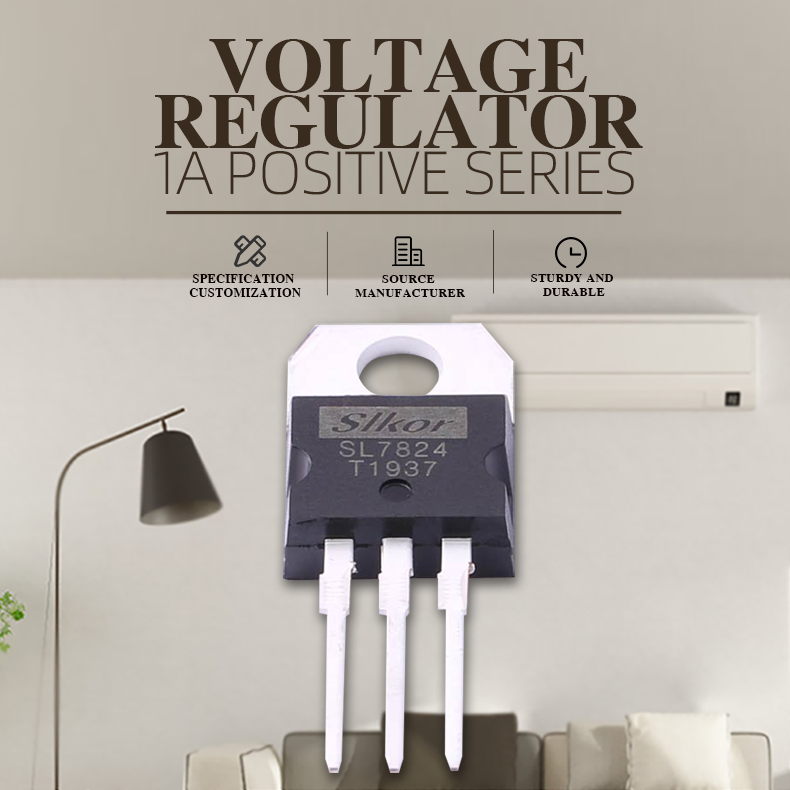

XST-DYGL-SL7824 microcontroller linear voltage regulator power management IC chip

XST-DYGL-SL7824

minimum order

1 piece

Quantity

Contact Now

add to cart

Model Number:XST-DYGL-SL7824
Type:microcontroller
Place of Origin:Guangdong, China
Brand Name:Xunster
D/C:20224
Output Voltage:22.80V
Load Regulation:120mV
Line Regulation:240mV
Quiescent Current:8.0mA
Quiescent Current Change:0.5mA
Output Noise Voltage:170μV
Temperature coefficient of Vout:-2.8mV/℃
Ripple Rejection:50dB
Peak Output Current:1.8A
Short-Circuit Current:250mA

XST-DYGL-SL7824 is a series of positive voltage regulators which can provide up to 1A of output current.It is available in nine fixed voltage, 5, 6, 8, 9, 10,12,15,18 and 24V. It has the features of thermal overload shutdown protection ,short circuit current limiting ,output transistor SOA protection and RoHS Compliance.

Symbol	Description	SL7805			Unit	Test Conditions
Symbol	Description	Min.	Typ.	Max.	Unit	Test Conditions
Vout	Output Voltage	23.04	24.0	24.96	V	Iout=5mA-1.0A
Vout	Output Voltage	22.80	-	25.20	V	27V≤Vin≤38V, Iout=5mA-1.0A
AVout	Load Regulation	-	-	240	mV	Iout=5mA-1.0A
AVout	Load Regulation	-	-	120	mV	Iout=0.25A-0.75A
AVout	Line Regulation	-	-	240	mV	27V≤Vin≤38V
AVout	Line Regulation	-	-	240	mV	27V≤Vin≤38V, Iout=1.0A
Iq	Quiescent Current	-	-	8.0	mA	Iout≤1.0A
AIq	Quiescent Current Change	-	-	1.0	mA	28V≤Vin≤38V
AIq	Quiescent Current Change	-	-	0.5	mA	Iout=5mA-1.0A
eN	Output Noise Voltage	-	170	-	µV	10Hz≤f≤100KHz
Vo/t	Temperature coefficient of Vout	-	-2.8	-	mV/℃	Iout=5mA
RR	Ripple Rejection	50	66	-	dB	28V≤Vin≤38V, f=120Hz
Ipeak	Peak Output Current	-	1.8	-	A	-
Isc	Short-Circuit Current	-	250	-	mA	Vin=35V
Vd	Dropout Voltage	-	2.0	-	V	-

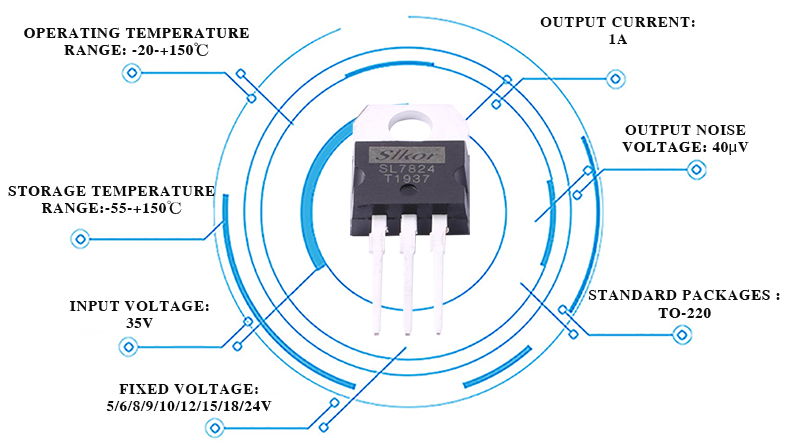

Symbol	Description		Ratings	Unit
Vin	Input Voltage	Vout=3.3~18V	35	V
Vin	Input Voltage	Vout=20~24V	40	V
Iout	Output Current		1	A

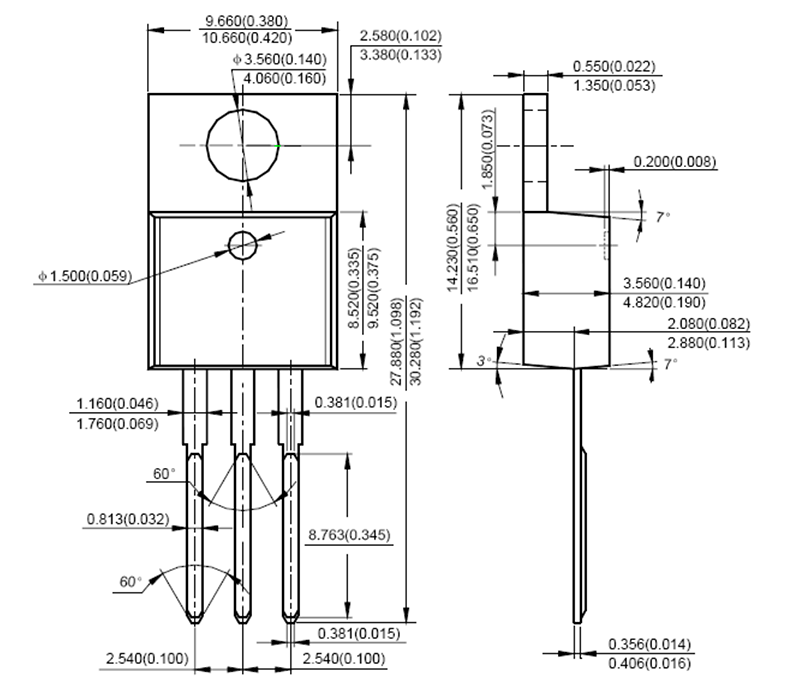

Pd	Power Dissipation	TO-220	Internally Limited	mW
Tj	Junction Temperature		150
Topr	Operating Temperature Range		-20~150	℃
Tstg	Storage Temperature Range		-55~150	℃
