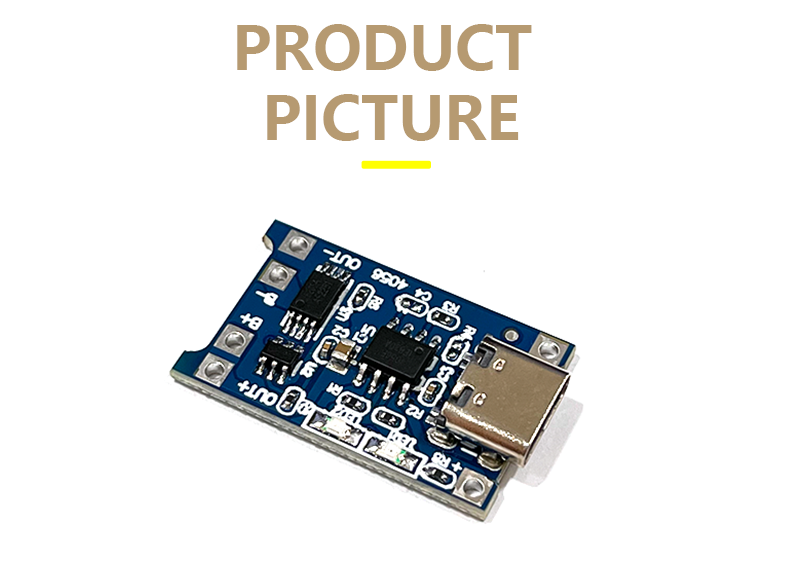

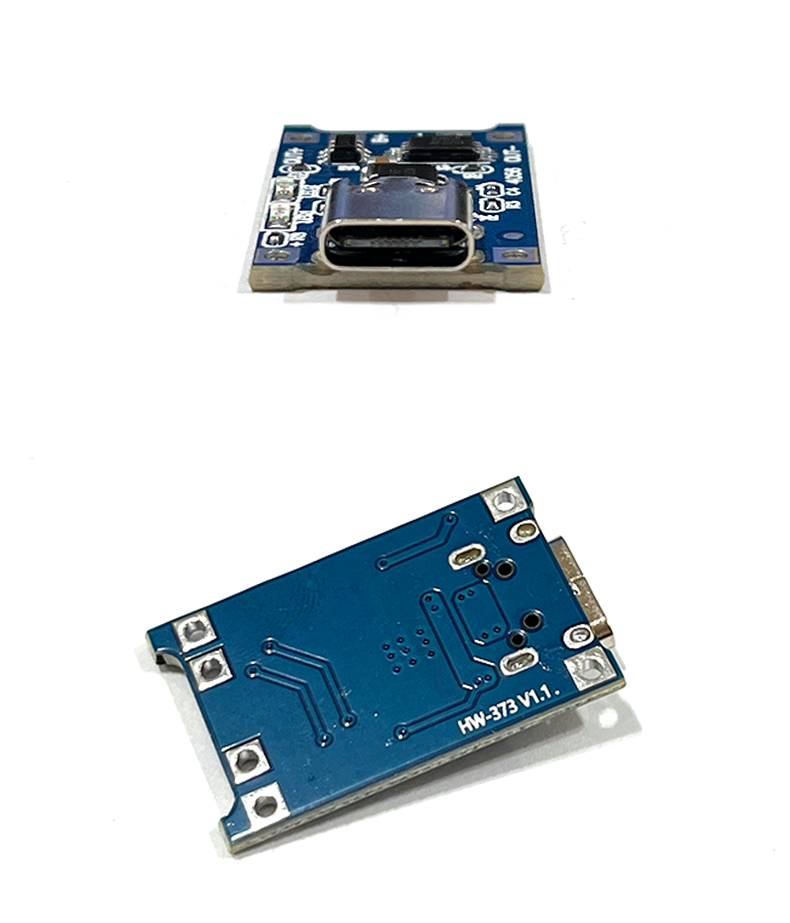

Tp4056 1A lithium battery charging board module type-C USB interface charging two in one

• Model Number:XST-MZ-373
• Type:Embedded System Development Boards and Kits
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Chipset:Tp4056
• Input voltage:4.5V-5V
• Maximum charging current:1000mA
• Charging as dead as voltage:4.2V ± 1%
• The battery overlap protection voltage:2.5V/3A
• Board size:2.8cmx1.7cm

(1) Product characteristics:

Charging protection to prevent the battery from charging and off, and automatically control the charging current to better protect the battery;

Type-C mother seat interface, retain the input voltage welding electricity, which is convenient for DIY.

(2) Product parameters

Input voltage 4.5V-5V

Maximum charging current: 1000mA

Charging as dead as voltage 4.2V ± 1%

The battery overlap protection voltage 2.5V/3A

Board size 2.8cm*1.7cm

(3) How to use

The Type-C mother seat and the+-pad power input terminal next to them are connected to 5V input voltage. B+lithium battery positive electrode, B-lithium battery negative electrode. OUT+ OUT-Enter, such as booster board. Put the battery to B+B-, insert the mobile phone charger to USB, and the blue light is on, indicating that there is a power supply access, and the red light flashs, indicating that it is charging. After the charging is full, the red light stops flashing and becomes always on.

You can connect the load on the OUT+ OUT-end. After the load is connected, the red light is often on. When the input terminal has a power supply, the current is obtained from the power output terminal. If the power is not connected, the current is obtained from the battery, and the battery voltage is lower than 2.5V, and the output is automatically turned off.
