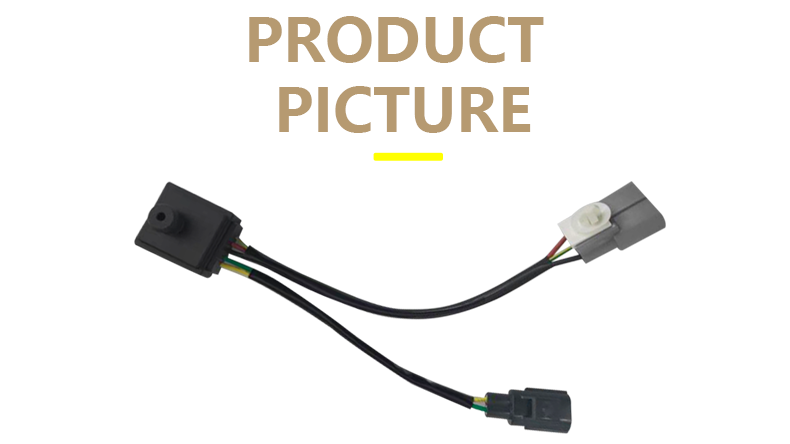

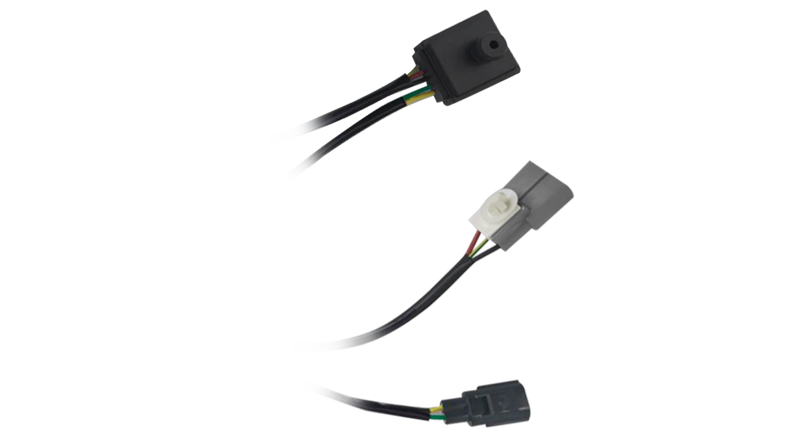

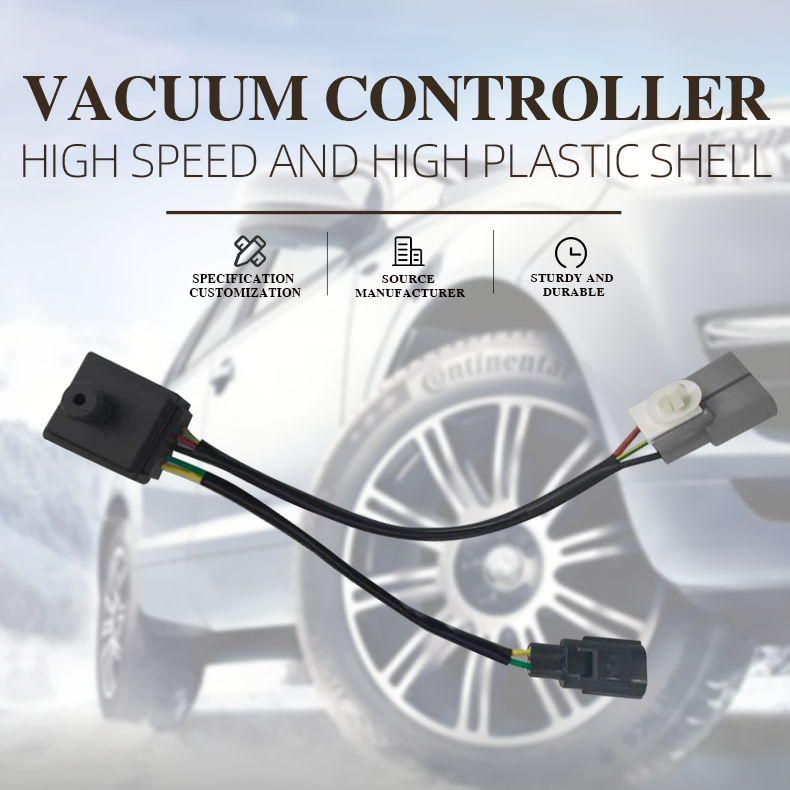

SV-S89 high accuracy vacuum pump pressure switch controller for electric vehicles brake control

• Model Number:XST-GM-SV- S89
• Type:Pressure Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:electric vehicles brake control
• Description:Pressure switch controller

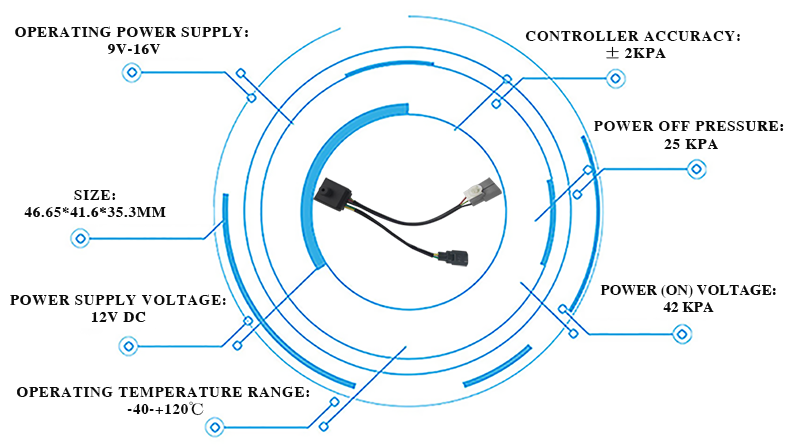

• operating power supply:9-16V
• Control the switch operating range:(OFF)25kPa,(ON)42kPa
• Control accuracy:±2kPa
• Designed life:900000cycles
• Circuit current bearing capacity:≤20A

The XST-GM-The SV-S89 is developed and produced using a pressure sensor chip module and a special control signal processing integrated circuit chip, packaged in a plastic shell and protected by special glue.Each switch controller is subject with linear calibration and temperature compensation to ensure the accurate and stable operation of the vacuum pump without affected by the operating temperature.Standard power supply voltage is DC 12V.This product can be directly connected to the vacuum pump to control the vacuum pump start.
