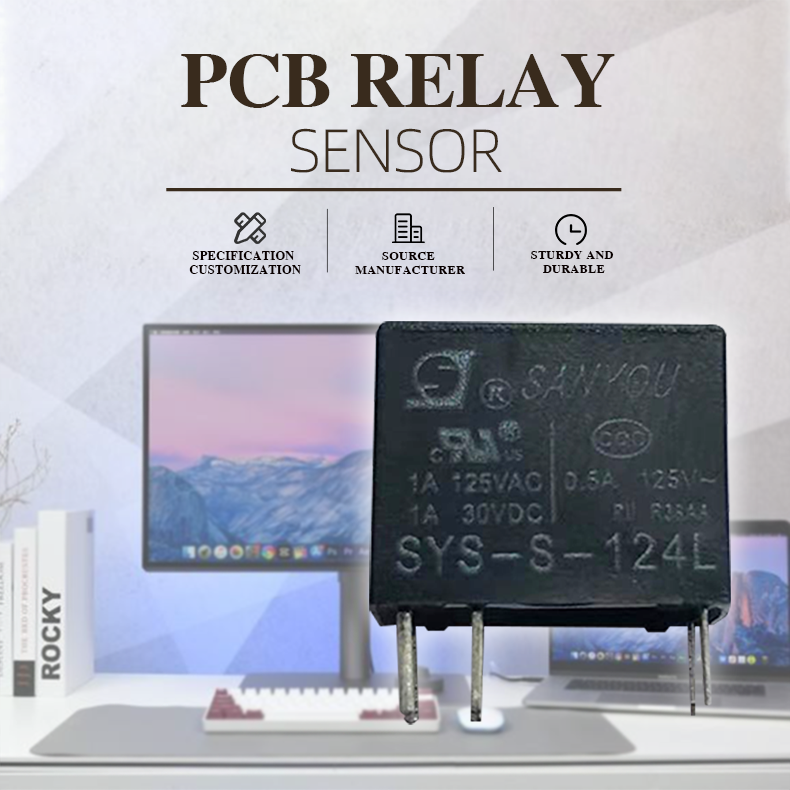

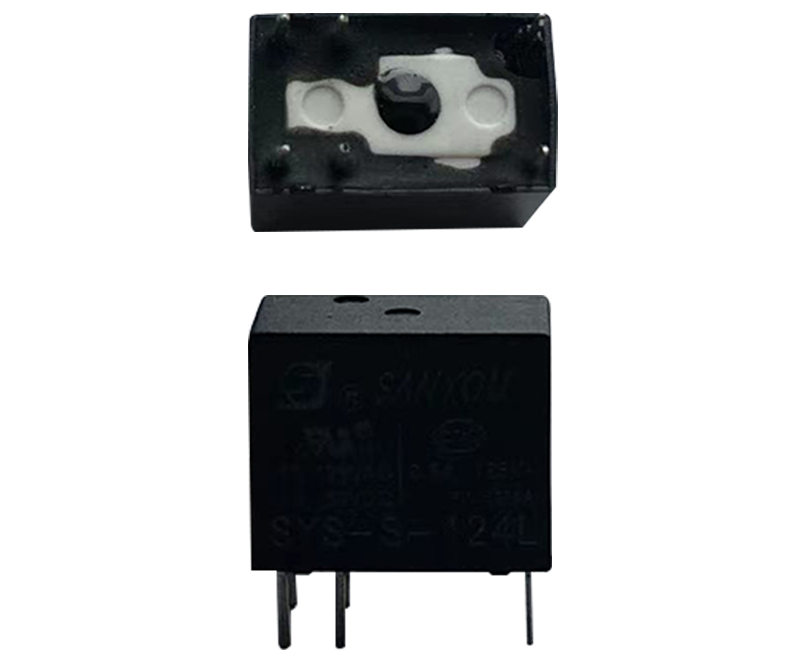

Subminiature signal relay XST-JDQ-SYS V1.2 power relay designed for thermostat
XST-JDQ-SYS V1.2
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Relay
- Model Number:XST-JDQ-SYS V1.2
- Type:POWER RELAY
- Mounting Type:Surface Mount
- Output Type:DC
- Relay Type:General Purpose

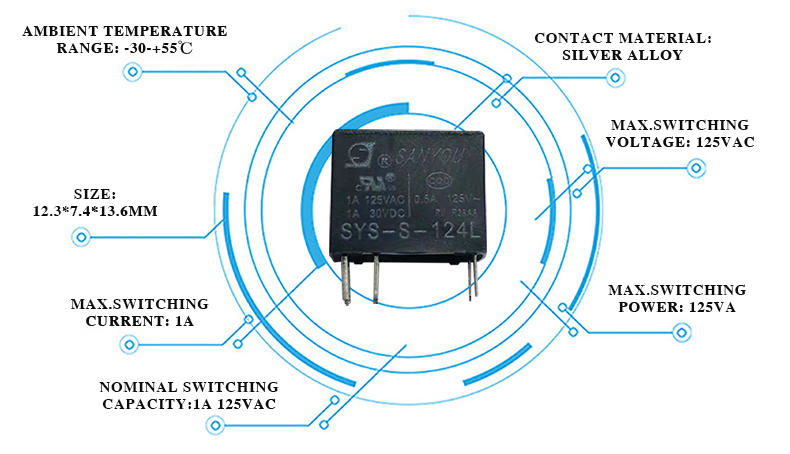

- Nominal switching capacity(res.load):1A 125VAC
- Max.switching current:1A
- Max.switching voltage:125VAC
- Max.switching power:125VA
- Contact material:Silver alloy
- Initial contact resistance (at 6VDC 1A):100mΩ Max.

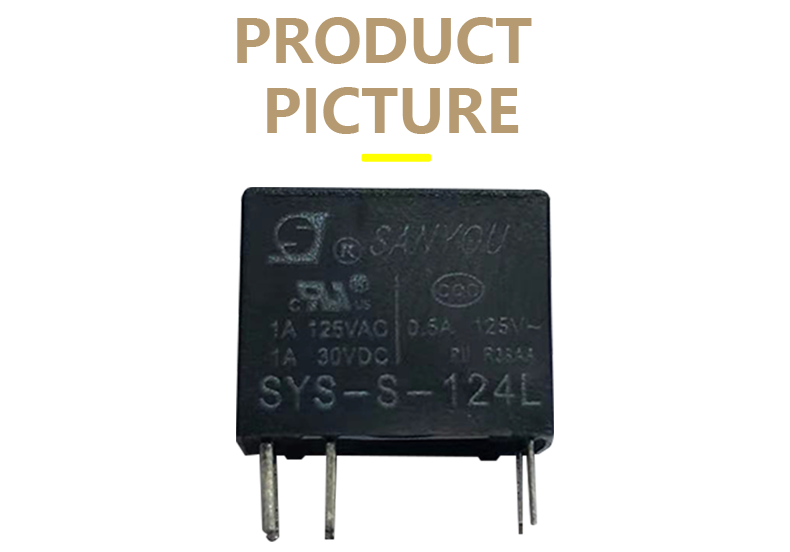

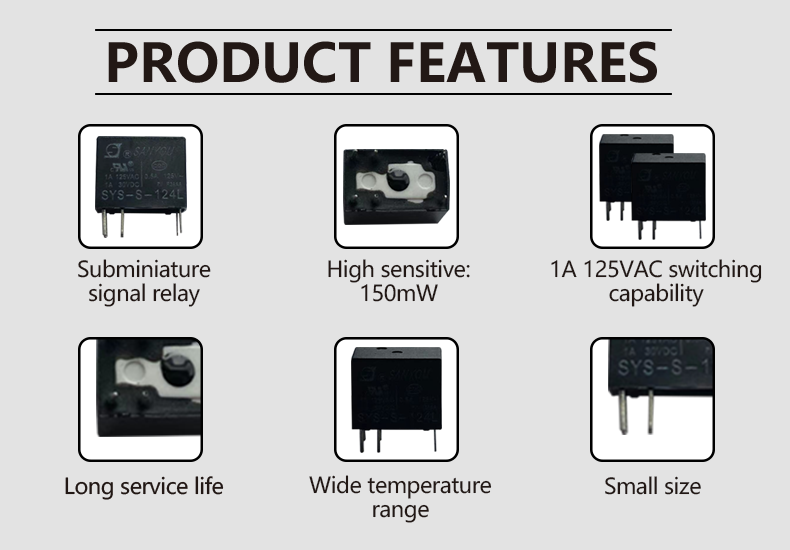

XST-JDQ-SYS V1.2 is a subminiature signal relay, designed for thermostat,modem,computer peripherals,video recorder and security application. It has 150mW high sensitive.It hasUL,C-UL,CQC and other certifications. It has the characteristics of long service life, strong impact resistance and wide temperature range, etc.
| Model | SYS | |
| Nominal switching capacity(res.load) | 1A 125VAC | |
| Max.switching current | 1A | |
| Max.switching voltage | 125VAC | |
| Max.switching power | 125VA | |
| Contact material | Silver alloy | |
| Initial contact resistance (at 6VDC 1A) | 100mΩ Max. | |
| Initial insulation resistance | 1,000MΩ Min.(DC500V) | |

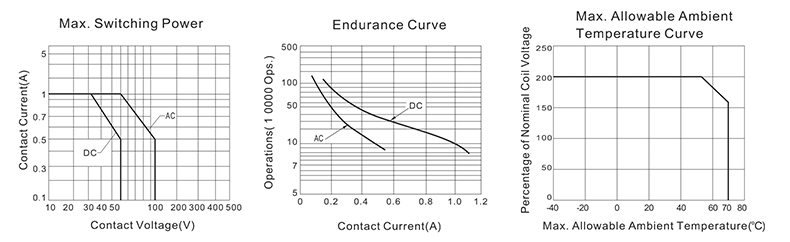

| Endurance(operations) | Mechanical(at 10,800 ops./h) | 10,000,000 |
| Electrical(at 1,800 ops./h) | 100,000 | |
| Ambient temperature | -30℃~+55℃(no condensation) | |
