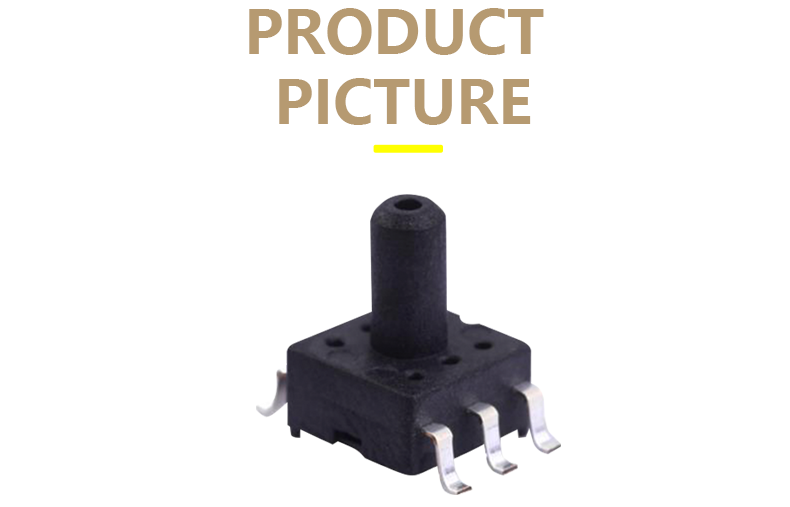

SOP6 Package Patch Mems Piezoresistive Gauge Pressure Sensor For Sphygmomanometer
XST-GM-SV-SOP6-040G
minimum order
1 piece
Quantity
- Model Number:XST-GM-SV-SOP6-040G
- Type:Gauge Pressure Sensor
- Place of Origin:Guangdong, China
- Brand Name:xunster
- Usage:Sphygmomanometer
- Output:5V
- Description:Gauge Pressure Sensor

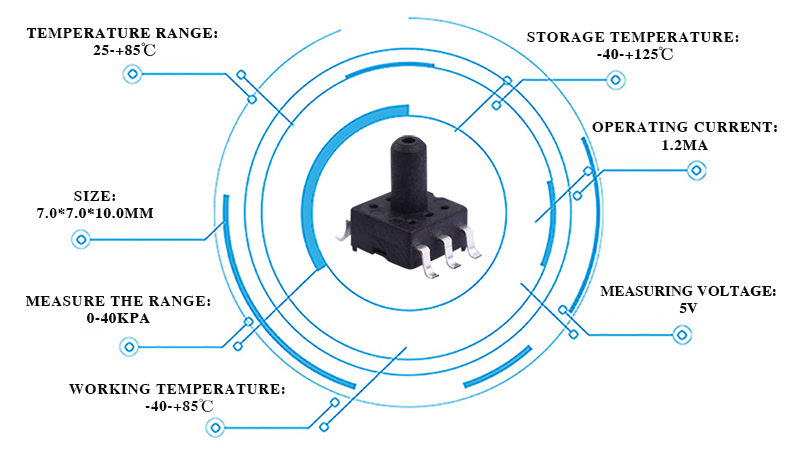

- Range:0-40kPa
- Operating voltage:5V
- working current:1.2mA
- Bridge resistor:3.5-4.5kΩ
- Full range output:45-70mV
- Zero point output:-10~15mV
- Degree of linearity:-0.3~0.3%FS
- Temperature hysteresis:0.3%FS
- Storage temperature:-40°C ~ 125°C
- Overload pressure:3X kPa
XST-GM-SV-SOP6-040G gauge pressure sensor chip adopts microcomputer electric processing process, special design structure and protection measures of the sensor chip improve the measurement stability and the service life of the sensor, and ensure the reliability and consistency of the product.This product is specially designed for low-cost and long-term high-reliability pressure measurement, and can be widely used in the fields of home appliances, medical, sports and industrial pressure measurement.
| Parameter | Min. | Typ. | Max | Unit | |
| Range | 0 | — | 40 | kPa | |
| Operating voltage / working current | — | 5/1.2 | — | V/mA | |
| Bridge resistor | 3.5 | 4.1 | 4.5 | kΩ | |
| Full range output | 45 | 60 | 70 | mV | |
| Zero point output | -10 | 15 | mV | ||
| Temperature coefficient | Zero drift | -0.08 | 0.08 | %FS/℃ | |
| Sensitivity | -0.24 | -0.2 | -0.16 | %FS/℃ | |
| Resistivity | 0.6 | 1 | 1.4 | 10-3/℃ | |
| Degree of linearity | -0.3 | 0.3 | %FS | ||
| Stress hysteresis | -0.3 | 0.3 | %FS | ||
| Repetitiveness | -0.3 | 0.3 | %FS | ||
| Temperature hysteresis | — | — | 0.3 | %FS | |
| Working temperature | -40 | — | 85 | ℃ | |
| Storage temperature | -40 | — | 125 | ℃ | |
| Overload pressure | 3X | kPa | |||
