Single-chip microcomputer XST-MCU-SC8F3792 semiconductor MTP chip MCU
XST-MCU-SC8F3792
minimum order
1 piece
Quantity
- Model Number:XST-MCU-SC8F3792
- Type:microcontroller
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- D/C:20223792
- Brand:microcontroller IC
- Module/Board Type:NONE
- Core Processor:16MHz
- Co-Processor:8MHz
- Speed:NONE
- Flash Size:128B
- RAM Size:128B
- Operating Temperature:- 20 ℃ to 75 ℃
- Core Size:8-Bit
- Peripherals:NONE
- Number of I/O:14
- EEPROM Size:128 x 8
- Voltage - Supply (Vcc/Vdd):1.8V
- Data Converters:none
- Oscillator Type:none
- Applications:WDT, LVD
- Controller Series:8bit
- Interface:none
- Voltage - Supply:2mA
- Mounting Type:SMD
- Package / Case:NONE
- Number of Cores/Bus Width:8
- Co-Processors/DSP:none
- Graphics Acceleration:none
- Display & Interface Controllers:none
- Ethernet:Not Applicable
- USB:none
- Working voltage:1.8V
- Working current:2mA
- Quiescent current:0.1uA
- Low level input voltage:0.3VDDV
- High level input voltage:0.7VDDV
- High level output voltage:0.9VDDV
- Low level output voltage:0.1VDDV
- Working voltage of ad module:2.2V
- EEPROM module operating voltage:3.5V
- Pull up resistance:40KΩ

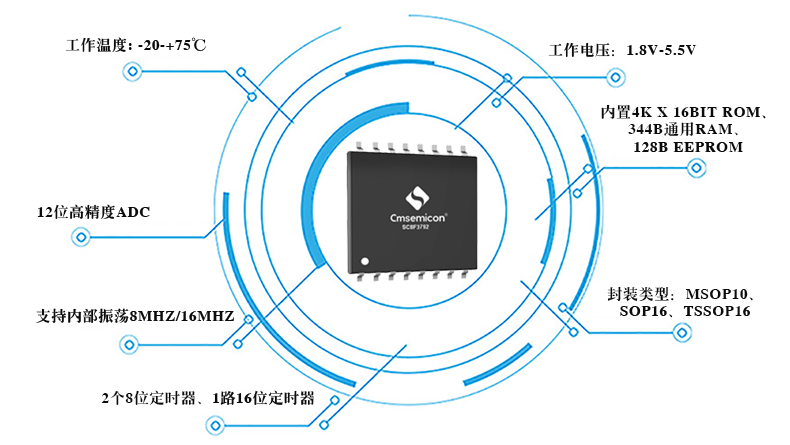

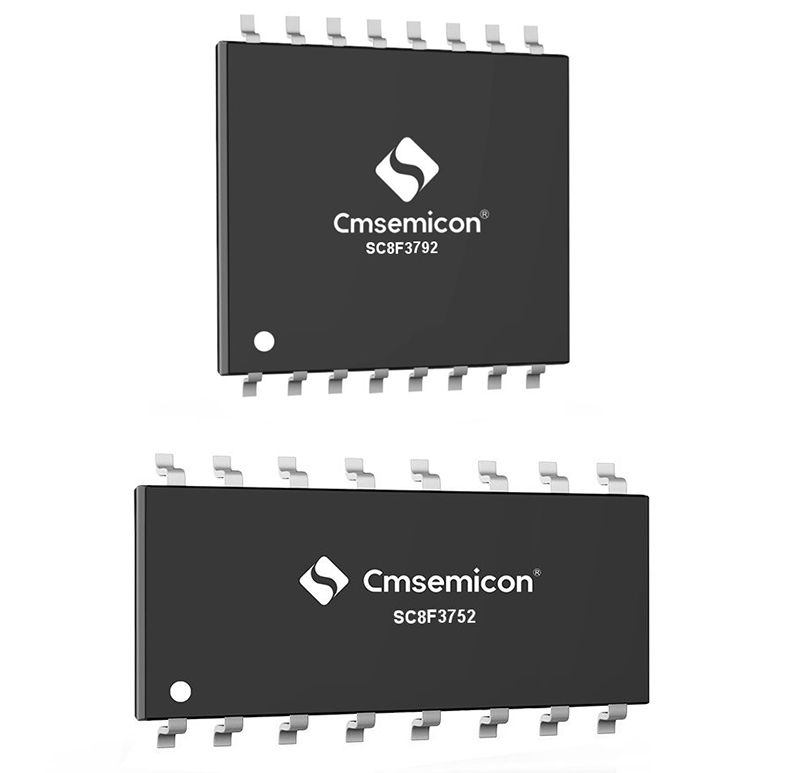

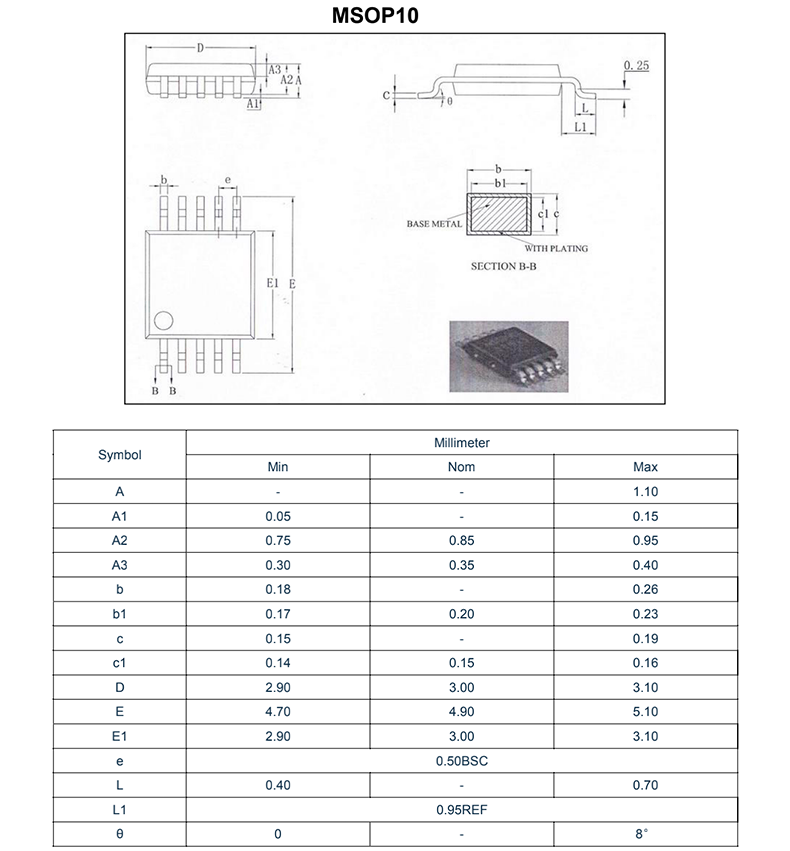

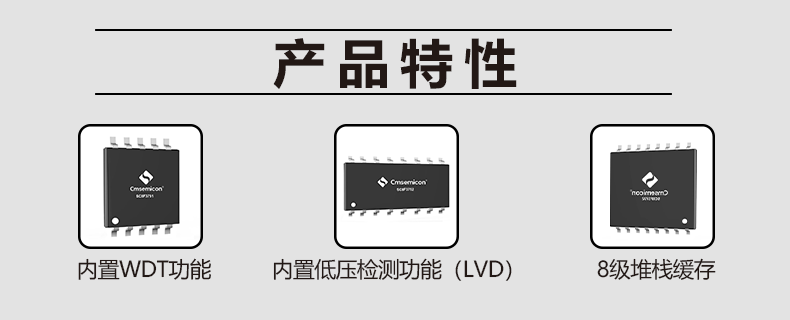

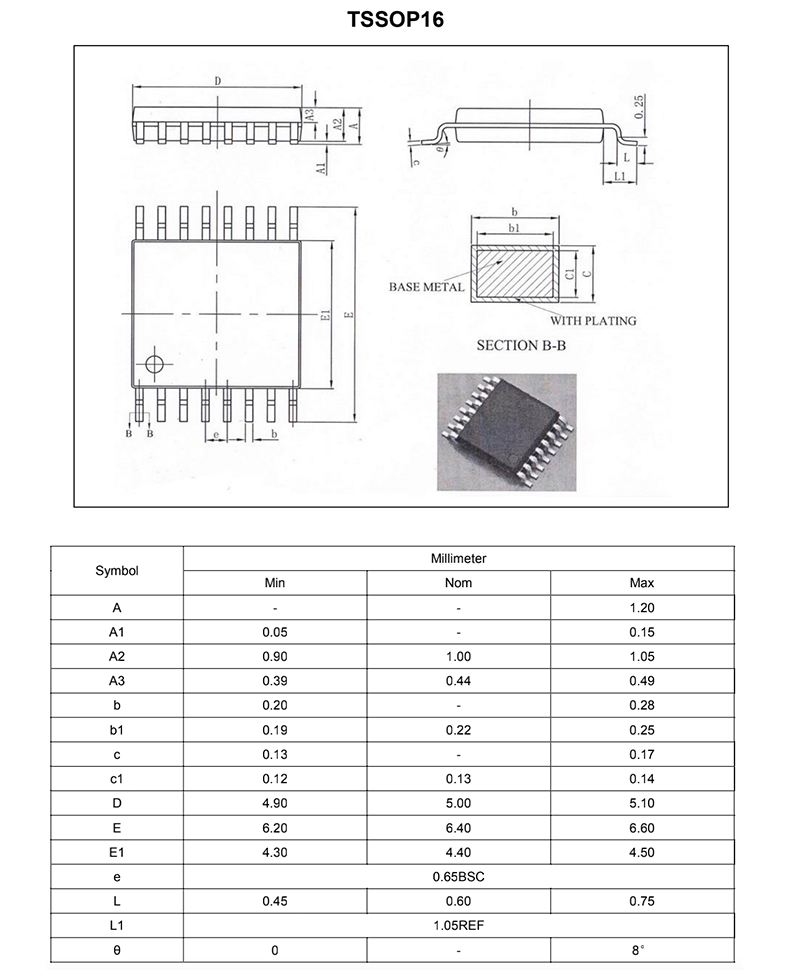

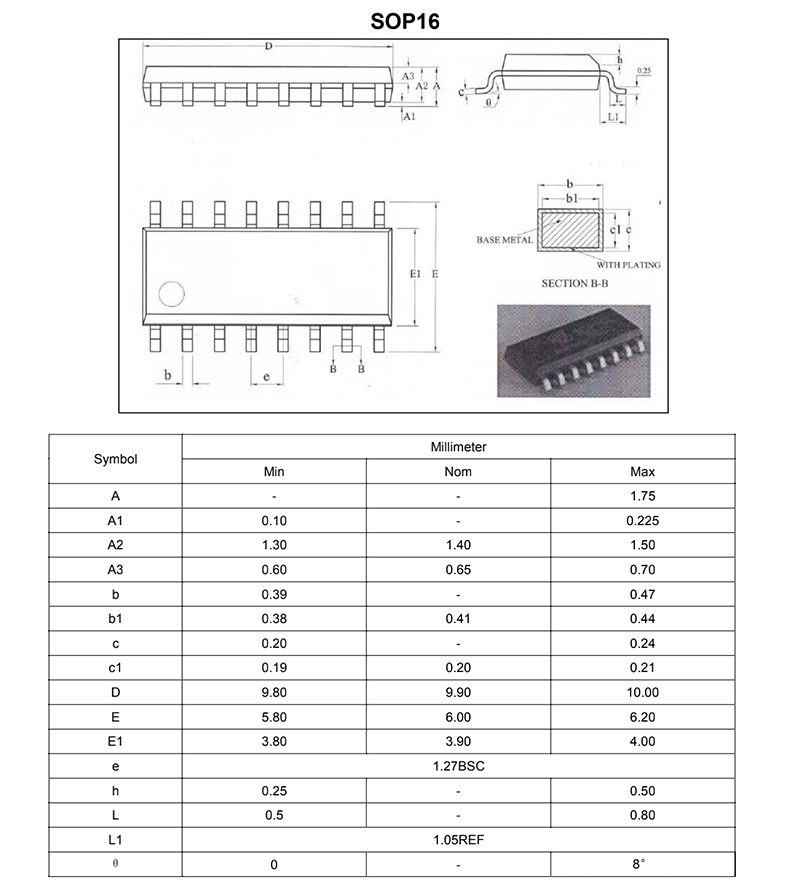

Xst-mcu-sc8f37xx series is a semiconductor MTP ad chip, including flash 4kx16bit, ram344b, built-in EEPROM 128B, built-in RC oscillation 8MHz / 16mhz and external 8MHz crystal oscillator, working voltage 1.8v-5.5v, up to 14 gpios, built-in WDT, LVD, high-precision 12 bit ADC and 2-way operational amplifier. It supports table lookup function and provides 5-way PWM. Industrial standard design, can work at - 20 ℃ to 75 ℃, and provide msop10, SOP16 and TSSOP16 packages.
| Symbol | Parameter | Test conditions | Min. | Typ. | Max | Unit | |
| VDD | condition | ||||||
| VDD | Working voltage | - | 16MHz | 3.5 | - | 5.5 | V |
| - | 8MHz | 1.8 | - | 5.5 | V | ||
| Idd | Working current | 5V | Turn off all analog modules, Fsys=8MHz | - | 3 | - | mA |
| 3V | Turn off all analog modules, Fsys=8MHz | - | 2 | - | mA | ||
| 5V | Turn off all analog modules, Fsys=16MHz | - | 3.8 | - | mA | ||
| 3V | Turn off all analog modules, Fsys=16MHz | - | 2.7 | - | mA | ||
| 5V | Burn program EEPROM | - | 20 | - | mA | ||
| 3V | Burn program EEPROM | - | 10 | - | mA | ||
| Istb | Quiescent current | 5V | - | - | 0.1 | 2 | uA |
| 3V | - | - | 0.1 | 1 | uA | ||
| Vil | Low level input voltage | - | - | - | - | 0.3VDD | V |
| Vih | High level input voltage | - | - | 0.7VDD | - | - | V |
| Voh | High level output voltage | - | No load | 0.9VDD | - | - | V |
| Vol | Low level output voltage | - | No load | - | - | 0.1VDD | V |
| Vadi | Ad port input voltage | - | - | 0 | - | Vadref | V |
| Vad | Working voltage of ad module | - | Vadref= VDD | 2.7 | - | 5.5 | V |
| - | Vadref = 2.0V CLKadc= Fsys /32 | 2.2 | - | 5.5 | V | ||
| - | Vadref = 2.4V CLKadc= Fsys /32 | 2.6 | - | 5.5 | V | ||
| Veeprom | EEPROM module operating voltage | - | - | 3.5 | - | 5.5 | V |
| Ead | AD conversion error | - | - | - | ±2 | - | - |
| Rph | Pull up resistance | 5V | Vo=0.5VDD | - | 40 | - | KΩ |
| 3V | Vo=0.5VDD | - | 73 | - | KΩ | ||
