Semiconductor transistor XST-IGBT-CMS8324C insulated gate bipolar transistor
XST-IGBT-CMS8324C
minimum order
1 piece
Quantity
- Model Number:XST-IGBT-CMS8324C
- Type:IGBT
- Place of Origin:Guangdong, China
- Brand Name:xunster
- Package Type:Surface Mount
- Supplier Type:Agency
- Media Available:datasheet
- supply voltage:30V
- Input frequency:100KHz
- JA package thermal impedance (1):160℃/W
- power waste:1250mW
- Maximum working junction temperature:150℃
- welding temperature:260℃,10s
- Storage temperature range:150℃

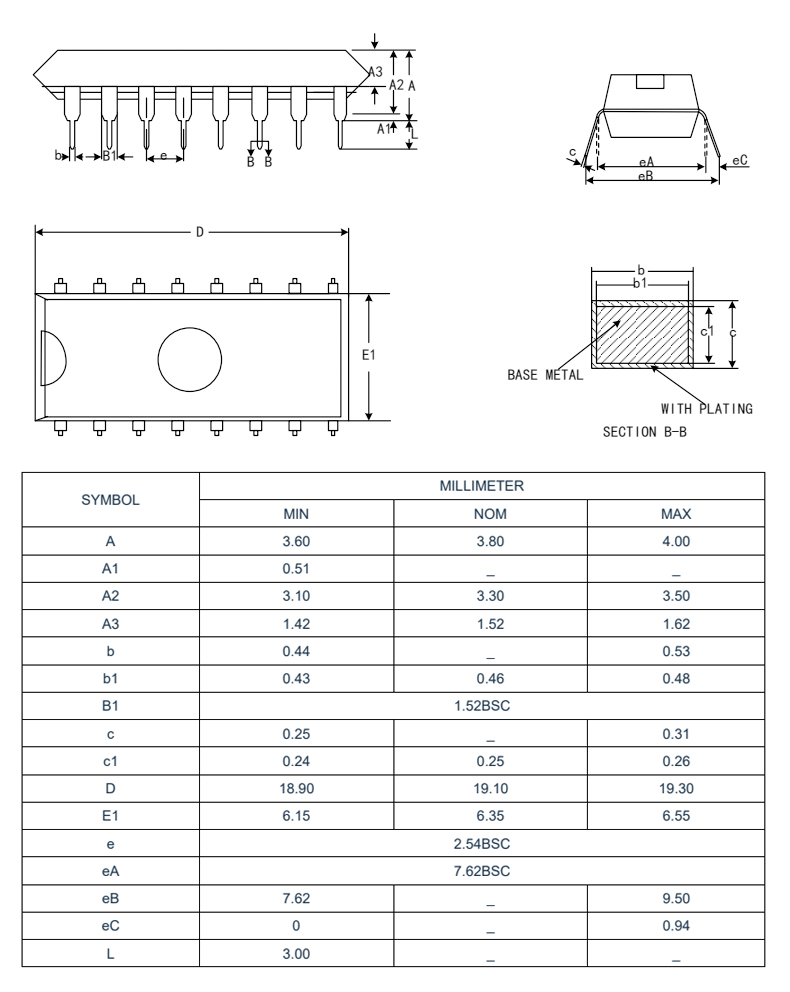

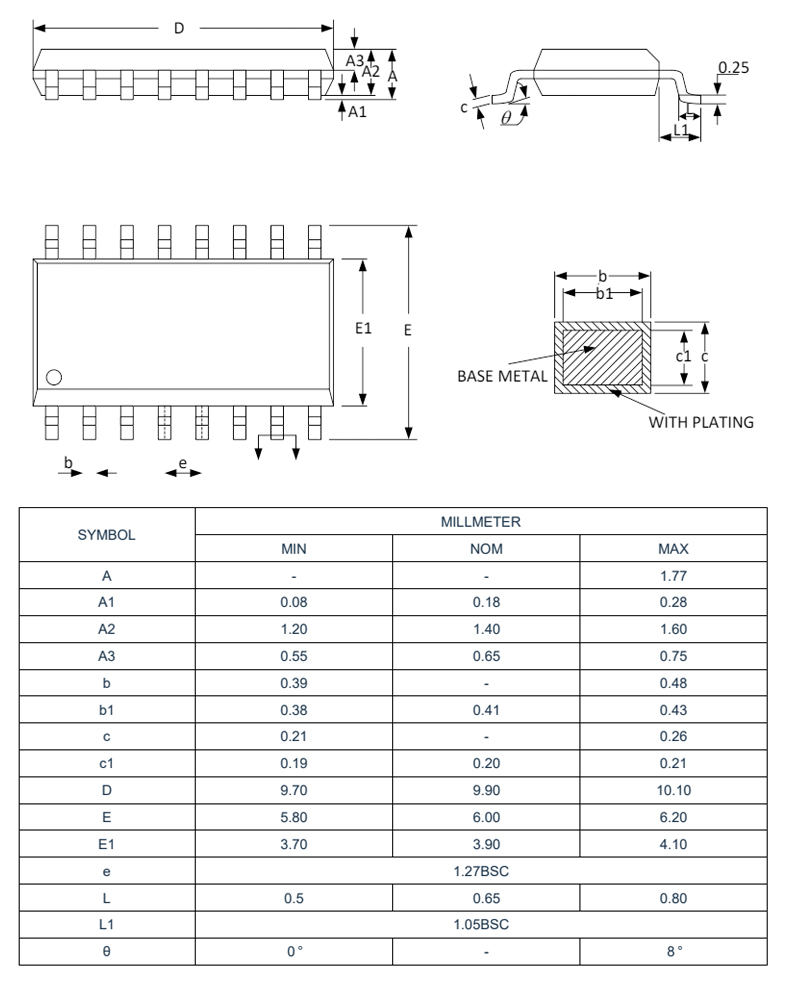

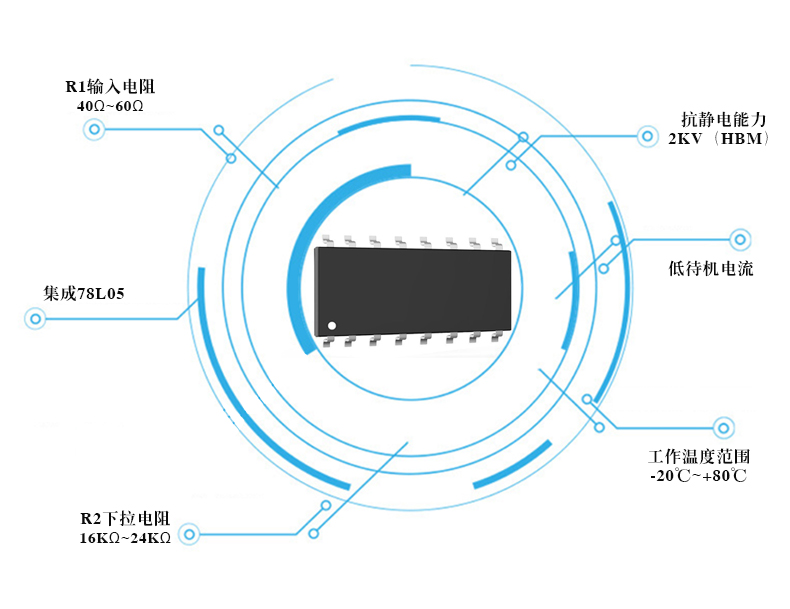

Xst-igbt-cms8324c power tube driving circuit includes 3-way NMOS power tube driving circuit and 3-way PMOS power tube driving circuit. 78l05 three terminal voltage regulator is integrated in the circuit, which can provide stable 5V output power supply. When the working voltage of the circuit is 24V, the internal control circuit can make the shed voltage when the PMOS power tube is turned on about 12V (that is, the VGS voltage of the PMOS power tube is about - 12).
| (TA = 25 ℃, VM = 12V, nu = NV = NW = GND, all pins take GND as the reference point, unless otherwise specified) | |||||
| parameter | Test conditions | minimum value | Typical value | Maximum | Company |
| IVCC Quiescent current | VCC1=12V | 12 | 16 | 20 | mA |
| VO 78L05 output voltage | 4.8 | 5 | 5.2 | V | |
| 8V ≤ VI ≤ 16V 1mA ≤ IO ≤ 40mA | 4.75 | 5 | 5.25 | V | |
| 1mA ≤ IO ≤ 70mA | 4.75 | 5 | 5.25 | V | |
| VOI 78L05 Linear adjustment rate | 8V ≤ VI ≤ 16V | - | 32 | 150 | mV |
| VOL 78L05 Load adjustment rate | 1mA ≤ IO ≤ 100mA | - | 15 | 60 | mV |
| 1mA ≤ IO ≤ 40mA | - | 8 | 30 | mV | |
| TOTP 78L05 Over temperature protection | - | 150 | - | ℃ |
