SCM support internal 48mhz microcontroller unit XST-MCU-CMS8S5880
XST-MCU-CMS8S5880
minimum order
1 piece
Quantity
- Model Number:XST-MCU-CMS8S5880
- Type:microcontroller
- Place of Origin:Guangdong, China
- Brand Name:xunster
- D/C:20225880
- Brand:microcontroller
- Dormant current:20uA
- Input High:VDD V
- Output Low Voltage:0.4A
- Pull-up resistance:32KΩ
- Dropdown resistance:32KΩ

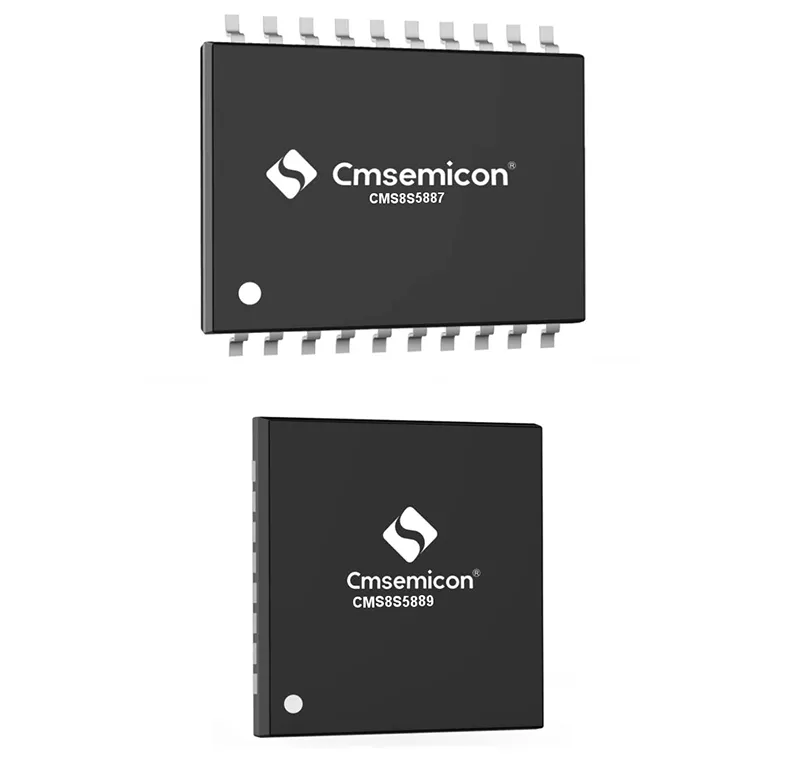

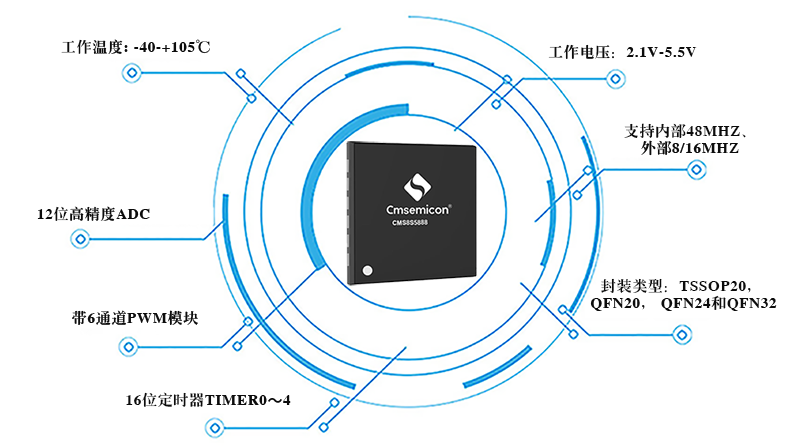

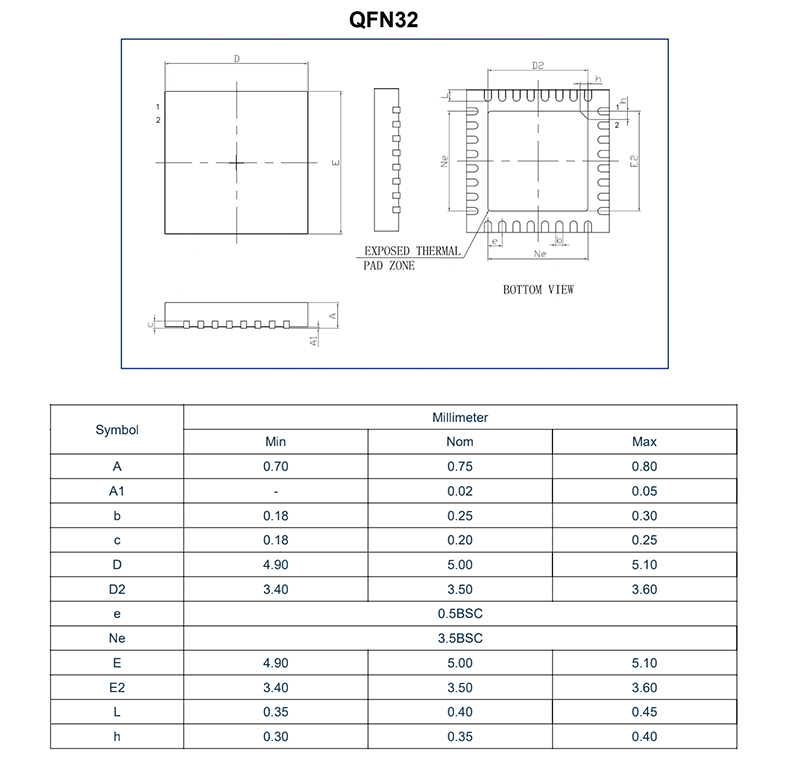

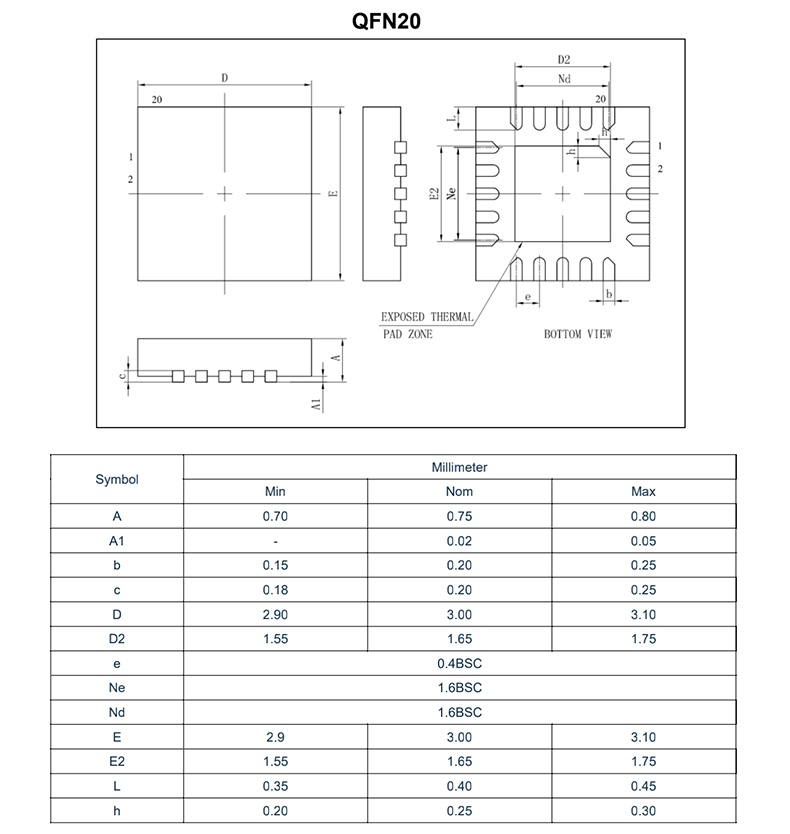

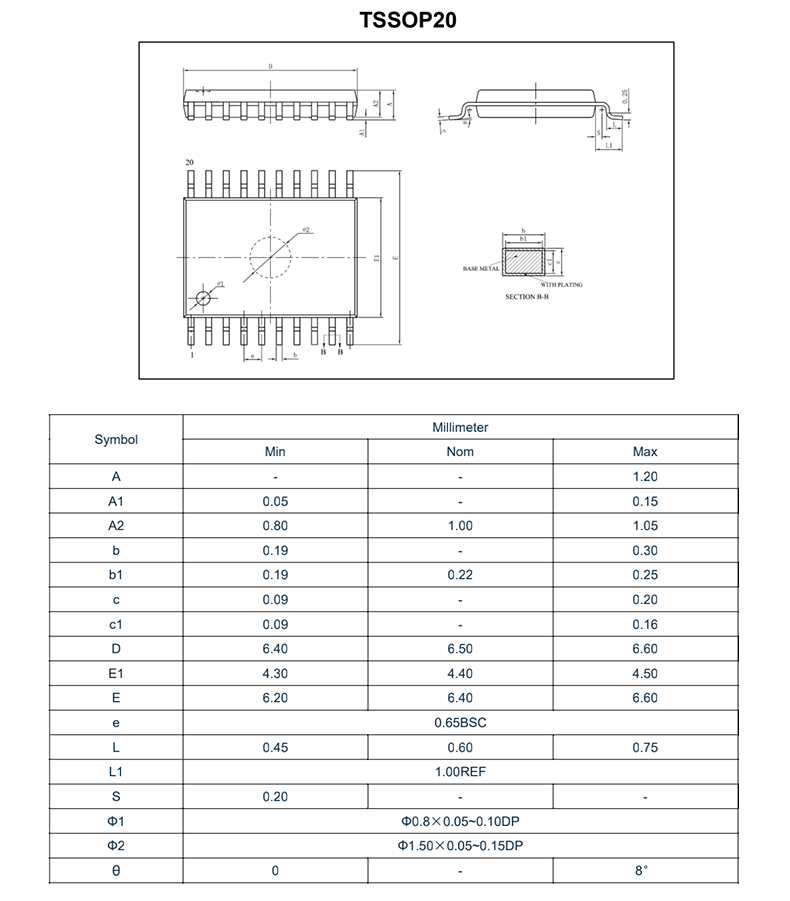

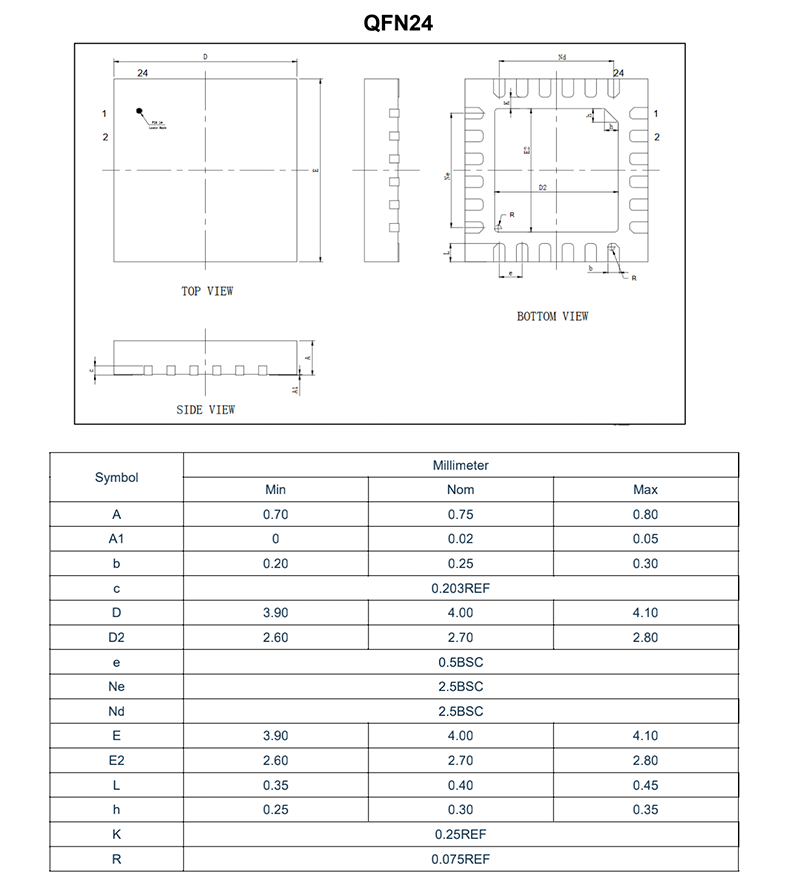

Xst-mcu-cms8s588x Series SCM support internal 48mhz, external 8 / 16mhz, built-in 5 16 bit timer, LSE_ Timer, wut, BRT, highly accurate 12 bit ADC up to 30 paths, with 6-channel PWM module, built-in 2-way USART module, support I2C and SPI module, with buzzer and CRC features.
| Symbol | parameter | Test conditions | minimum value | Typical values | Max | Unit element |
| VDD | working voltage | Fsys=48MHz, machine cycle=2T Fsys=8MHz~24MHz, machine cycle=1T | 2.1 | - | 5.5 | V |
| Idd | Normal mode | VDD=5V, Fsys=48MHz,All peripherals turn off machine cycle=2T | - | 7 | - | mA |
| VDD=3V, Fsys=48MHz,All peripherals turn off machine cycle=2T | - | 7 | - | mA | ||
| VDD=5V, Fsys=24MHz,All peripherals turn off machine cycle=1T | - | 5 | - | mA | ||
| VDD=3V, Fsys=24MHz,All peripherals turn off machine cycle=1T | - | 5 | - | mA | ||
| VDD=5V, Fsys= 16MHz,All peripherals turn off machine cycle=1T | - | 4 | - | mA | ||
| VDD=3V, Fsys= 16MHz,All peripherals turn off machine cycle=1T | - | 4 | - | mA | ||
| VDD=5V, Fsys=8MHz,All peripherals turn off machine cycle=1T | - | 3 | - | mA | ||
| VDD=3V, Fsys=8MHz,All peripherals turn off machine cycle=1T | - | 3 | - | mA | ||
| VDD=5V, Fsys=32.7678KHz,All peripherals turn off machine cycle=1T | - | 0.26 | - | mA | ||
| VDD=3V, Fsys=32.7678KHz,All peripherals turn off machine cycle=1T | - | 0.23 | - | mA | ||
| Idle mode | VDD=5V, Fsys=48MHz,All peripherals off | - | 5.5 | - | mA | |
| VDD=3V, Fsys=48MHz,All peripherals off | - | 5.5 | - | mA | ||
| VDD=5V, Fsys=24MHz,All peripherals off | - | 3.5 | - | mA | ||
| VDD=3V, Fsys=24MHz,All peripherals off | - | 3.5 | - | mA | ||
| VDD=5V, Fsys=16MHz,All peripherals off | - | 2.5 | - | mA | ||
| VDD=3V, Fsys=16MHz,All peripherals off | - | 2.5 | - | mA | ||
| VDD=5V, Fsys=8MHz,All peripherals off | - | 2 | - | mA | ||
| VDD=3V, Fsys=8MHz,All peripherals off | - | 2 | - | mA | ||
| VDD=5V, Fsys=32.768KHz, All peripherals off | - | 0.26 | - | mA | ||
| VDD=3V, Fsys=32.768KHz, All peripherals off | - | 0.23 | - | mA | ||
| ISLEEPI | Dormant current | VDD=3V,All peripherals off,LSE Timer enable | - | 20 | - | uA |
| ISLEEP2 | Dormant current | VDD=3V,All peripherals off,LSI,WUT Timer enable | - | 7 | - | uA |
| ISLEEP3 | Dormant current | All peripherals off | - | 6 | - | uA |
| Ili | Input leakage | - | - | - | 0.1 | uA |
| V|L | Input Low Level | - | VSS | - | 0.3VDD | V |
| V|H | Input High Level | - | 0.7VDD | - | VDD | V |
| Vol | Output Low Voltage | VDD=5V, Iol1= 18mA | - | - | 0.4 | A |
| VDD=3V, Iol1=12mA | - | - | 0.4 | V | ||
| Voh | Output High Voltage | VDD=5V, Ioh1=35mA | 3.5 | - | - | V |
| VDD=3V, Iol1=13.5mA | 2.1 | - | - | V | ||
| Rph | Pull-up resistance | - | - | 32 | - | KΩ |
| Rpl | Dropdown resistance | - | - | 32 | - | KΩ |
