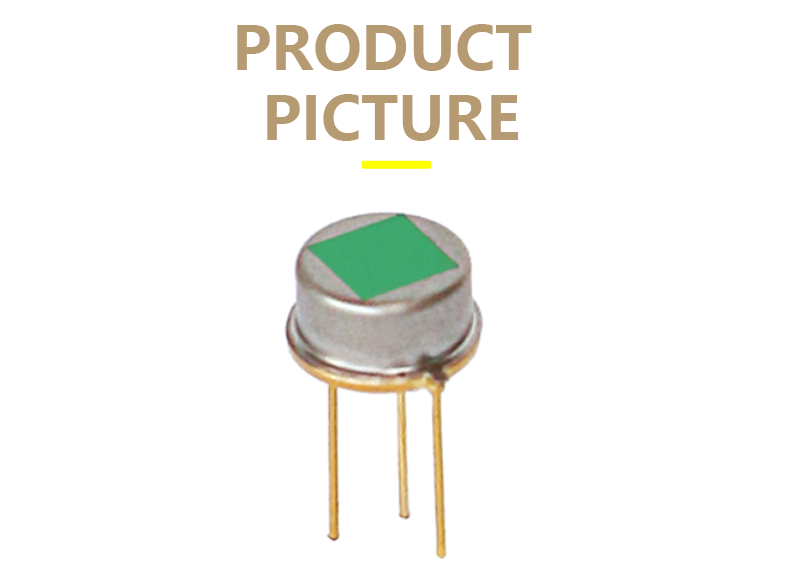

RD-913FB5 Digital Ligent Pyro-electric Flame sensor For Various Oil Storage Stations

• Model Number:XST-RD-913FB5
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Various Oil Storage Stations
• Brand:Pyro-electric Flame sensor
• Voltage - Supply:0.4~0.7V
• Output Type:3.6±10%V
• Operating Temperature:-30~+75℃
• Sensing Object:none
• Sensing Light:none
• Resistance Tolerance:none
• Sensing Temperature - Local:none
• Sensing Temperature - Remote:none
• Current Rating - AC:none
• Current Rating - DC:none
• Tolerance:none
• Voltage - Rated:none
• Flow Sensor Type:none
• Voltage - Input:none
• Application:none
• Output Function:none
• D/C:none
• Cross Reference:none

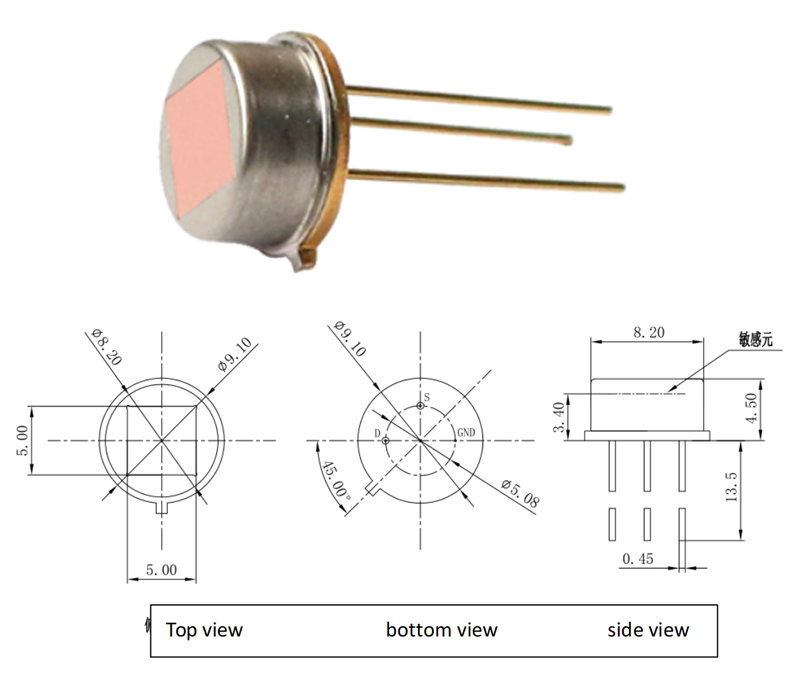

• Window Size:5.0*5.0mm
• Sensitive element size:2.5mm
• Filter center wavelength:4.45um
• Electrical time constant:5s
• Thermal time constant:200ms
• Recommended voltage:3~5V
• Output noise voltage VN:≤150mv
• Voltage response rate:≥500 v/w
• Detection distance:35~50 m
• Storage temperature:-40~+80℃

RD-913FB5 pyro-electric flame sensor uses lithium tantalate single crystal as the sensitive element material. The Curie temperature of lithium tantalate crystal material is above 600℃, the relative dielectric constant is small, and the specific detectivity is high. In a wide range of room temperature, the pyroelectric coefficient of the material changes very little with temperature, and the temperature change rate of the output signal is only 1-2‰. The temperature stability of the sensor performance is very good, and the spectral response consistency is very good in the wavelength range of 1-20um.

Features:
4.45um detection band;
TO-5 package, single channel, voltage mode;
Low microphone effect, large FOV, high detection rate;
Detection band measurement of flame signal;

Applications:
It’s widely used in various oil storage stations, large warehouses, factory workshops, forests, charging piles; and standard configuration for high fire risk areas such as petroleum, chemical, paper-making, forests, and garages. It also becomes popular in high-end residential, commercial, and general industrial fields.
