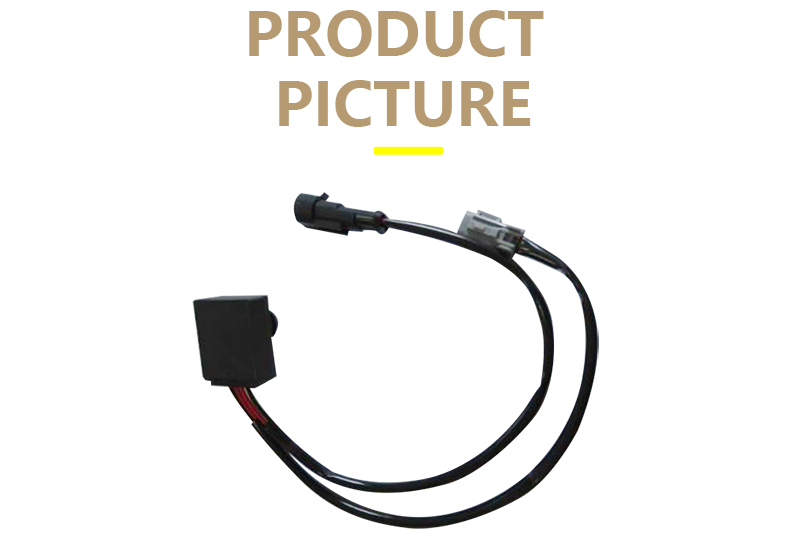

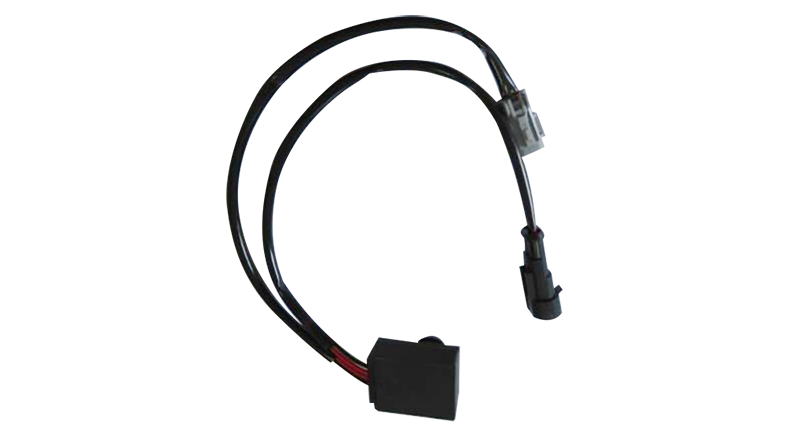

High accuracy 12V DC analog voltage Pressure Sensor
XST-GM-SV-P18
minimum order
1 piece
Quantity
- Model Number:XST-GM-SV- P18
- Type:Pressure Sensor,Датчик давления,圧力センサー,مقياس الضغط,Sensor de presión,Drucksensor,Capteur de pression,Sensore di pressione
- Place of Origin:Guangdong, China
- Brand Name:xunster
- Usage:Pressure control system
- Output:DC 12V
- Description:Pressure gauge controller

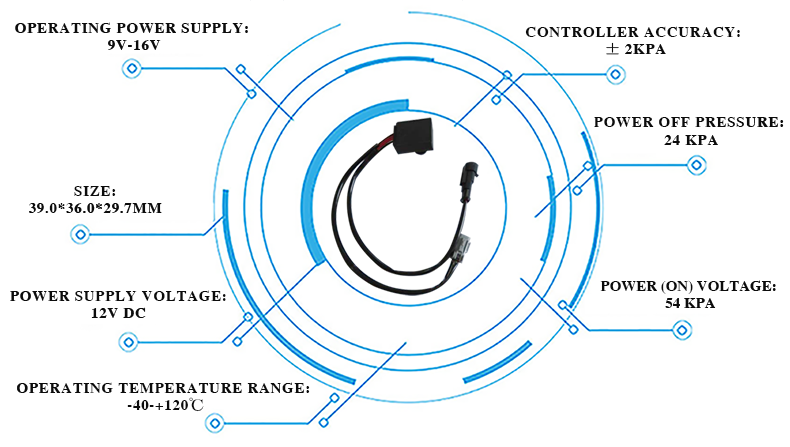

- operating power supply:9-16V
- Control the switch operating range:(OFF)24kPa,(ON)54kPa
- Controller precision:±2kPa
- Vacuum controller move:900000 cycles
- Circuit current bearing capacity:≤20A
- Working Temperature:-40~120℃
The XST-GM-The SV-P18 is developed and produced using a pressure sensor chip module and a special control signal processing integrated circuit chip, packaged in a plastic shell and protected by special glue.Each switch controller is subject with linear calibration and temperature compensation to ensure the accurate and stable operation of the vacuum pump without affected by the operating temperature.Standard power supply voltage is DC 12V.This product can be directly connected to the vacuum pump to control the vacuum pump start.
| Parameter | Min. | Typ. | Max | Unit | |
| operating temperature | -40 | 120 | ℃ | ||
| operating power supply | 9 | 16 | V | ||
| Control the switch operating range | (OFF)24kPa,(ON)54kPa | kPa | |||
| Controller precision | ±2 | kPa | |||
| Vacuum controller move | 900,000 | cycles | |||
| Circuit current bearing capacity | ≤20 | A | |||
