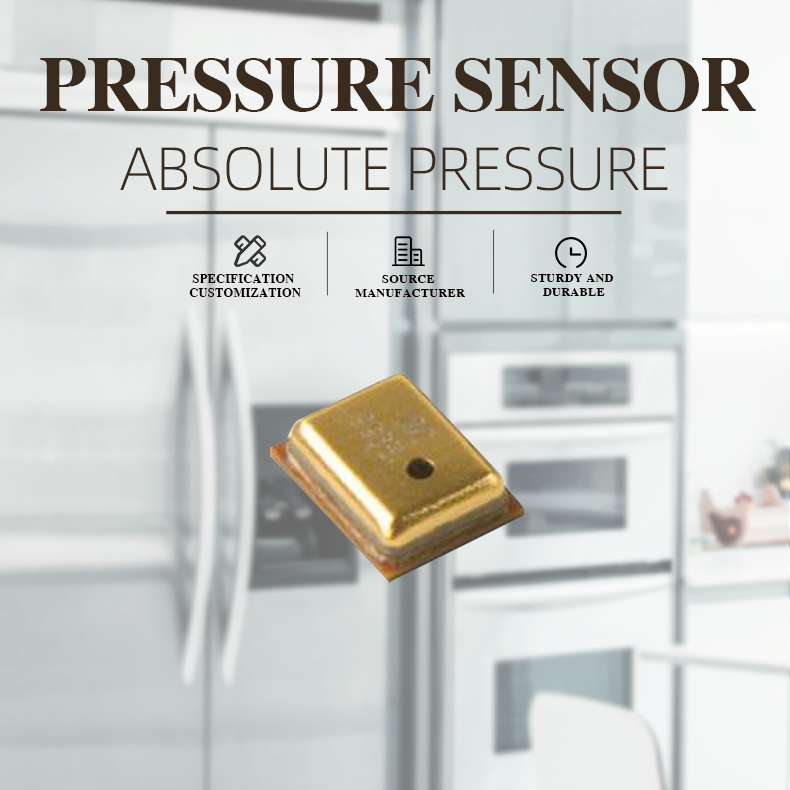

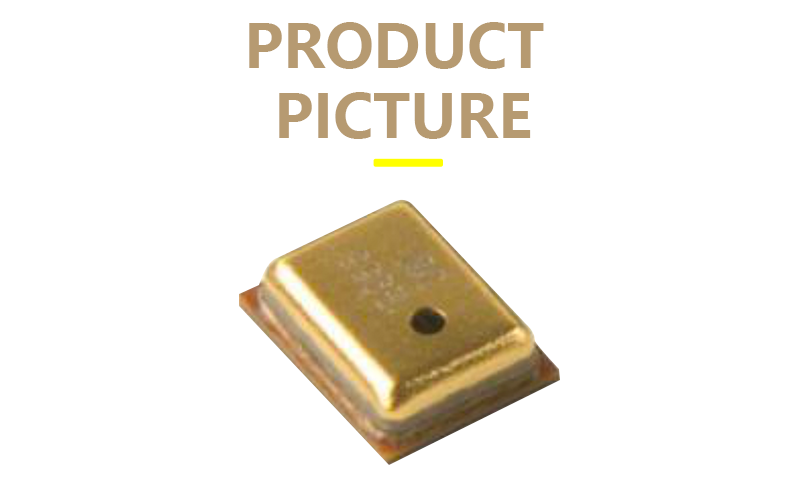

0-100kPa high MV output absolute pressure sensor XST-GM-SV-MAP-0100A for industrial pressure measurement
XST-GM-SV-MAP-0100A
minimum order
1 piece
Quantity
- Model Number:XST-GM-SV-MAP-0100A
- Type:ABSOLUTE PRESSURE SENSOR
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:Industrial pressure measurement
- Description:Absolute pressure sensor
- Operating voltage:5V
- working current:1mA
- Bridge resistor:4.5-5.5kΩ
- Full range output:90-130mV
- Zero point output:-20~20mV
- Degree of linearity:0.2-0.3%FS
- Stress hysteresis:0.2%FS
- Temperature hysteresis:0.3%FS
- Storage temperature:-40-150℃
- Overload pressure:3X kPa

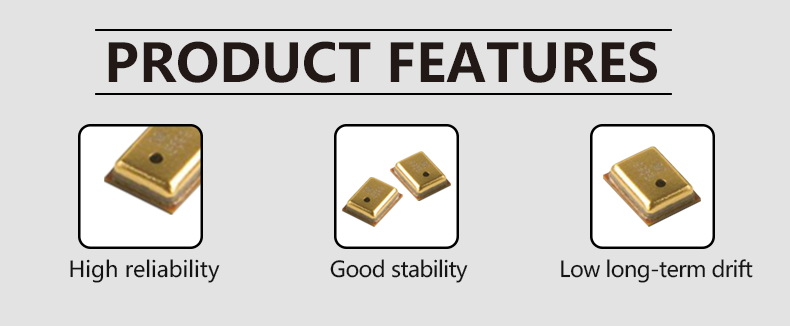

XST-GM-SV-MAP-0100A pressure pressure sensor internal chip made of microcomputer electric machining process, specially designed for low cost and long-term reliability pressure measurement, sensor internal neutral soft transparent silicone protection, can effectively prevent moisture; can be widely used in industrial pressure measurement and other fields.Using silicon microphone form packaging, specially designed structure and protection measures improve the measurement stability and the service life of the sensor.

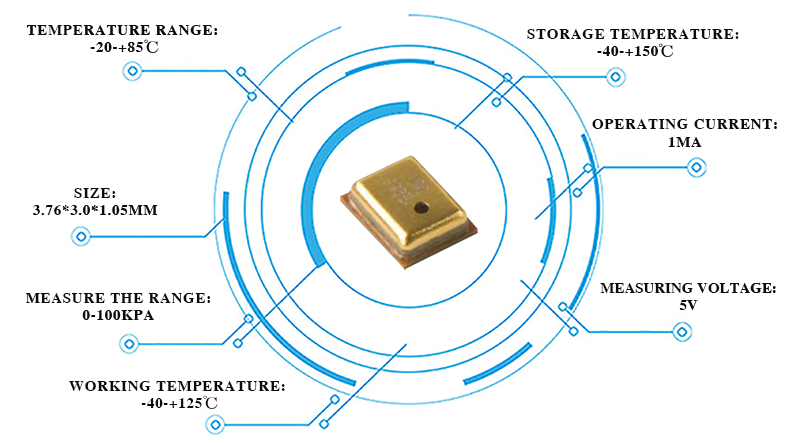

| Parameter | Min. | Typ. | Max | Unit | |
| Range | 0 | — | 100 | kPa | |
| Operating voltage / working current | — | 5/1 | — | V/mA | |
| Bridge resistor | 4.5 | 5.0 | 5.5 | kΩ | |
| Full range output | 90 | 110 | 130 | mV | |
| Zero point output | -20 | 20 | mV | ||
| Temperature coefficient | Zero drift | -0.1 | — | 0.2 | %FS/℃ |
| Sensitivity | -2.6 | -2 | -1.7 | 10-3/℃ | |
| Resistivity | 0.6 | 1 | 1.3 | 10-3/℃ | |
| Degree of linearity | — | 0.2 | 0.3 | %FS | |
| Stress hysteresis | — | — | 0.2 | %FS | |
| Repetitiveness | — | — | 0.3 | %FS | |
| Temperature hysteresis | — | — | 0.3 | %FS | |
| Working temperature | -40 | — | 125 | ℃ | |
| Storage temperature | -40 | — | 150 | ℃ | |
| Overload pressure | 3X | kPa | |||
