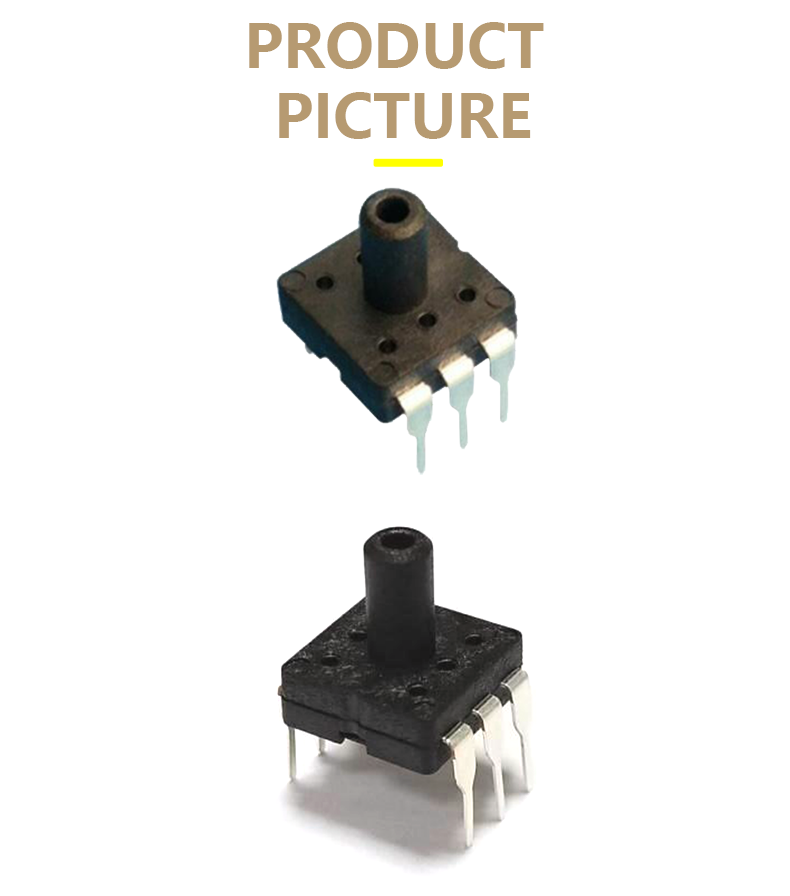

Digital I2C interface 24bit ADC Pressure Sensor Module for divers watches and water level pressure test

XST-GM-SV-DIP6-010D

minimum order

1 piece

Quantity

Contact Now

add to cart

Model Number:XST-GM-SV-DIP6-010D
Type:Pressure Sensor
Place of Origin:Guangdong, China
Brand Name:xunster
Usage:water level pressure test
Output:Digital I2C

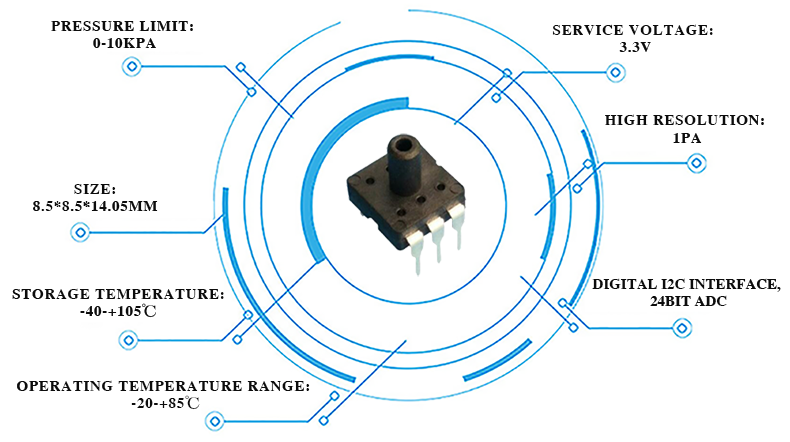

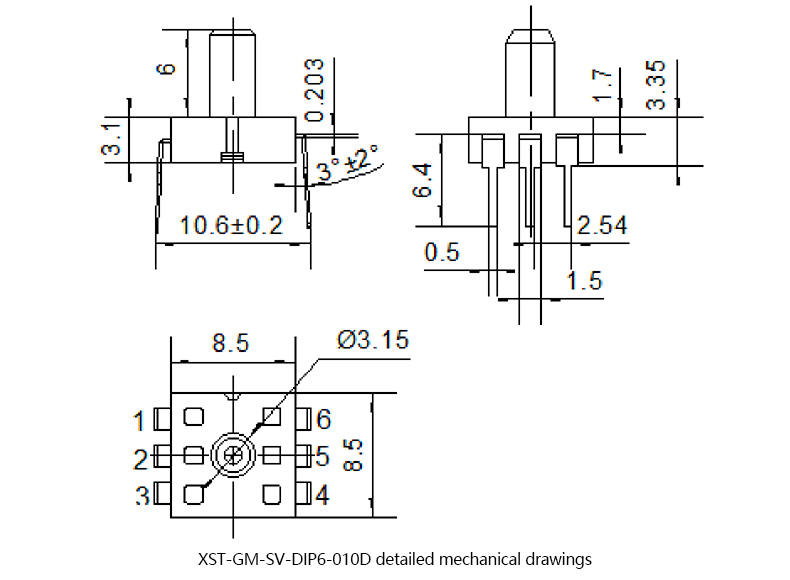

Description:Pressure Sensor
on-stream pressure:0-10kPa
service voltage:1.8-3.6V
Standby current:0.1uA
Pressure accuracy:±1.0%F.S
Temperature accuracy:±1.5℃
Serial data clock:3.4MHz

The XST-GM-SV-DIP6-010D is a digital output differential pressure sensor composed of MEMS piezoresistance pressure sensor chip and special signal conditioning chip.The ASIC includes the 24-bit Sigma-Delta ADC, the OTP memory, and the interface circuits.Pressure calibration and temperature compensation shall be achieved by an external microcontroller.Each module is compensated with a linear checksum temperature, so that its voltage output signal is linearly proportional to the input pressure, and it is not affected by the operating temperature

Parameter	symbol	condition			Min.	Typ.	Max	Unit
operating temperature	TA				-20		85	℃
on-stream pressure	P				0		10	kPa
service voltage	VDD				1.8	3.3	3.6	V
Current consumption (1 Hz)	Idd	work pattern	OSR_P	OSR_T				uA
		Ultra low power consumption mode	1024X	2048X		10
		Low power consumption mode	2048X			14
		standard mode	4096X			19
		High precision mode	8192X			28
		Ultra high precision mode	16384X			46
Standby current	Iddsbm	@25℃				0.1
Pressure / temperature measurement time	Tc	work pattern	OSR_P	OSR_T				ms
		Ultra low power consumption mode	1024X	2048X		13
		Low power consumption mode	2048X			19
		standard mode	4096X			31
		High precision mode	8192X			56
		Ultra high precision mode	16384X			105
ADC resolution ratio		pressure				24		Bit
ADC resolution ratio		temperature				16		Bit
Pressure accuracy	P_A	0~65℃				±1.0		%F.S
Temperature accuracy	T_A	0~65℃				±1.5		℃
Serial data clock	fI2C	I2C					3.4	MHz
