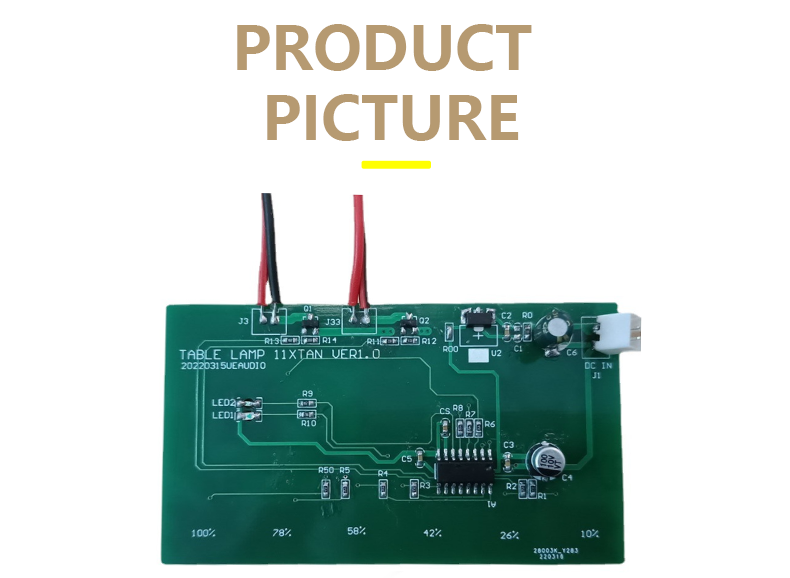

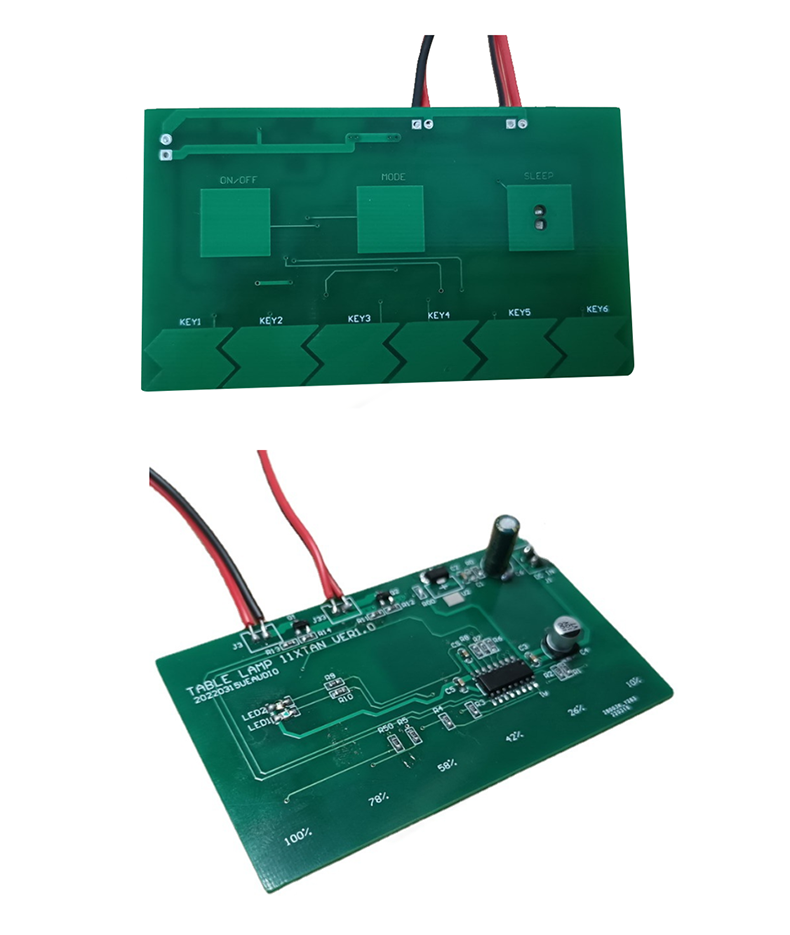

High power 18W touch sliding dimming table lamp circuit board LED color timing PCBA control board scheme

• Model Number:XST-PCBA-247
• Type:home appliance pcba
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Supplier Type:pcba assembly manufacturer
• Copper Thickness:3 oz
• power:3-18W
• Timing:30 minutes and 60 minutes
• Light source type:led
• Overall dimensions:90X70
• Number of layers:two-sided
• base material:copper
• Insulating material:Organic resin
• Insulation thickness:Conventional board
• Flame retardancy:VO board
• Processing technology:Electrolytic foil

Xunster provides:
·Professional PCBA (software and hardware customization, processing integration services);
·Customizing PCBA boards (SMT patch, AI plug-in,
DIP plug-in post soldering) according to customer's functional development requirements;
·Electronics OEM/ODM.

The company's products cover: smart home appliances, consumer electronics, electric vehicles, electric tools, industrial control medicine, instruments and meters, artificial intelligence, robots, new energy, electric equipment and other directions.

Scheme design service process

1.User demand
2.Technical confirmation
3.easibility confirmation
4.Product structure diagram provided by the customer
5.Hardware engineer schematic drawing board
6.BOM Writer
7.Template making
8.Welding template
9.Test sample
10.Sample sending confirmation
11.Template confirmation
12.No error confirmed
13.Place an order
14.Satisfactory repurchase
