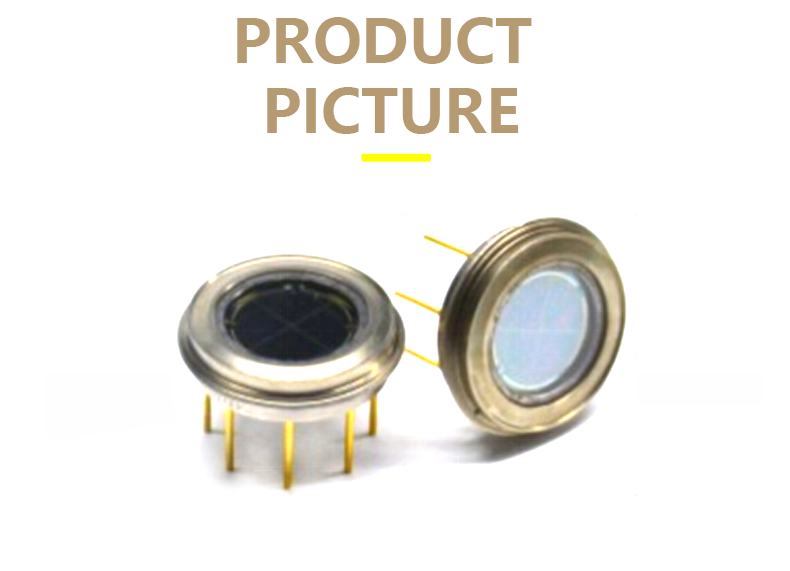

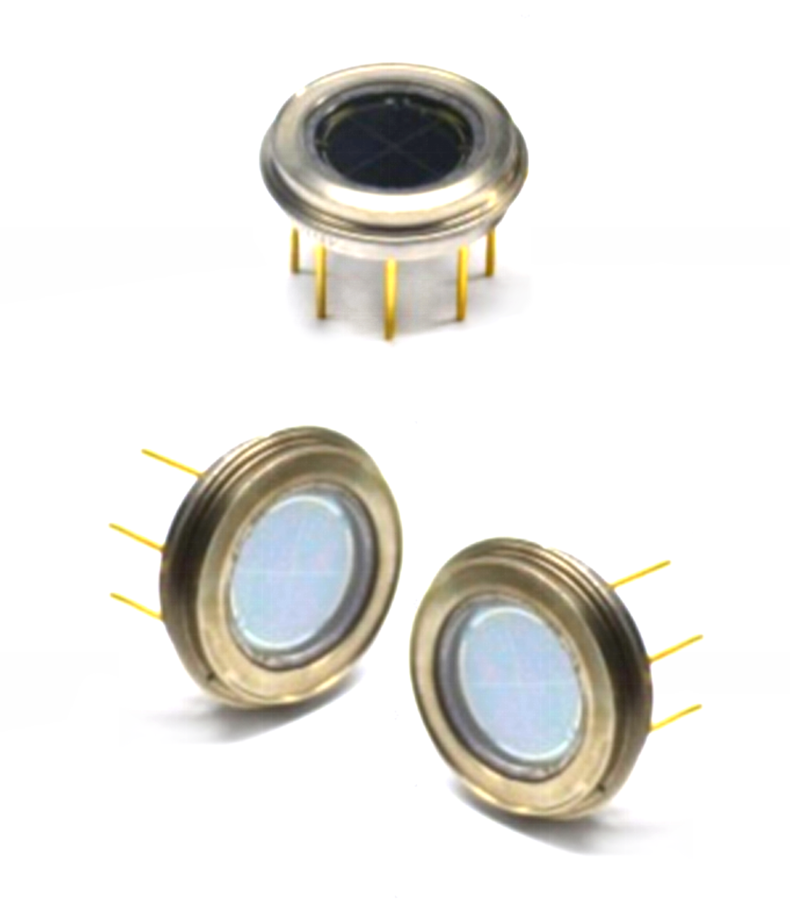

XST-81414-1 14mm Four-quadrant Optoelectronic Detector For Laser Positioning Displacement Monitoring

• Model Number:XST-81414-1
• Type:Laser Diode
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Package Type:Through Hole
• Max. Forward Voltage:80V
• Brand:14mm Four-quadrant Optoelectronic Detector
• Operating Temperature:-55~+125℃
• Mounting Type:Through Hole
• Diameter of photosensitive surface:14mm
• Spectral response range:400-1100nm
• Working voltage:50V
• The responsivity:0.3μA/μW
• Junction capacitance:20pF
• Rise time:20ns
• Dark current:0.1μA
• Reverse breakdown voltage:100V

Introduce
The four-quadrant photodetector is mainly based on the advanced semiconductor process production line owned by the company, using high-resistance silicon single crystal material as the chip substrate, quadrants anti-crosstalk independent patented technology design and production method, independent design and production of sensor chip; In addition, the unique shell production and packaging technology, improve the component anti-overload and electromagnetic interference ability. The device has a spectral response range of 400nm to 1100nm, featuring high responsiveness, low dark current and high reliability.

Features
Photosensitive surface: Φ14mm, Φ16mm
High responsiveness: ≥0.3μA/μW
Low dark current: ≤100nA
Small junction capacitance: ≤20pF
Low cross talk: ≤3%
High uniformity, high consistency
Small blind area, high sensitivity
Stable and reliable performance

Application
Laser guidance
Laser tracking, positioning, ranging
Other photoelectric detection
