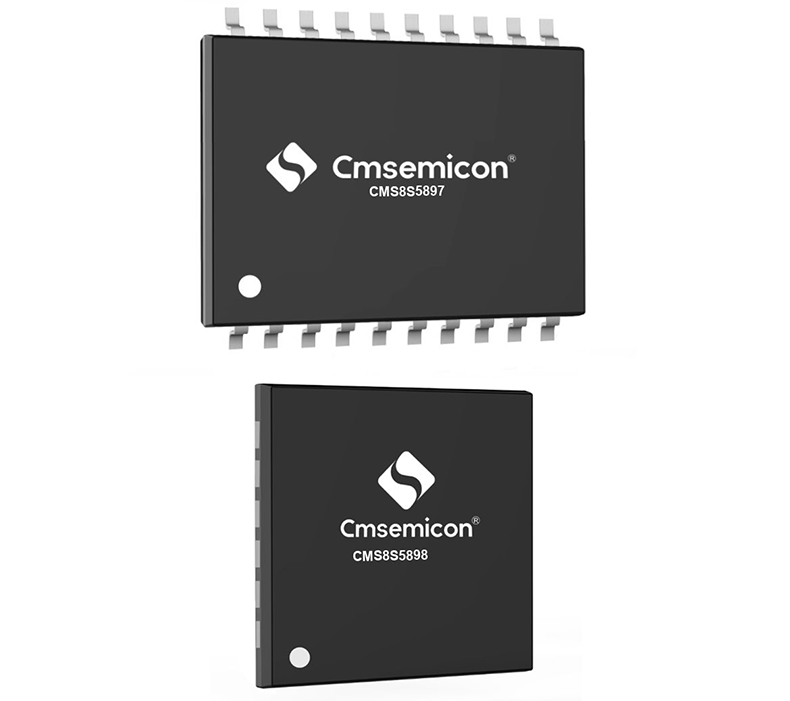

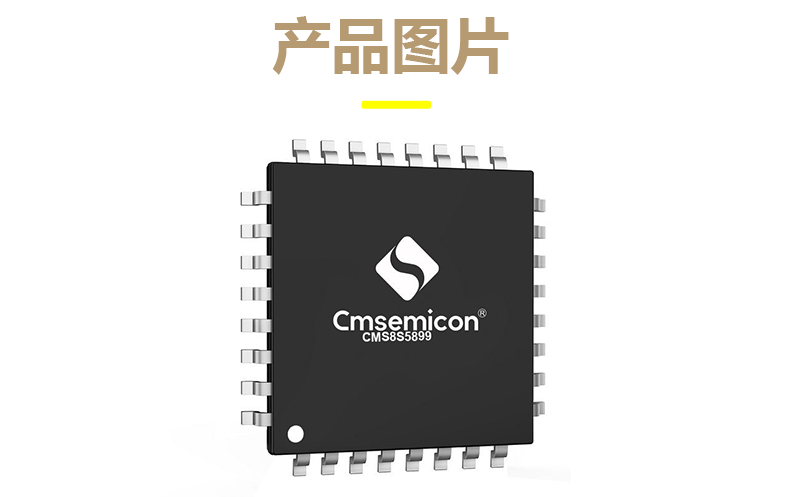

Microcontroller unit XST-MCU-CMS8S5897 8-bit control chip based on 8051 core single-chip microcomputer

• Model Number:XST-MCU-CMS8S5897
• Type:microcontroller
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• D/C:202225897
• Brand:microcontroller
• Voltage - I/O:2.1V-5.5V
• Dominant frequency:48MHz
• Working voltage:2.1V
• GPIO:30
• ADC:12
• Working temperature:-40℃

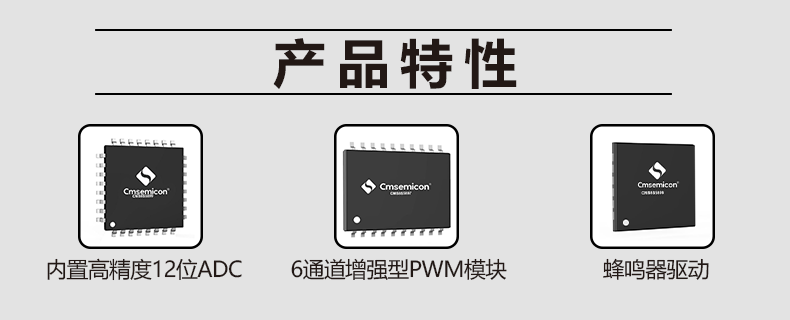

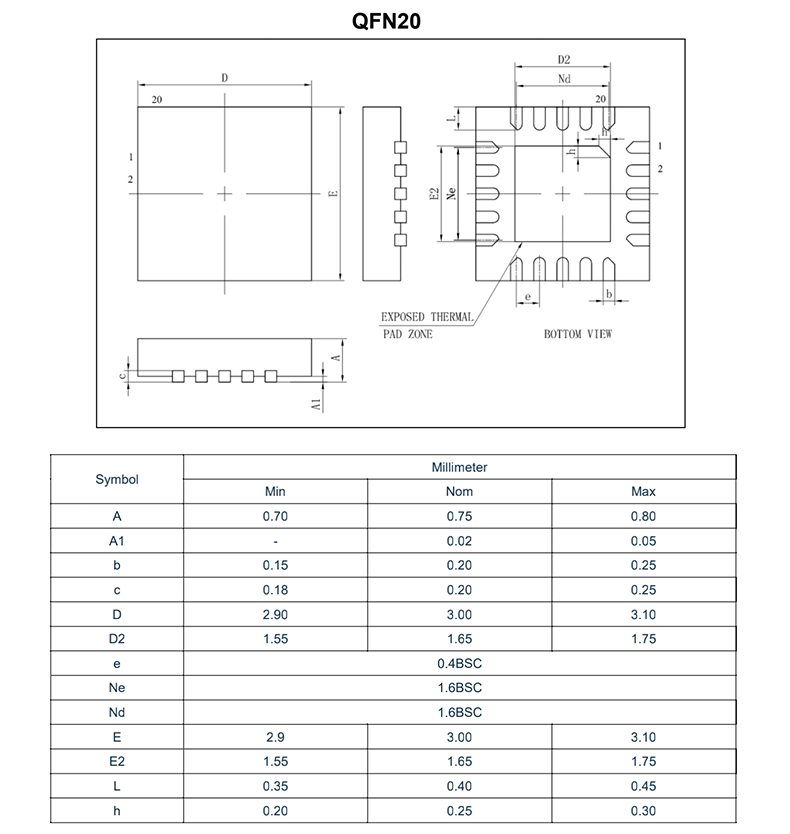

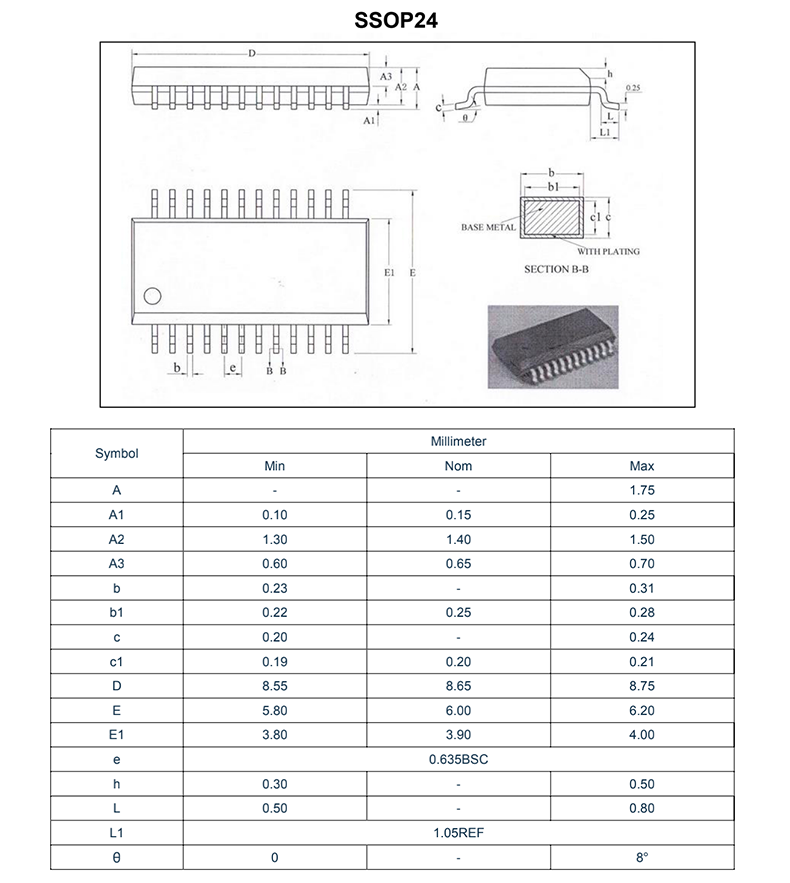

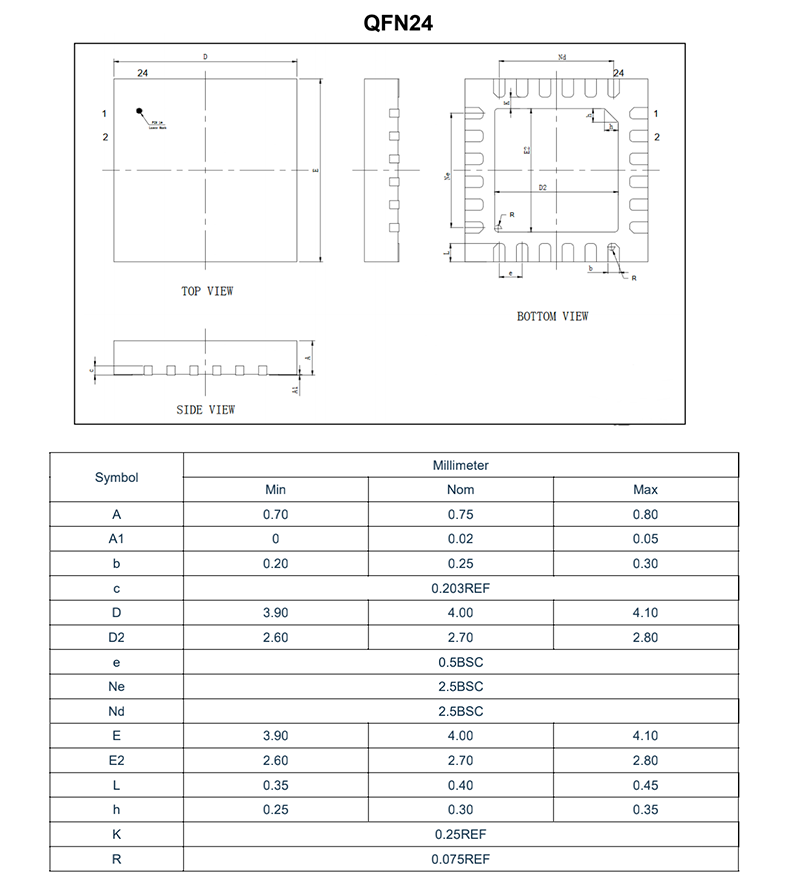

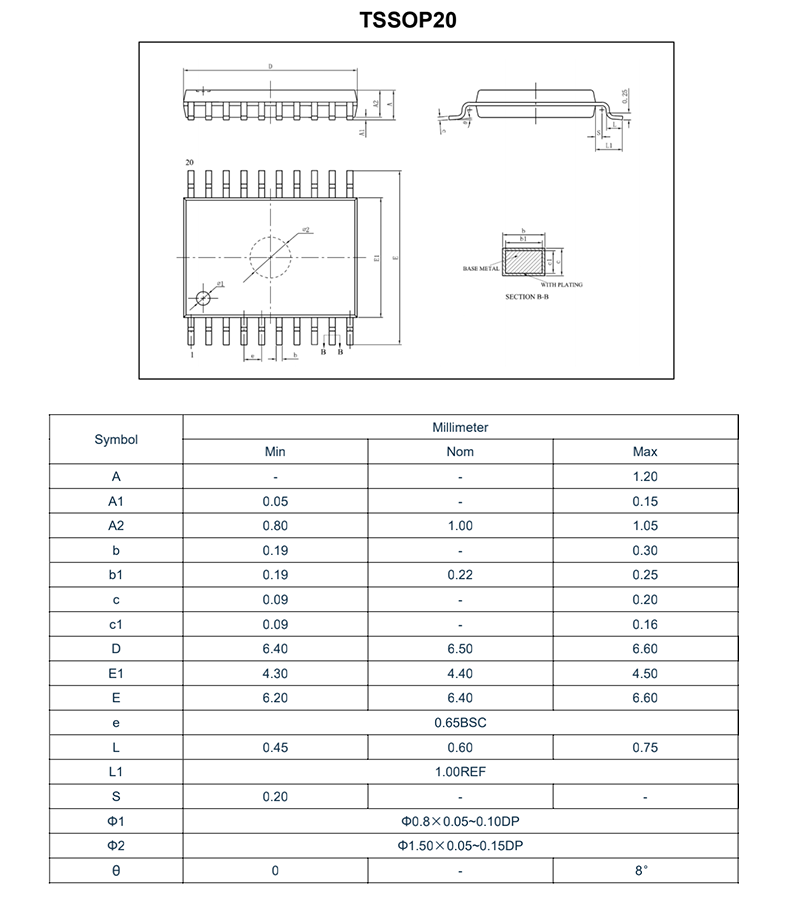

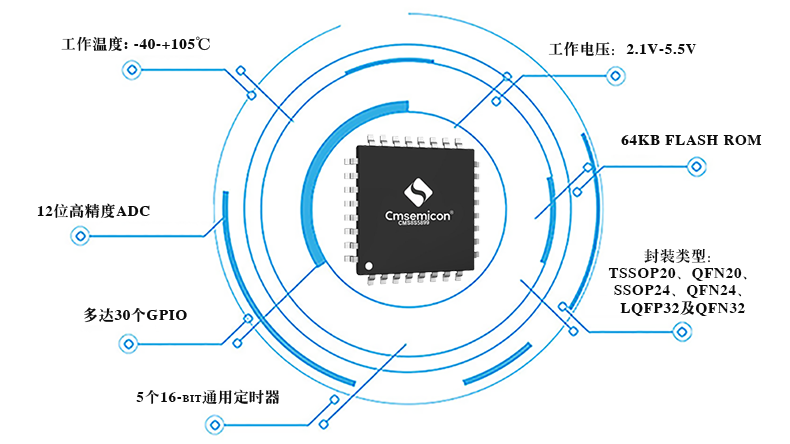

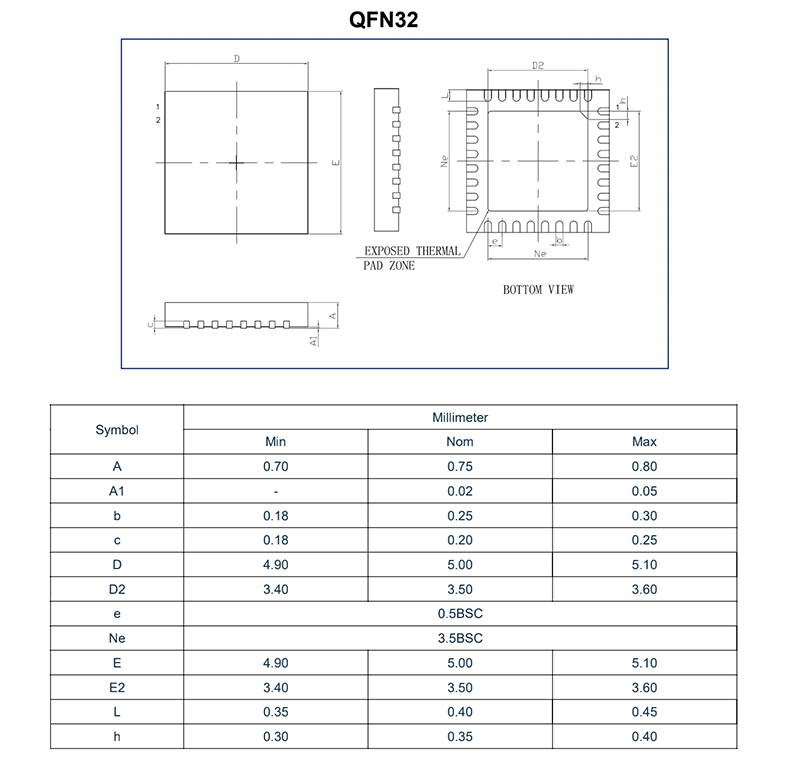

Xst-mcu-cms8s589x Series MCU is an 8-bit control chip based on 8051 core. The main frequency is up to 48mhz; Working voltage: 2.1V to 5.5V; 64KB flash memory, 4.25kb SRAM and 4KB data flash are provided; Up to 30 gpios; Built in high-precision 12 bit ADC; Buzzer drive; Five 16 Bit Universal timers; In terms of communication interface, two UARTS, one SPI and one I2C are provided; Industrial standard design, can work at - 40 ℃ to 105 ℃; A variety of packages are available.
