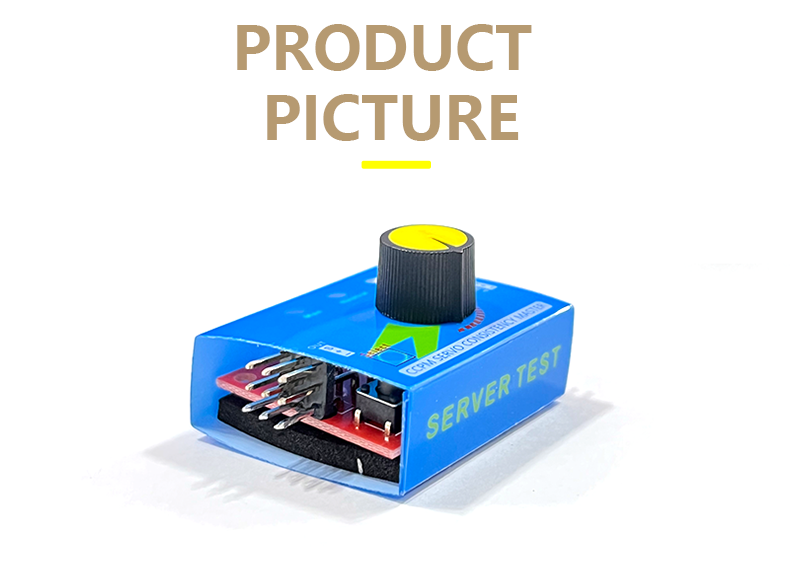

Simple Steering Gear Tester RC Servo Tester 3CH Digital Multi ECS Consistency Speed Controller Checker

• Model Number:XST-MZ-141
• Type:Other
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Application:Simple steering gear tester
• Output:≤15mA (5.0)
• Input:DC 4.2-6.0V
• Output signal:1.5ms ± 0.5ms
• Size:46*32*17mm
• Weight:8G
• Adjustment method:manual, automatic, median

Simple steering machine Titan tester tester three gear switching belt indicator lights

Product specifications:

(1) Output: ≤15mA (5.0)

(2) Input: DC 4.2-6.0V

(3) Output signal: 1.5ms ±0.5ms

(4) Size: 46*32*17mm

(5) Weight: 8G

(6) Adjustment method: manual, automatic, median.

Features:

It can easily detect and set the deficiency, jitter and medium position of the server.

Can be connected to two sets of steering gear or electrical; single -chip microcomputer control, good stability and high accuracy. Rotate the knob to detect the engine.

If you can connect to the electronic speed regulator (brush or brush), you can get rid of the remote control device for manual speed regulation, for test adjustment

The performance of the speedor or motor is very practical, so you no longer need to connect the remote control and the receiver. It is equivalent to a"hand

The function of the dynamic receiver"simulates the rudder through the knob.

Instructions for use:

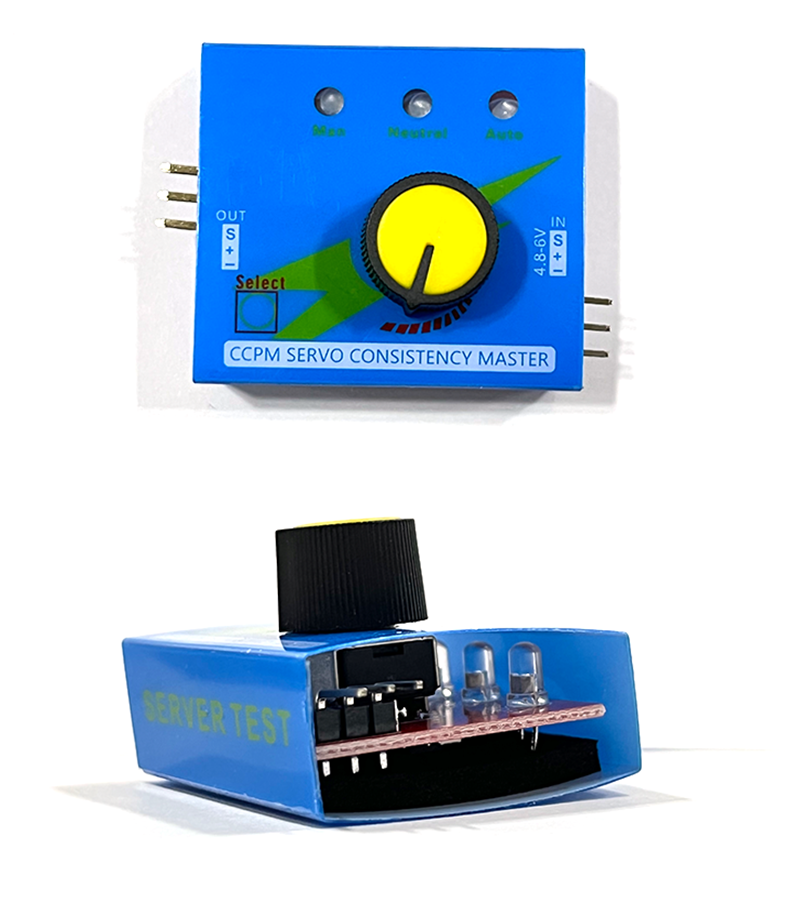

Refer to the picture below, the left side is connected to the machine, divided into 3 groups, and 3 steering gear can be connected; the right row of the single row needle is connected to the power supply, and the edge is close to the negative electrode (can be seen). Do not connect, if the power supply is connected, the IC will be burned; When the power is connected, the blue lamp will light up at the same time, and then only the first one on the left. For manual adjustment of the potentiometer test, press the button, the middle light is on, for the return of the return; the third light is on, automatic testing. The connection method of the testing electrical adjustment is the same as the steering gear, but the input terminal should not be connected to the power supply. Test the motor must be connected to the electrical first, just like the electrical tone!
