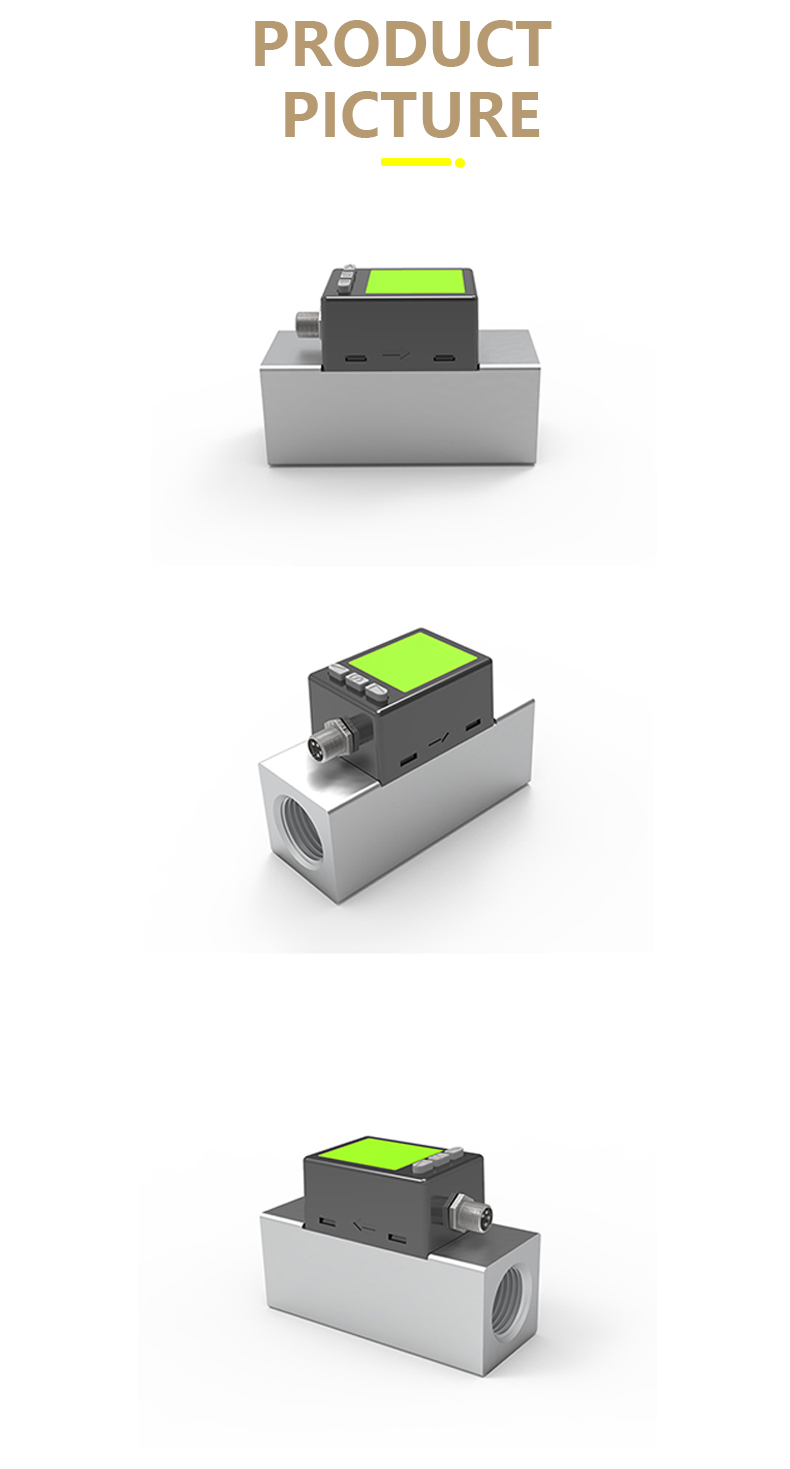

Xunster RS485 Mass Flow Meter LCD display thermal mass flow meter for university scientific research

• Model Number:XST-LL-AMS2000
• Type:MASS FLOW SENSOR
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Measure mass flow
• Description:Mass flow
• Measurement range:0~500L/min(standard)
• Accuracy:±3%FS
• Measured gas temperature range:0~50℃
• Working voltage:external 9~24V DC
• Max working pressure:0.8MPa
• Communication mode:RS485

The AMS2000 is a thermal mass flow sensor that calculates the mass flow of the measured gas by measuring the change in resistance.The sensor adopts the self-developed MEMS mass flow chip,which is intuitive,accurate, stable,and has the characteristics of high and low temperature resistance,good linearity,and fast response time.
