5V 1mA all silicon structure MEMS pressure sensor SOP6/DIP6 packaging for automotive electronics
XST-YL-LWP2010S
minimum order
1 piece
Quantity
- Model Number:XST-YL-LWP2010S
- Type:Gauge Pressure Sensor
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:automotive electronics
- Output:5-10V,1mA
- Description:Pressure Sensor
- range:10,100,200,1000kPa
- Bridge arm resistance:4.5-5.5kΩ
- zero offset:-10~10mV
- Full range output:55-90mV
- nolinear:0.1-0.2%FS
- resistance temperature coefficie-nt:1500-2500ppm /℃
- stability:0.2%FS/Y
- working temperature:-45~125℃
- storage temperature:-55~150℃
1. Product profile
The XST-YL-LWP 2XXX series pressure sensor is an all-silicon structure MEMS pressure sensor, the external ambient temperature-45℃ ~ 125℃, can achieve the accurate measurement of the pressure, and presents a good linear relationship with the output voltage. This series of pressure sensor pick

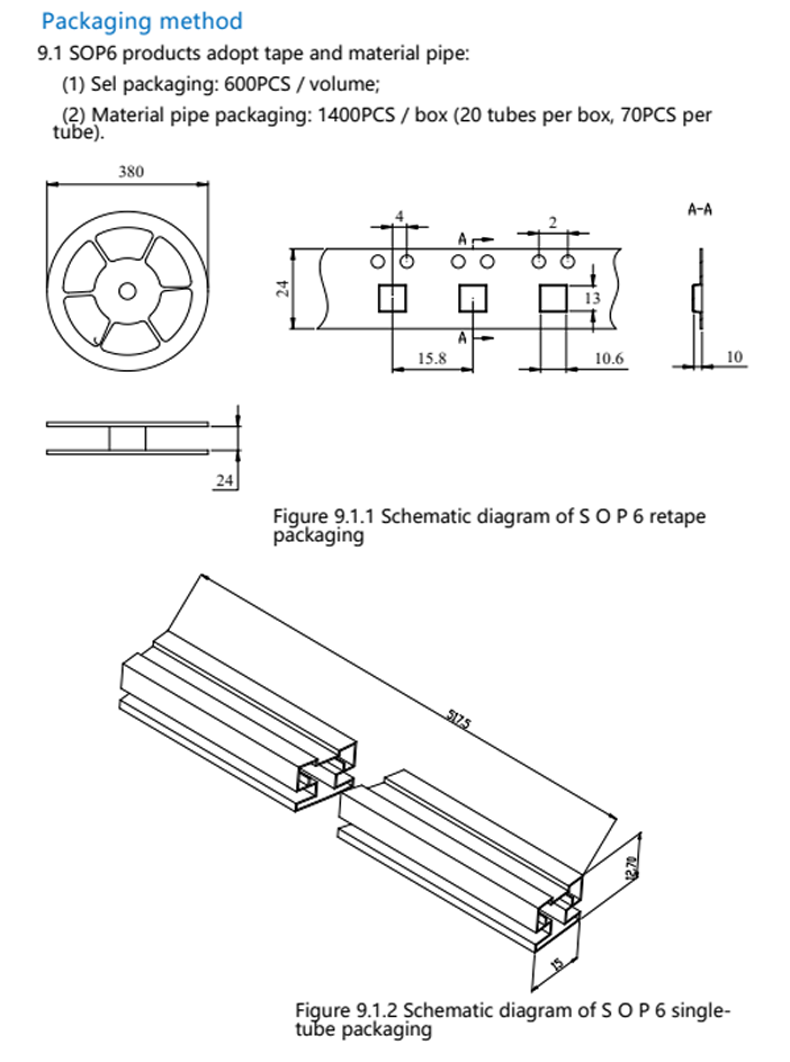

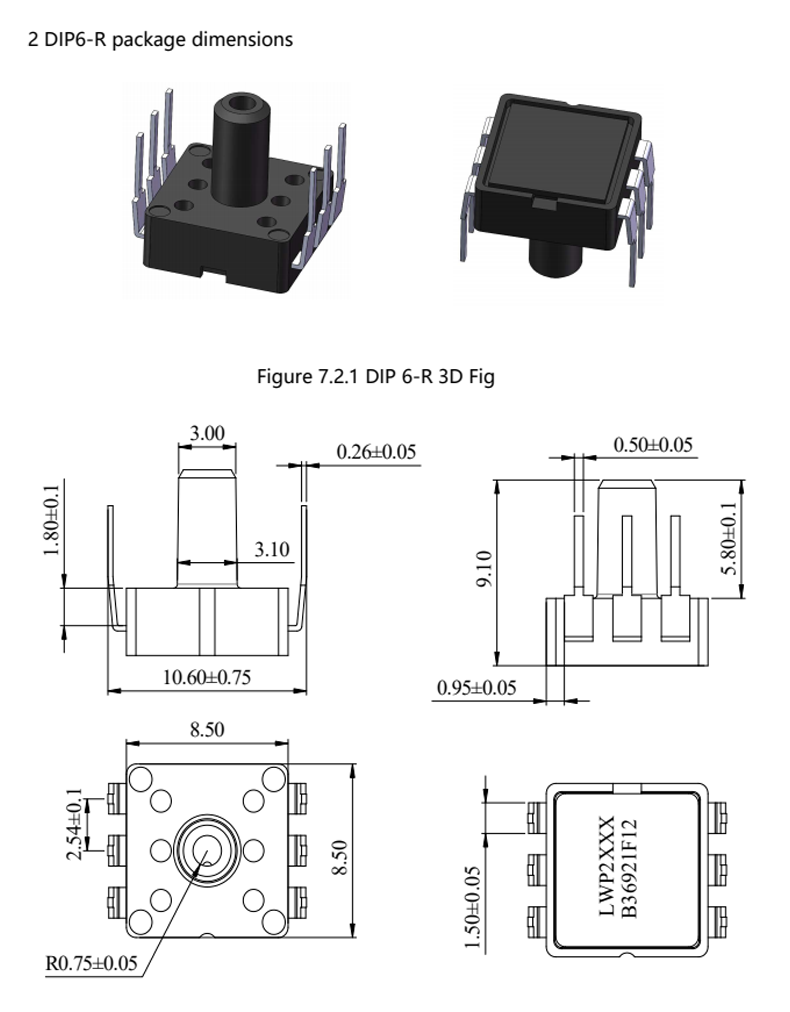

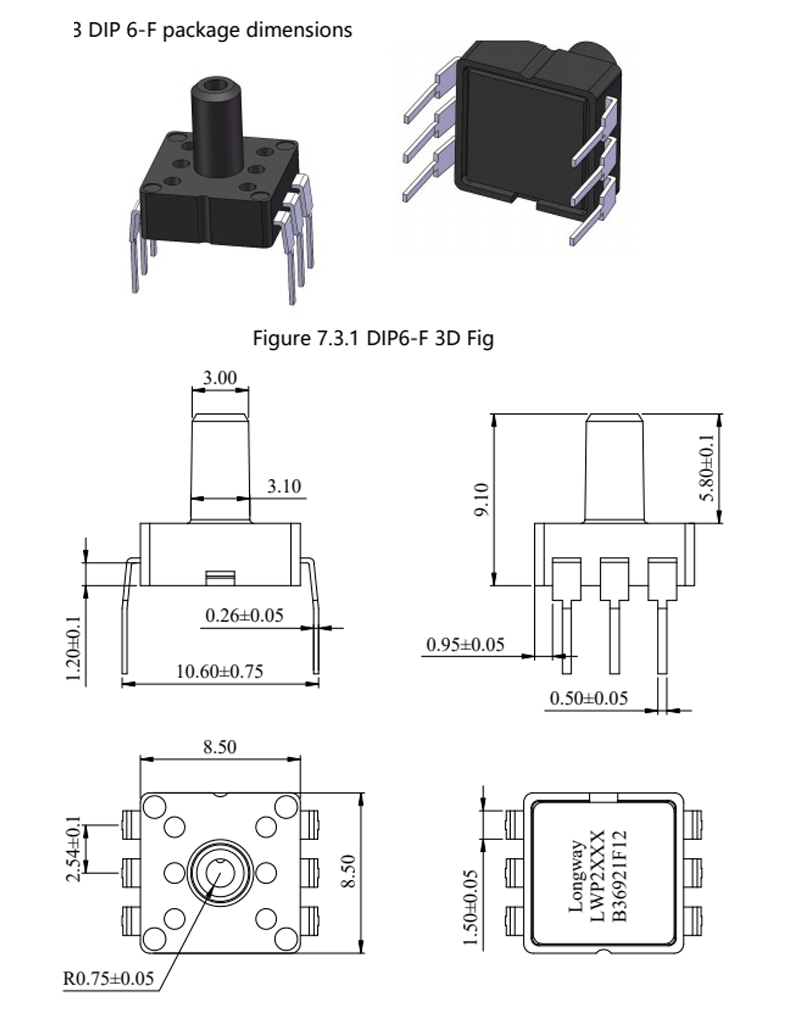

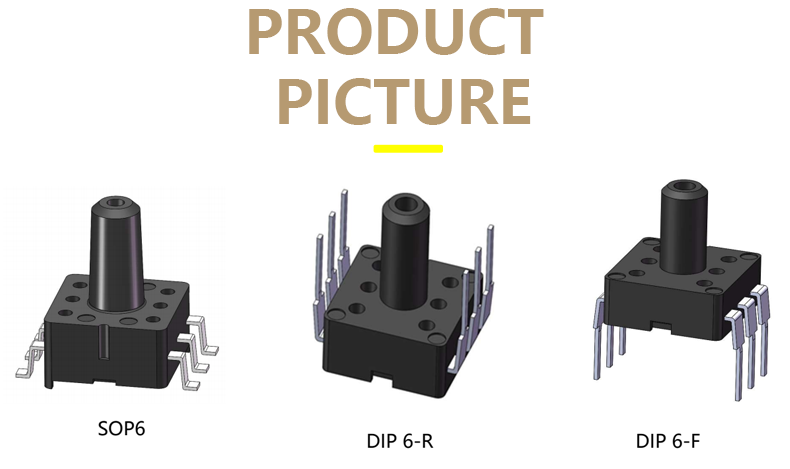

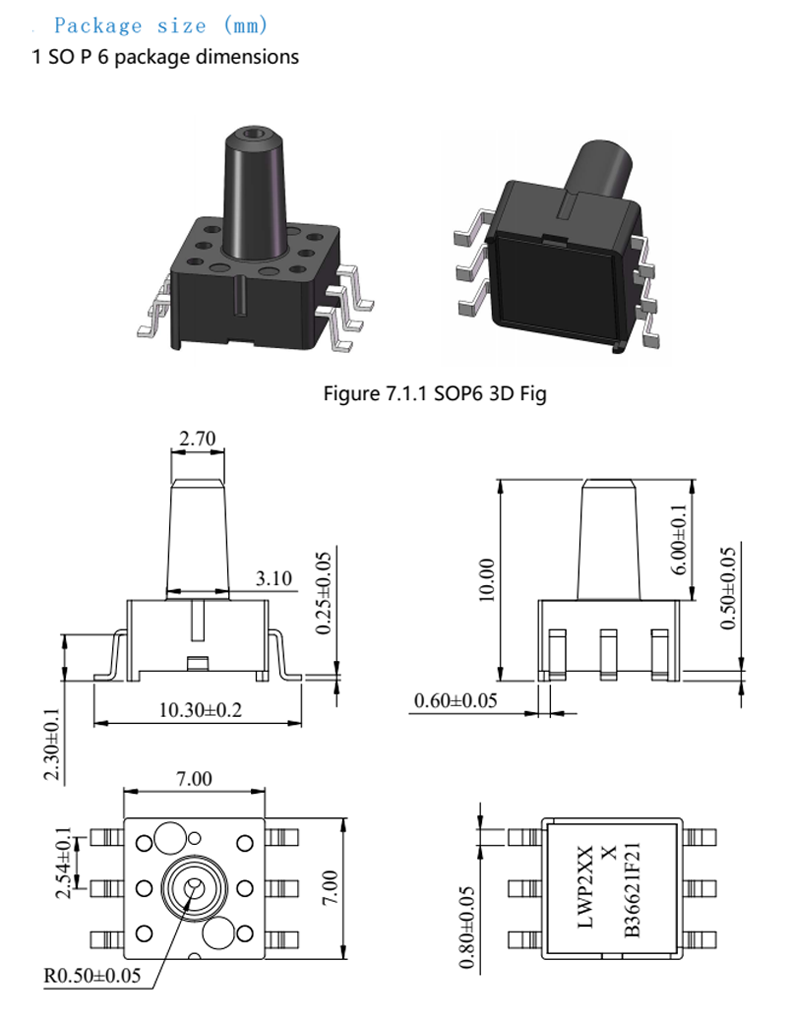

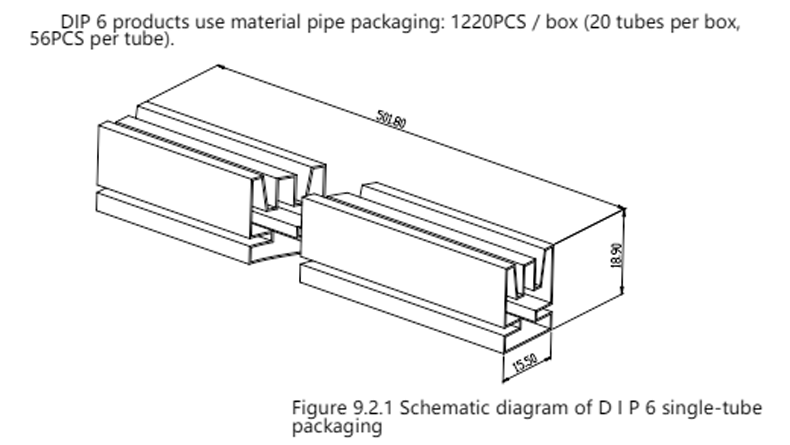

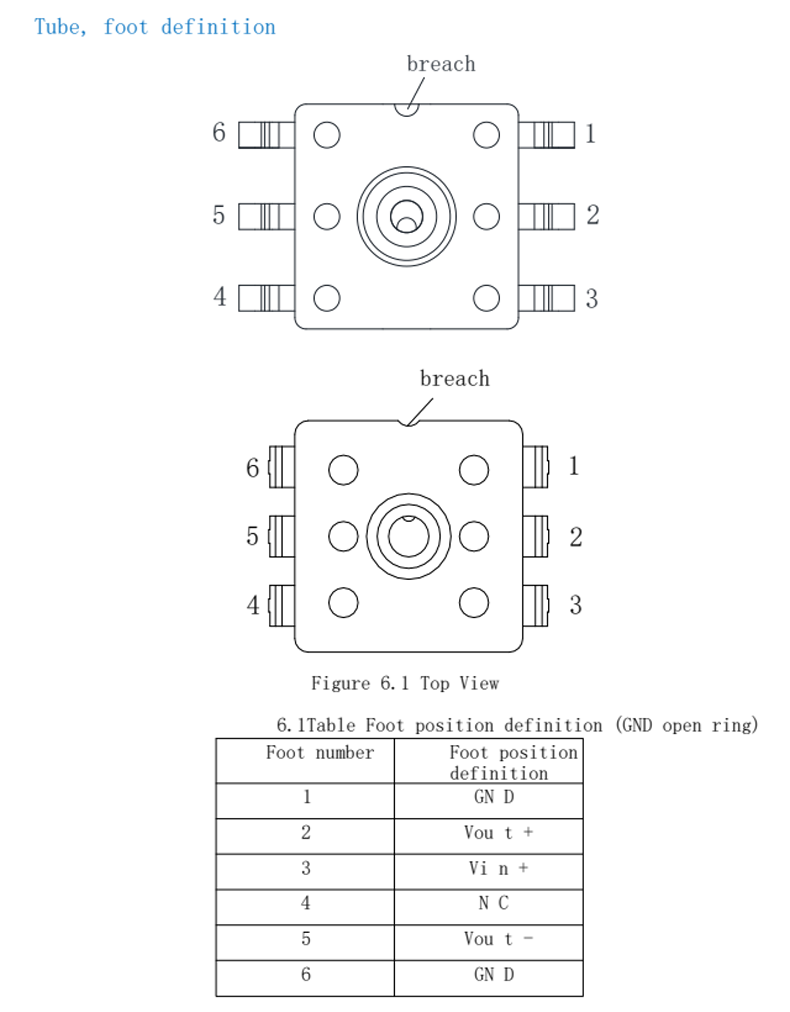

With open ring detection, SOP6, DIP6 packaging, broaden the product application mode.
2. Product characteristics

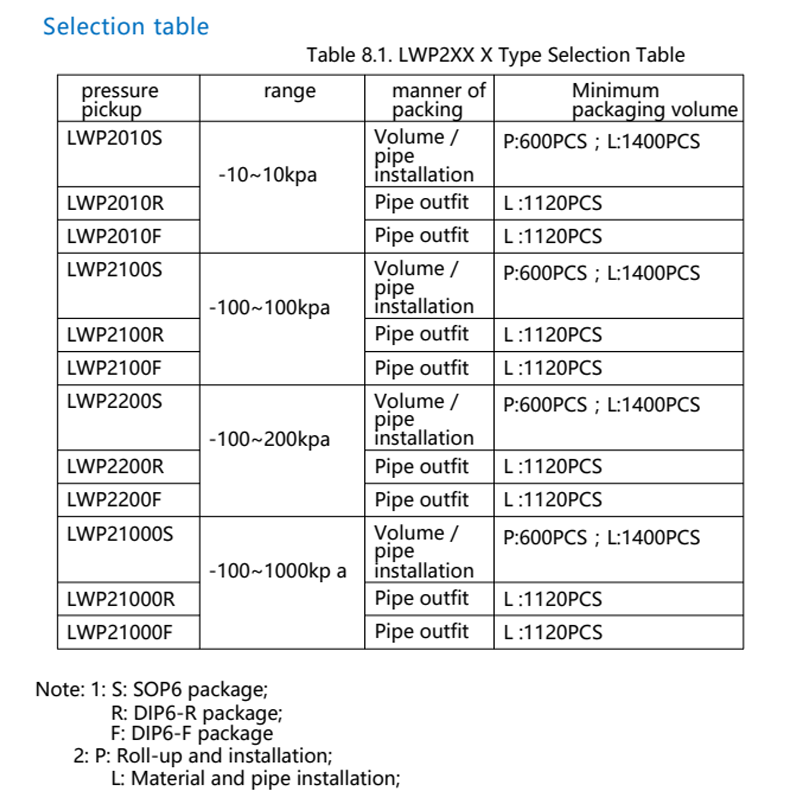

Range: -10~10kPa, -100~100kpa, -100~200kpa, -100~1000kpa
Pressure type: gauge pressure
High sensitivity
High reliability
High stability
Constant voltage source or constant current source power supply
Low cost
3. Product application
Armamentarium
Home electronics
Industrial computer
Automotive electronics
| Parameter | Min. | Typ. | Max | Unit | remarks | |
| service voltage | — | 5 | 10 | V dc | ||
| supply current | — | 1 | — | mAdc | ||
| range | 10,100,200,1000 | kPa | ||||
| Bridge arm resistance | 4.5 | 5 | 5.5 | kΩ | ||
| zero offset | -10 | 0 | 10 | mV | ||
| Full range output | 55 | 70 | 90 | mV | ||
| nolinear | 0.1 | 0.2 | %FS | |||
| Zero-point output temperature coefficient TCO | -0.08 | -0.03 | 0.08 | %FS/℃ | Constant pressure mode | |
| -0.08 | -0.04 | 0.08 | %FS/℃ | Constant flow mode | ||
| Output temperature coefficient TCS at full range | -0.27 | -0.22 | -0.17 | %FS/℃ | Constant pressure mode | |
| -0.03 | ±0.02 | 0.03 | %FS/℃ | Constant flow mode | ||
| resistance temperature coefficie-nt | 1500 | 2000 | 2500 | ppm /℃ | ||
| stability | 0.2 | %FS/Y | ||||
| slow-moving | — | 0.05 | 0.1 | %FS | ||
| overload capacity | 3 x base range | |||||
| working temperature | -45 | — | 125 | ℃ | ||
| storage temperature | -55 | — | 150 | ℃ | ||
| If not specified, all the values in this table are tested at a voltage of 5Vdc and a temperature of 25 ± 3℃ | ||||||
