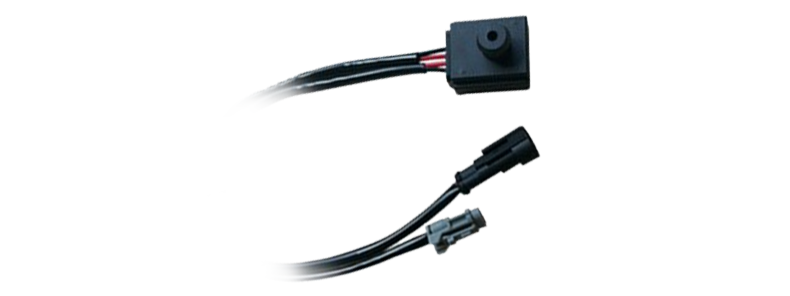

Low speed standard molded case 8V~23V S47 vacuum controller for Industrial/engineering air pressure control
XST-GM-SV- S47
minimum order
1 piece
Quantity
- Model Number:XST-GM-SV- S47
- Type:Pressure Sensor
- Place of Origin:Guangdong, China
- Brand Name:xunster
- Usage:Industrial/engineering air pressure control
- Output:12V DC
- Description:Vacuum controller

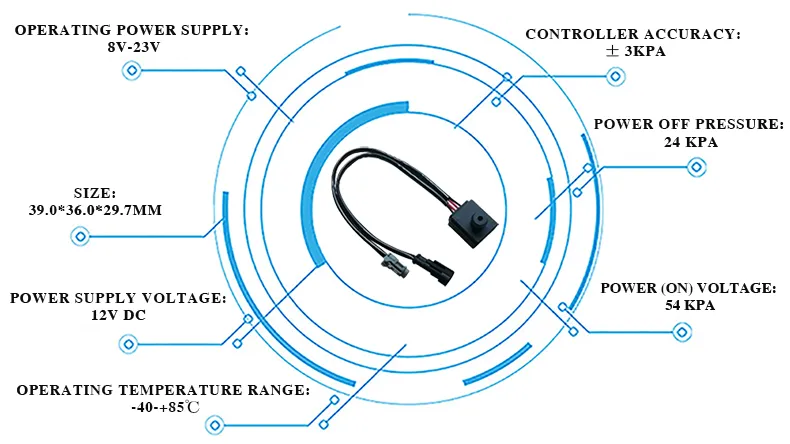

- operating power supply:8-23V
- Control the switch operating range:(OFF)24kPa,(ON)54kPa
- Control accuracy:±3kPa
- Designed life:≥1,000,000 cycles
- Circuit current bearing capacity:≤15A
- Medium temperature:-40℃~85℃

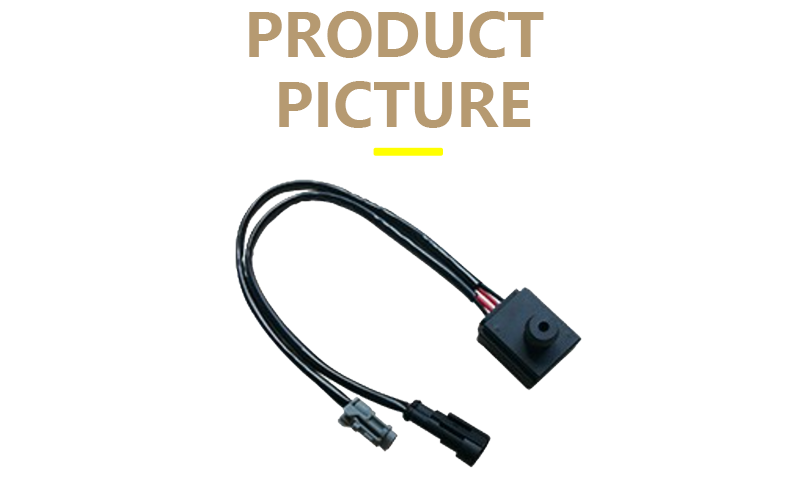

The XST-GM-The SV-S47 is developed and produced using a pressure sensor chip module and a special control signal processing integrated circuit chip, packaged in a plastic shell and protected by special glue.Each switch controller is subject with linear calibration and temperature compensation to ensure the accurate and stable operation of the vacuum pump without affected by the operating temperature.Standard power supply voltage is DC 12V.This product can be directly connected to the vacuum pump to control the vacuum pump start.
| Parameter | Min. | Typ. | Max | Unit | |
| operating temperature | -40 | 85 | ℃ | ||
| operating power supply | 8 | 23 | V | ||
| Control the switch operating range | (OFF)24kPa,(ON)54kPa | kPa | |||
| Control accuracy | ±3 | kPa | |||
| Designed life | ≥1,000,000 | cycles | |||
| Circuit current bearing capacity | ≤15 | A | |||
| Medium temperature | -40 | 85 | ℃ | ||
