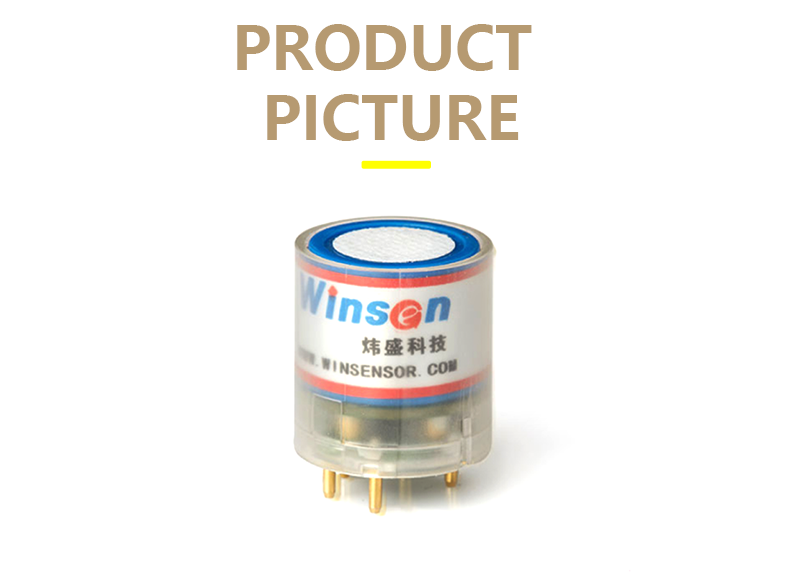

Electrochemical Detection Module Portable and fixed gas detector ZE03-02 various gas detection equipment and occasion
XST-ZE03-02
minimum order
1 piece
Quantity
- Model Number:XST-ZE03-02
- Type:Gas Sensor
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:Carbon Monoxide(co) Detection
- Description:Carbon Monoxide Gas Detection Sensor
- Target Gas:CO, O2, NH3, H2S, NO2, O3, SO2, CL2
- Working Voltage:DC 5±0.1V
- Working Current:< 5 mA
- Working Life:2 years
- Operating Environment Temp.:-20~50℃
- Operating Environment Humidity.:15%-90%RH (no condensation)
- Size:23.5mm*24.5mm
XST-ZE03-02 is a general-purpose and high-performance electrochemical module. It uses three electrodes, electrochemical gas sensor and high-performance micro-processor. By installing different gas sensor, the module could detect relevant gas. It is with built-in temperature sensor to make temperature compensation, which makes it could detect the gas concentration accurately. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers' different detection needs.
| Model No. | ZE03 |
| Target Gas | CO, O2, NH3, H2S, NO2, O3, SO2, CL2, HF, H2, PH3, HCL etc |

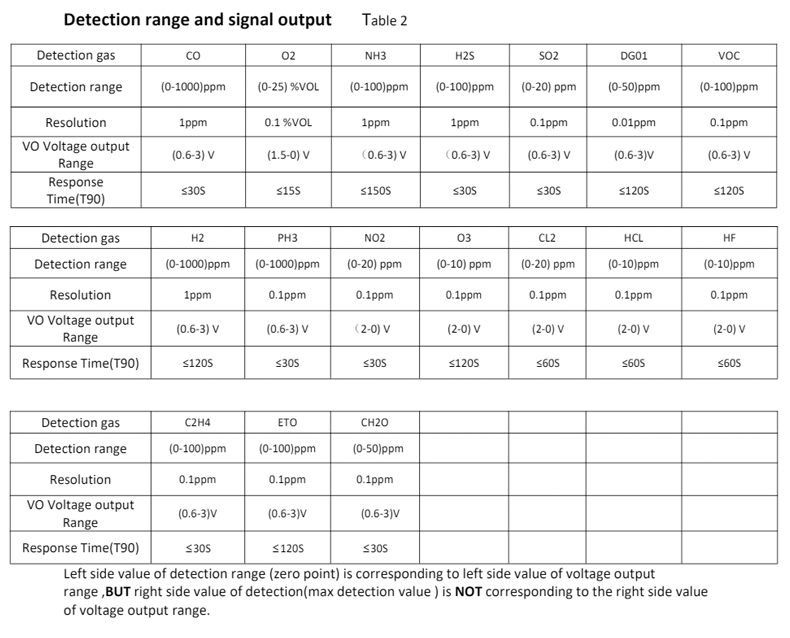

| Measurement Range | Refer stable 2.(can be customized also) |
| Working Voltage | DC 5±0.1V |
| Working Current | < 5 mA |
| Output Data | UART Output (TTL electrical level,3V) |
| Analog Voltage (refer stable2. for sensor original amplifying signal) | |
| Working Life | 2 years |
| Operating Environment | Temp.: -20~50℃ |
| Humidity.: 15%-90%RH (no condensation) | |
| Storage Environment | Temp.: -20~50℃ |
| Hum.: 15%RH-90%RH | |

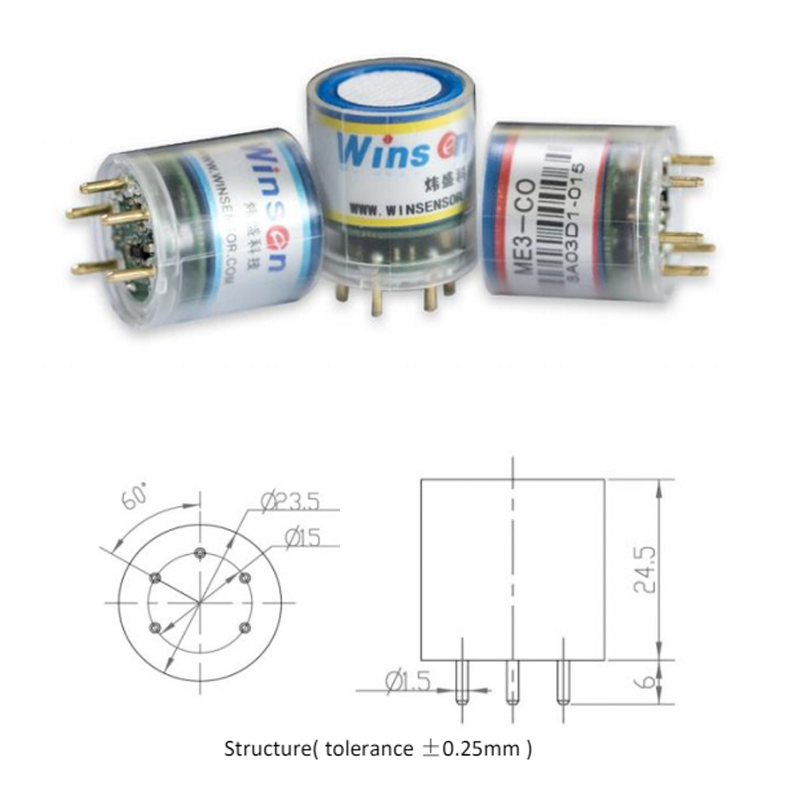

| Size | ø23.5mm*24.5mm |
