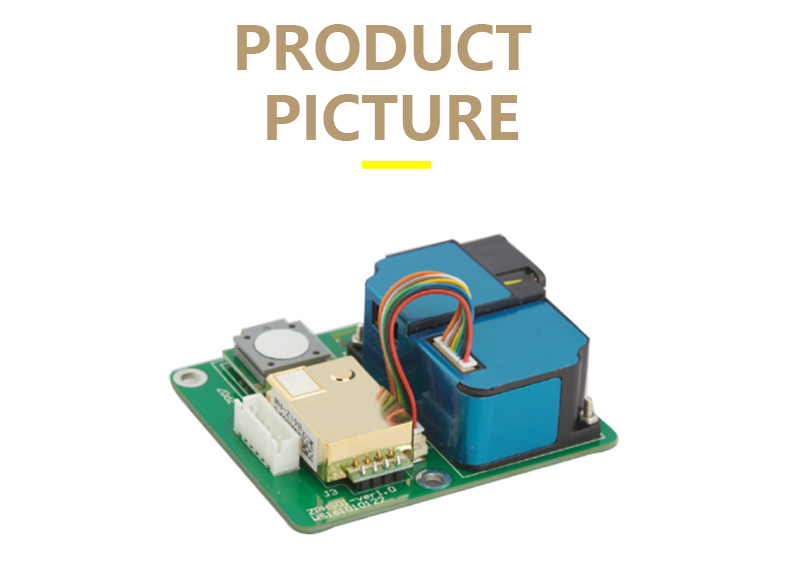

Multi-in-One Sensor Module air quality detection ZPHS01B for Gas detector,Air quality monitoring,Air conditioner
XST-ZPHS01-CH2O
minimum order
1 piece
Quantity
- Model Number:XST-ZPHS01-CH2O
- Type:Gas Sensor
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:Air quality sensor
- Description:Multi-in-One Sensor Module
- Target Gas:CO2,PM2.5,CH2O,TVOC,Temperature,Humidity
- Working voltage:5V (DC)
- Average Current:< 200 mA
- Interface level:3 V(compatible with 3.3V)
- Preheat time:≤ 3min
- Output signal:UART
- Tem. range:0~65℃
- Hum. range:0~100% RH
- Working Tem.:0~50℃
- Working Hum.:15~80% RH(no condensation)
Profile
This module integrates Electrochemical formaldehyde,Semiconductor VOC sensor, Laser particle sensor, NDIR CO2 sensor and temperature& humidity sensor.Communication Interface: TTL serial, Baud rate:9600, data bits:8, stop bit:1, check bit: no.
Application
Gas detector
Air conditioner
Air quality monitoring
Air purifier
HVAC system
Smart home
| Model No. | ZPHS01 |
| Target Gas | CO2,PM2.5,CH2O,TVOC,Temperature,Humidity |
| Interference gas | Alcohol/CO gas…etc. |
| Working voltage | 5V (DC) |
| Average Current | < 200 mA |
| Interface level | 3 V(compatible with 3.3V) |
| Output signal | UART |
| Preheat time | ≤ 3min |
| CO2 range | 0~5000ppm |
| PM2.5 range | 0~1000ug/m3 |
| CH2O range | 0~1.6ppm |
| TVOC range | 4 grades |
| Tem. range | 0~65℃ |
| Tem. precision | ±0.5℃ |
| Hum. range | 0~100% RH |
| Hum. precision | ±3% |
| Working Tem. | 0~50℃ |
| Working Hum. | 15~80% RH(no condensation) |
| Storage Tem. | 0~50℃ |
| Storage Hum. | 0~60% RH |

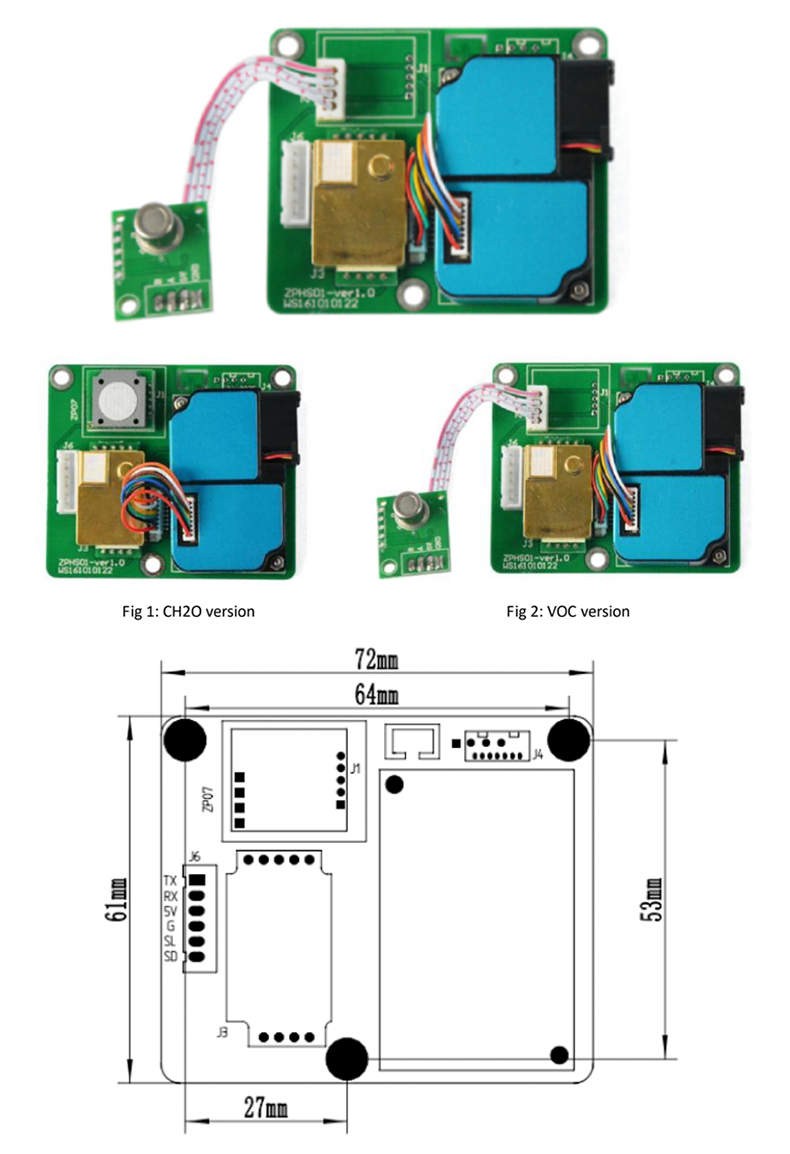

| Size | 72mmx61mm |
