Home Carbon Monoxide Sensors Module ZE16B-CO Electrochemical Alarm Probe Car Home Co gas Detection
XST-ZE16B-CO
minimum order
1 piece
Quantity
- Model Number:XST-ZE16B-CO
- Type:Gas Sensor
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Usage:Co gas Detection
- Description:CO Gas Sensor
- Detection gas:Carbon Monoxide(CO gas)
- Interfering gases:Alcohol &etc.
- Working voltage:5V DC
- Preheating time:30 seconds
- Response time:≤30 seconds
- Detection range:0~500ppm
- Solution:1ppm
- Working temperature:-10℃~55℃
- Working humidity:15%RH-90%RH(no condensation)
- Life span:2 years(in air)

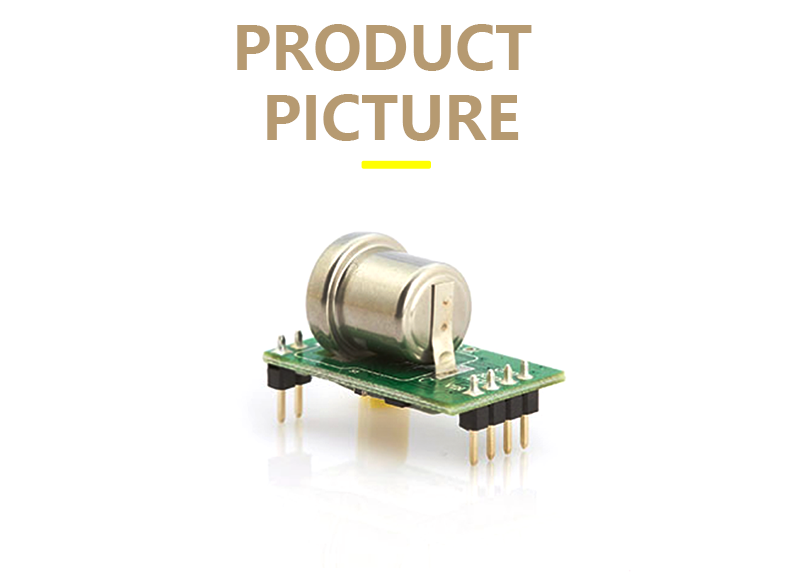

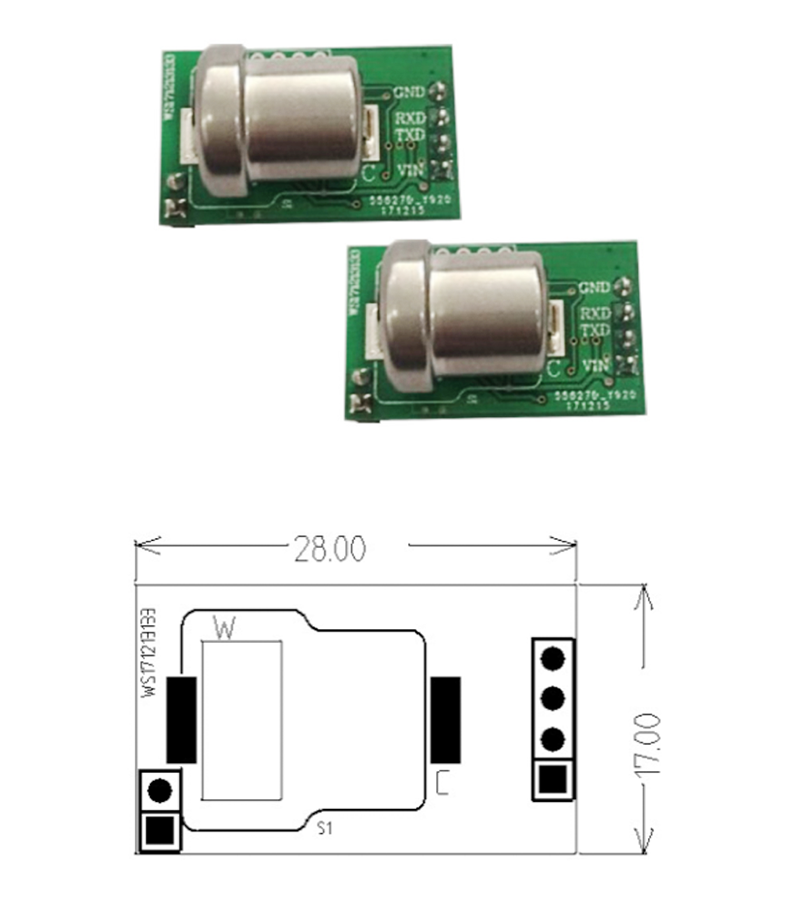

XST-ZE16B-CO is a general-purpose and miniaturization electrochemical carbon monoxide detection module. It utilizes electrochemical principle to detect CO in air which makes the module with high selectivity and stability. It is a combination of mature electrochemical detection principle and sophisticated circuit design.
| Model No. | ZE16B-CO |
| Detection gas | Carbon Monoxide(CO gas) |
| Interfering gases | Alcohol &etc. |
| Output data | UART output |
| Output way | PWM output |
| Working voltage | 5V DC |
| Preheating time | 30 seconds |
| Response time | ≤30 seconds |
| Recovery time | ≤30 seconds |
| Detection range | 0~500ppm |
| Solution | 1ppm |
| Working temperature | -10℃~55℃ |
| Working humidity | 15%RH-90%RH(no condensation) |
| Storage temperature | -10℃~55℃ |
| Life span | 2 years(in air) |
