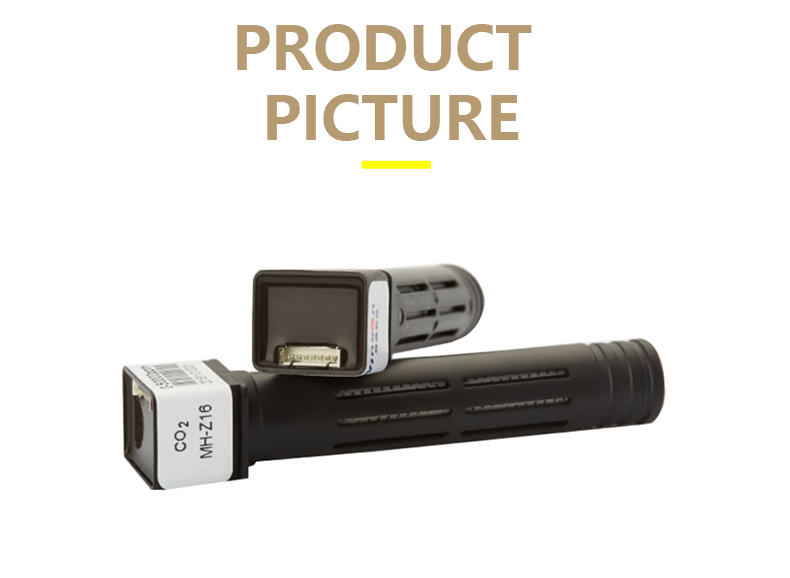

MH-Z16 0-50000ppm IR Infrared CO2 Gas Air Sensor Module NDIR Carbon Dioxide Air Quality Detection

• Model Number:XST-MH-Z16
• Type:Air quality sensor, Gas Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:detect the existence of CO2
• Description:Infrared CO2 Gas Module
• Detection Gas:CO2 gas
• Working voltage:DC (5.0±0.1) V
• Average current:< 85 mA(@5V power supply)
• Peak current:150 mA(@5V power supply)
• Interface level:3.3 V (5V Compatible)
• Measuring range:0~50000ppm range selectable
• Preheat time:10S
• Working temperature:-10℃~50℃
• Working humidity:0~95%RH
• Lifespan:>10 years

1. Profile
MH-Z16 NDIR Infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has digital output and PWM wave output. This common type infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.

2. Main features
High sensitivity, Low power consumption
Good stability
Temperature compensation, excellent linear output
Output method: UART, PWM
Long lifespan
Anti-water vapor interference, no poisoning

3. Application
animal husbandry production
educational instruments
indoor air quality monitoring equipment
HVAC equipment
air purification equipment
