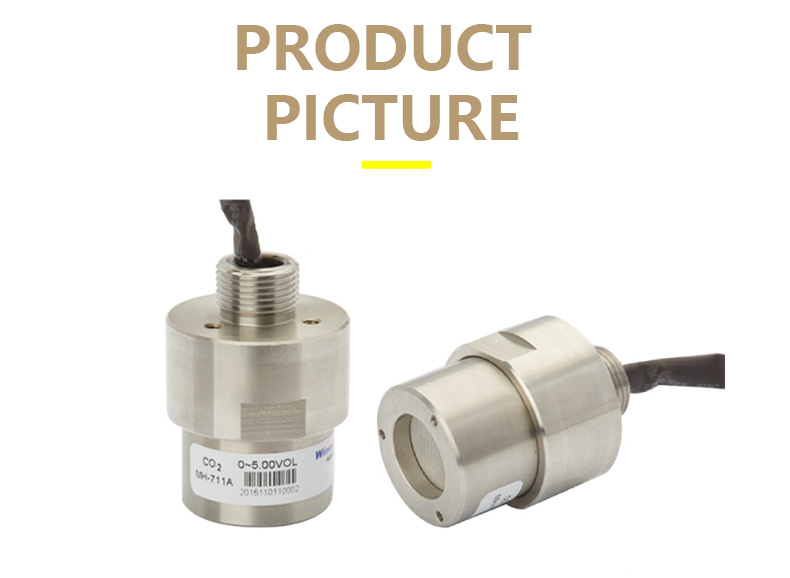

MH-711A CO2 gas sensor module to detect carbon Dioxide CO2 in air for industrial field instrumentation

• Model Number:XST-MH-711A
• Type:co2 sensor, Air quality sensor, Gas Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:detect carbon Dioxide CO2
• Description:Infrared CO2 Gas Sensor
• Target Gas:CO2
• Working Voltage:4.5 V ~ 5.5V DC
• Average Current:< 100mA
• Interface Level:3.3V
• Measurement Range:0~30%VOL optional
• Warm-up Time:3min
• Working Temp.:-40℃ ~ 70℃
• Working Humidity:0 to 95%RH
• Lifespan:>5 years
• Protected Class:IP65

1. Product Description
MH-711A is a universal type intelligent sensor to detect CO2 in air taking advantages of non-dispersive infrared (NDIR) principle. With high selectivity, no oxygen dependence, high performance and long lifespan features, MH-711A also has built-in temperature compensation feature. MH-711A is a compact and high-performance sensor based on infrared absorption of gas detection technology, micro-machining and sophisticated circuit design.

2. Characteristics

Long lifespan
High Sensitivity and resolution
5V constant power supply, low power consumption
Output method: UART, analog voltage signal, etc.
Quick response & Resume
Temperature compensation, excellent linear output
Anti-poisons, anti-vapor interference
Detect combustible gas concentration matching with flame-proof marked detector in area 1&2 explosive environments which mix of ⅡA, ⅡB, ⅡC and T1-T6 flammable gases, vapors and air

 3. Application
Widely used for industrial field instrumentation, industrial-process control and safety protection
