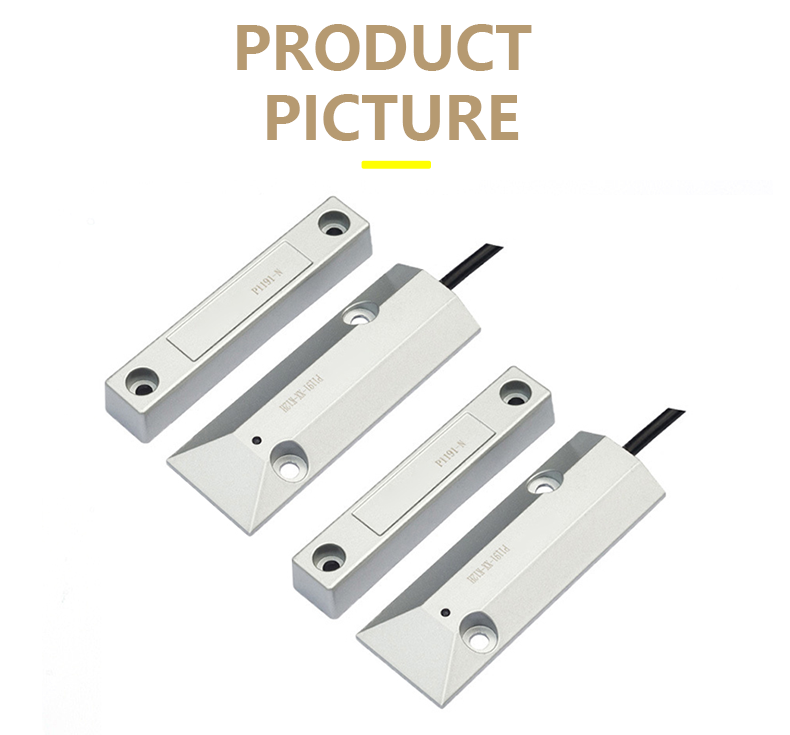

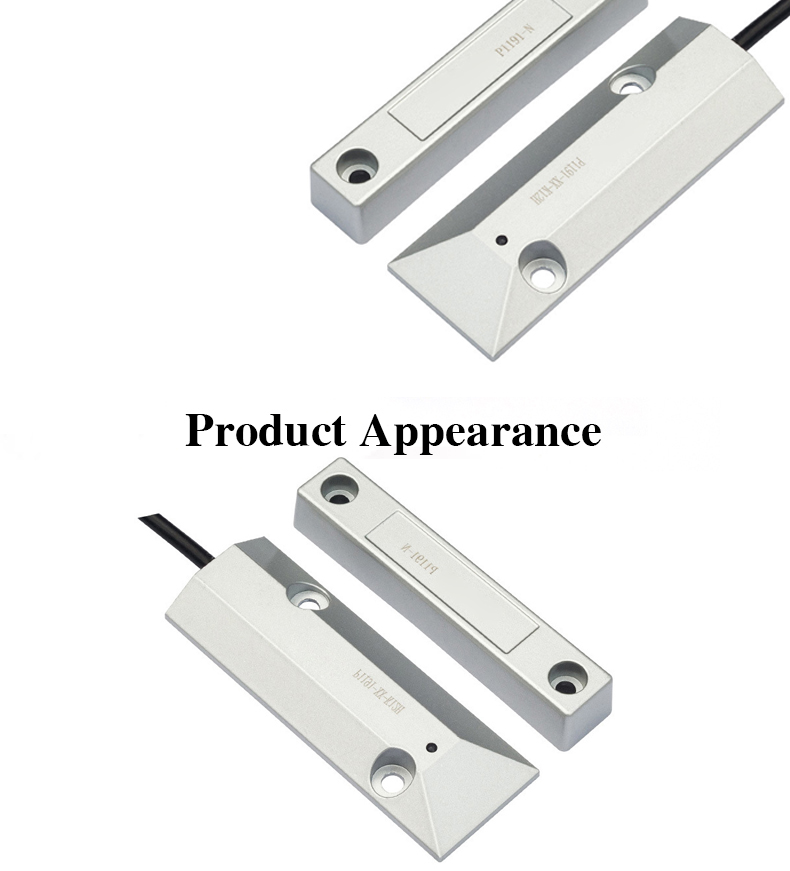

Broadside Customized Low Voltage Motion Switch Reed Switch Magnetic Proximity Sensor For Safety Equipment

• Model Number:XST-JJ-SP1191
• Type:Magnetic Proximity Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Safety Equipment
• Description:Magnetic Proximity Sensor
• Trigger mode:Magnet trigger

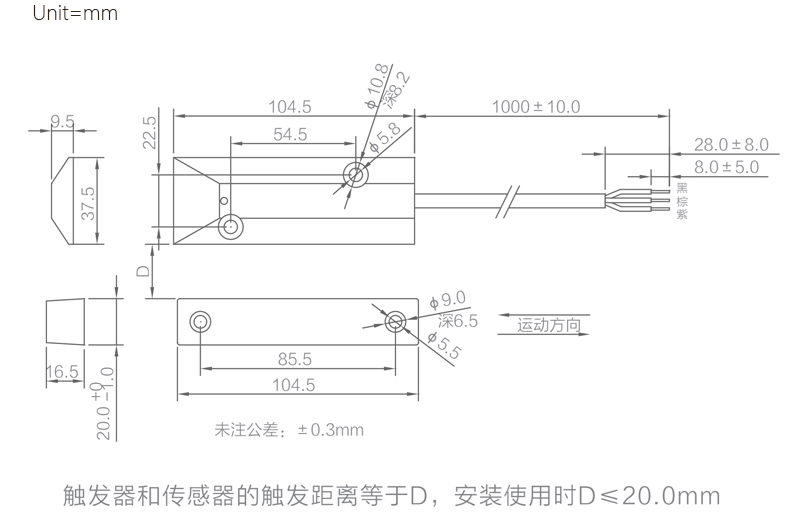

• Trigger distance:≤ 15 mm (face-to-face trigger)
• temperature range:-30~ +120 ℃

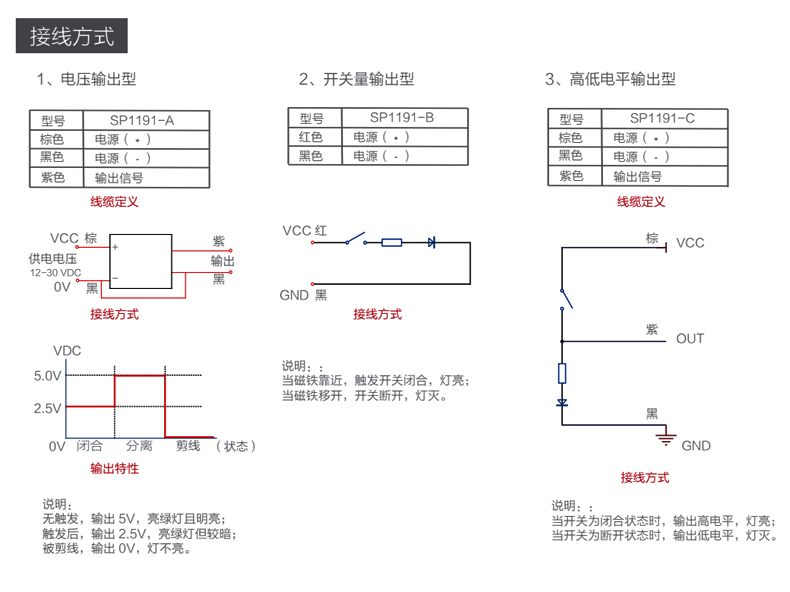

• Output mode::output 5V, green light bright When triggered, the output is 2.5V,

 Sp1191 series proximity switches generate a magnetic field around the sensor through the change of the position and polarity of the trigger to make the contact of the sensor act. The seal design life is at least 1 million times, and the installation is convenient. It can be adjusted according to different application environments of customers. CharacteristicNo need to stay power, good gas tightness, long service lifeMultiple magnetic field sensitivity range, which can be equipped with a magnet triggerHigh stability, high reliability, high consistencyCustomers can customize cables, terminals, etc.With light, visually display the connection state Application fieldPosition detectioncarSecurity anti -theftindustrial control * Product specifications can be customized according to customer requirements.   SP1191-ASP1191-BSP1191-Ccontact arrangement——Type a contact (normally open type)Type a contact (normally open type)Trigger modeMagnet triggerMagnet trigger——Trigger distance≤ 15 mm (face-to-face trigger)≥20 mm——Contact power——12-24 VDC70 W-maxSwitching voltage————DC 200AC 250 V-maxbreakdown voltage————DC 400 V-minSwitching current————1.0A-maxload current————1.75A-maxContact impedance————1.0Ω-maxInsulation impedance————10Ω-minContact capacity————0.3Pf-typtemperature range-30~ +120 ℃-25~80 ℃-25℃~+80℃Output mode:No trigger, output 5V, green light brightWhen triggered, the output is 2.5V, and the green light is darkCut wire, output 0V, light offSwitching valueOn triggerNo trigger, disconnectedHigh and low level outputTrigger (when closed):High level light is onLeave (when on): The low level light is off
