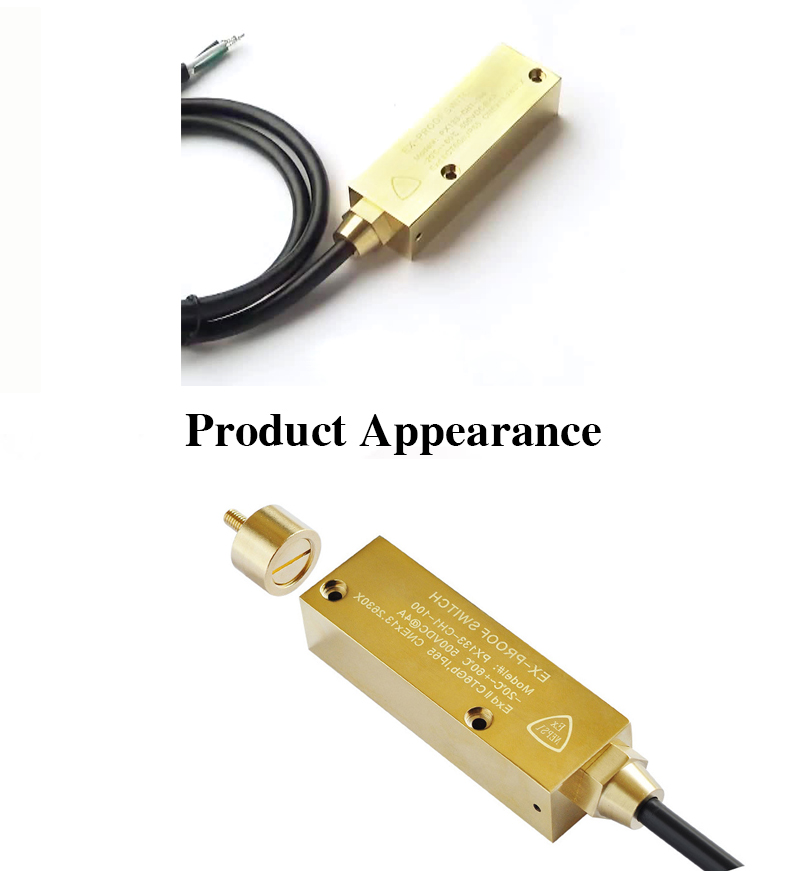

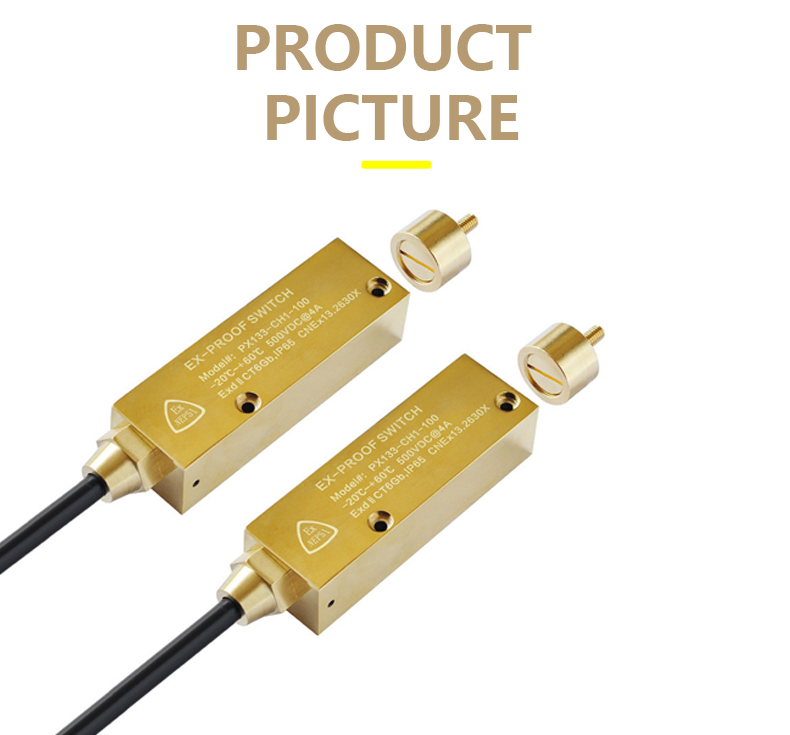

IP65 Explosion-proof Proximity Switch PX133 Motion Switch Flame-proof Magnetic Infrared Proximity Switch

• Model Number:XST-JJ-PX133
• Type:Magnetic Proximity Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Location of dangerous areas alarm
• Description:Explosion-proof Proximity Switch
• Max.switching power:30W
• Max.switching voltage:120V DC
• Min.breakdown voltage:400V DC
• Max.switching current:0.25A

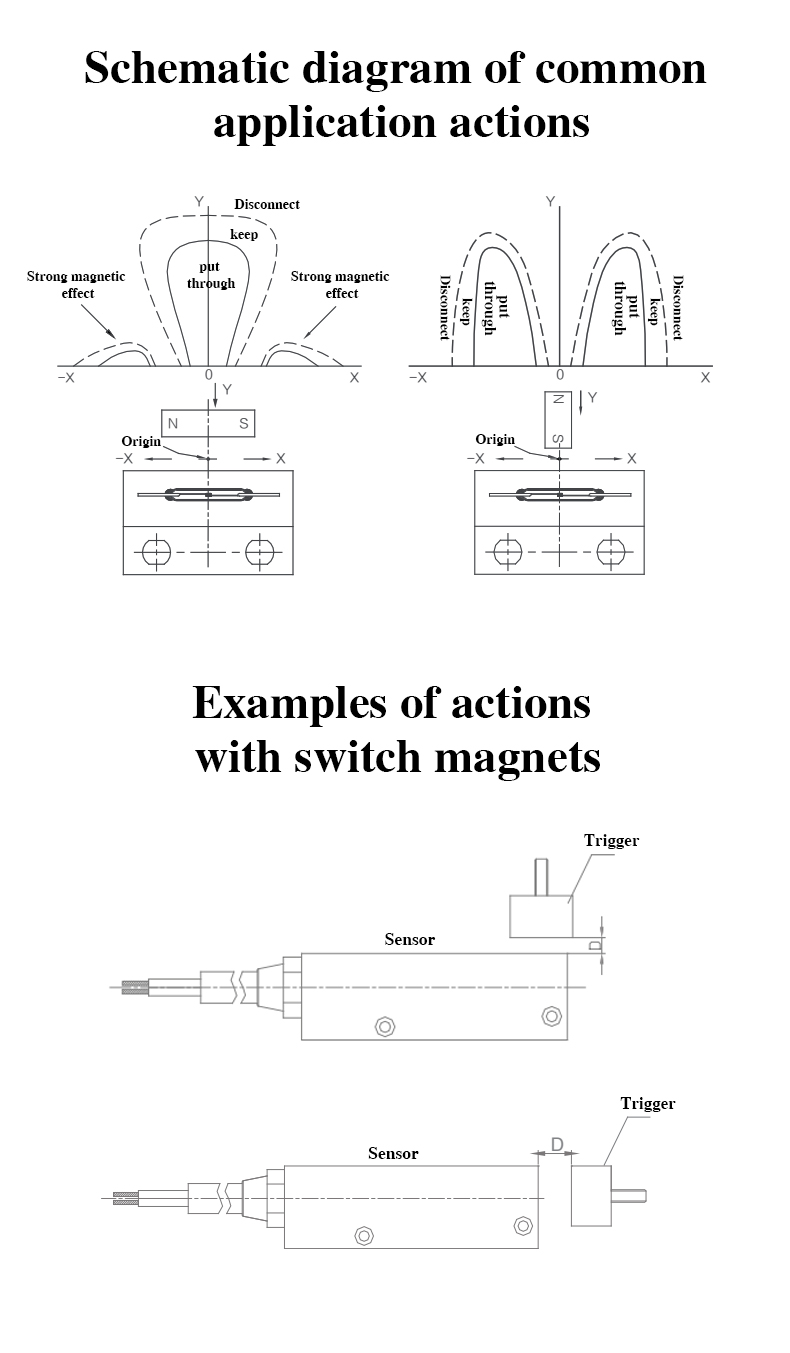

 The working principle of the proximity switch is to change the position and polarity of the trigger to make the sensor around. The change of magnetic field makes the contact of the sensor act. The explosion-proof grade of this series of switches is EXd ⅡCT6, Protection level IP65. CharacteristicUsing non -contact working methods, no power consumptionThe action distance can be customized according to demandLong service life, small volume, flexible structural changeHigh stability, high reliability, high repetitiveness, no need to maintain Application fieldindustrial controlRailCoal mine miningLocation of dangerous areas alarm * Product specifications can be customized according to customer requirements.  Electrical parametersswitch typeHigh pressure normally open typeHigh pressure normally closed typeSingle pole double throw typeMax.switching power30W100 WMax.switching voltage120V DC500V DCMin.breakdown voltage400V DC1000V DCMax.switching current0.25A3AMax.load current2.6A4AMax.contact impedance0.15Ω0.5ΩMin.insulation resistance109MΩ108MΩOperating temperature range-40℃~+125℃-20℃~+60℃Note: the above parameters can be formulated according to the specific needs of customers
