Normally Open/ Closed Proximity Switch with Dry Reed Theory Custom Made Magnetic Proximity Sensor

• Model Number:XST-JJ-SP115
• Type:Magnetic Proximity Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Smart Home Electric
• Description:Magnetic Proximity Sensor
• Max.switching power:10W
• Max.switching voltage(DC):180V
• Max.switching voltage(AC):130V
• Min.breakdown voltage:180V DC
• Max.load current:1.5A

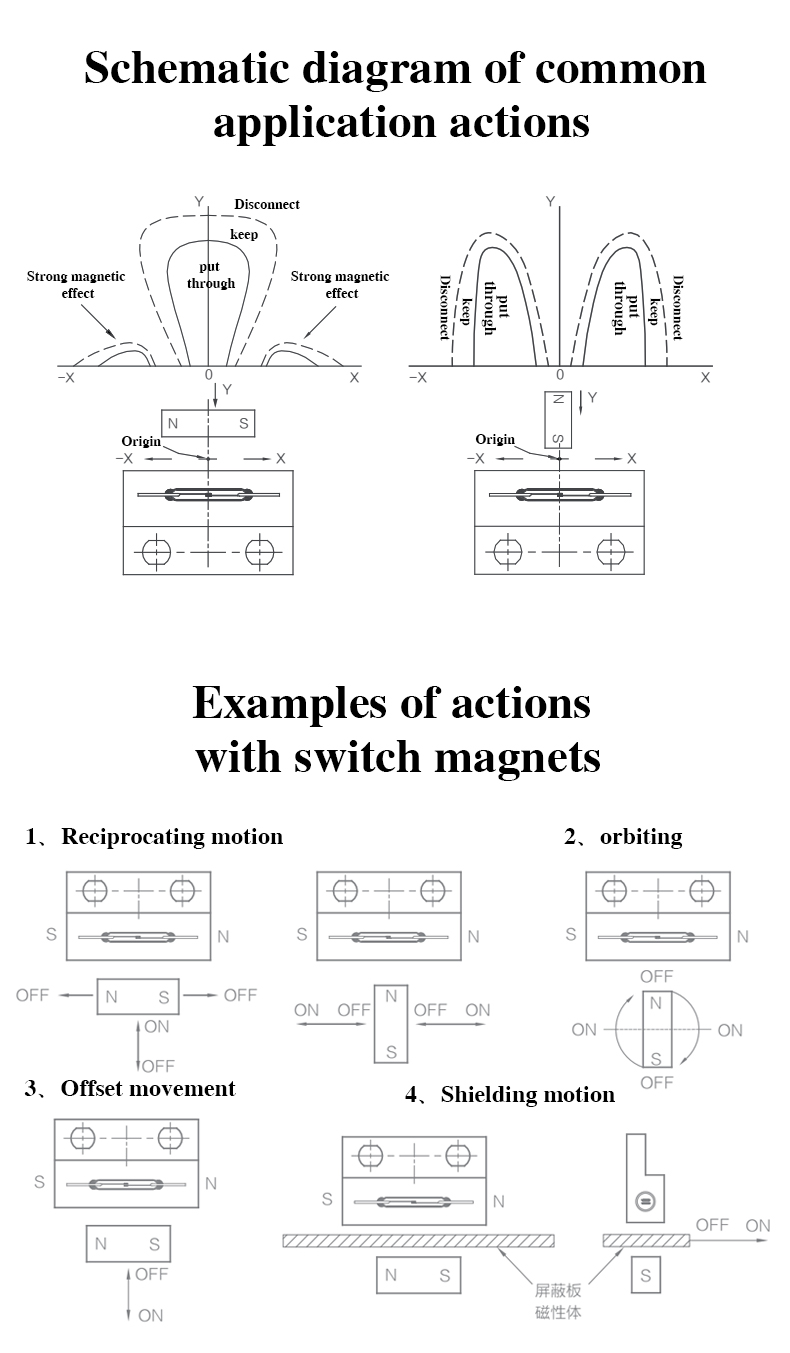

 The working principle of the proximity switch is to change the position and polarity of the trigger to make the sensor The surrounding magnetic field is generated to make the contact of the sensor act. The seal design life is at least one million times, and the installation is convenient. It can be adjusted according to different application environments of customers. CharacteristicNo need to stay power, good gas tightness, long service lifeMultiple magnetic field sensitivity range, which can be equipped with a magnet triggerHigh stability, high reliability, high consistencyCustomers can customize the color, wire, terminal, etc. Application fieldAutomobile, industrial control, counter counterFitness EquipmentSecurity anti -theftSmart home appliances, smart home, smart toys * Product specifications can be customized according to customer requirements.  switch type123Max.switching power10W70W5WMax.switching voltage(DC)180V200V175VMax.switching voltage(AC)130V250V125VMax.switching current(DC)250mA1000mA400mAMax.switching current(AC)250mA1000mA280mAMin.breakdown voltage180V DC450V DC200V DCMax.load current1.5A1.75A0.5AMax.contact impedance100mΩ90mΩ120mΩMin.insulation resistance106MΩ106MΩ106MΩOperating temperature range-40℃~+80℃-40℃~+80℃-40℃~+80℃Note: the above parameters can be formulated according to the specific needs of customers
