KSD 9700 Thermal Switch Metal Case snap action ksd9700 thermostat metal case over current protector

• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Model Number:XST-WK-9700-B
• Type:Other
• Application:over current protector
• Brand:KSD 9700 Thermal Switch
• Operating Temperature:30℃~150℃
• Current Rating (Amps):8A 4A 3A
• Voltage Rating - AC:250V
• Voltage Rating - DC:12V 24V
• Series project:BL-WK-9700-B

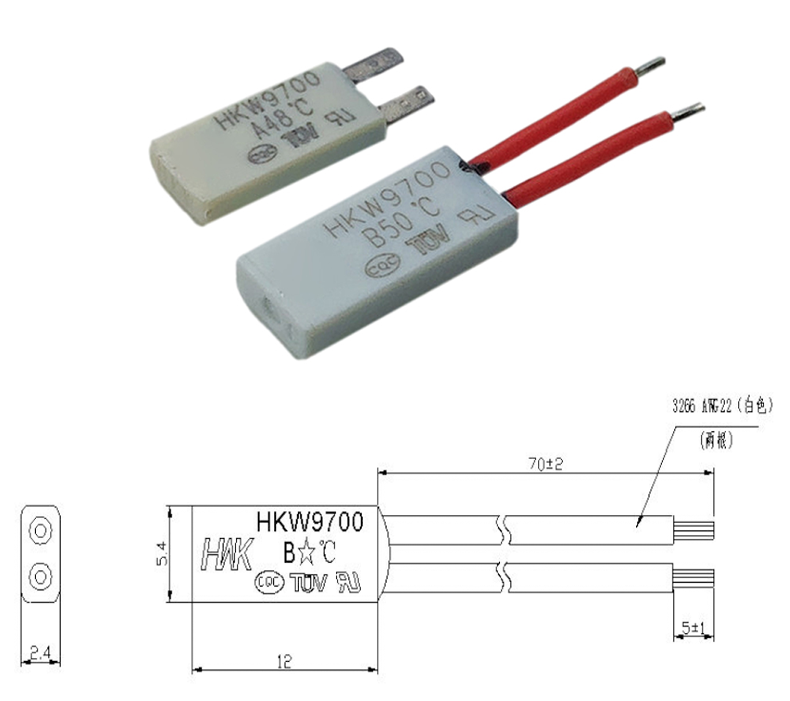

• Plastic shell:15*5.4*2.4MM; 12*5.4*2.4MM
• Contact type:Normally closed/opened
• Operating temp:40-155℃,5℃ per stepper step
• Tolerance:±3℃ ±5℃
• Contact resistance:≤50mΩ
• Reset temp:action temp down 15-45℃
• Electrical strength:AC1500V/m in/min No breakdown
• Cycle lifetime:≥10000 times

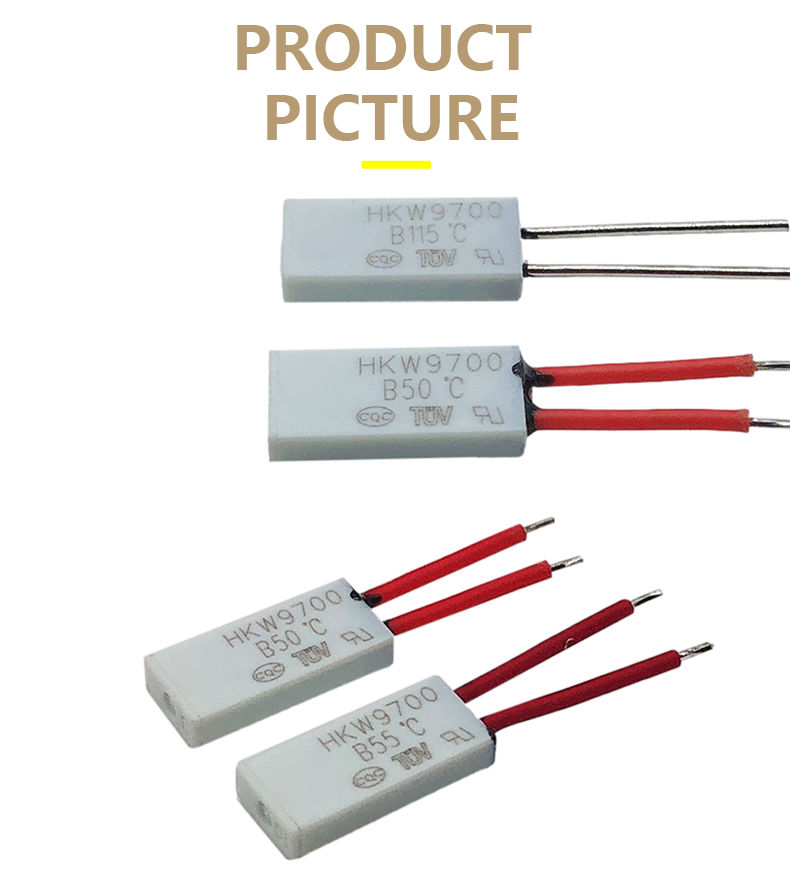

XST-WK-Hk9700-A-B-C series thermal protector is ultra-small in size, sensitive to temperature, accurate in protection, and installed by patch, which is especially suitable for the safety protection of various circuit boards. Ultra-small volume, more flexible and convenient installation, sensitive to temperature, quick action, quick and convenient plug-in installation, meeting ROHS standard of environmental protection, normally open and normally closed optional.
