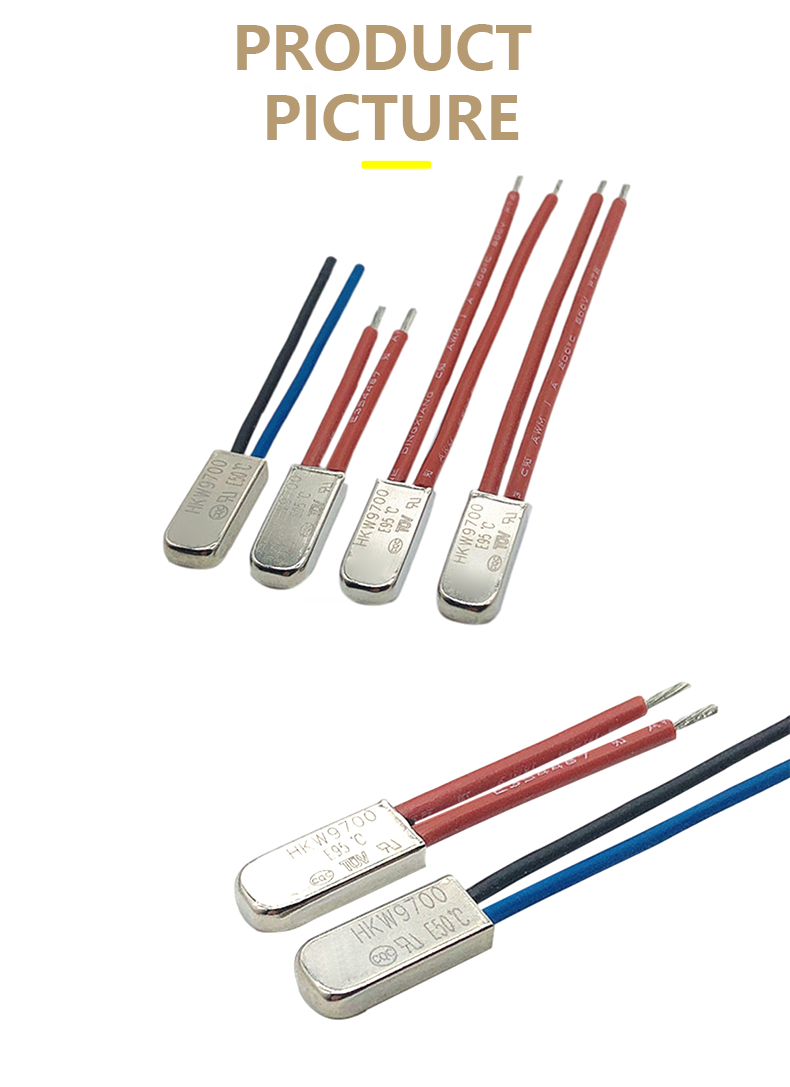

Thermostat Temperature Controlled Switch KSD-9700 Normal Closed Ceramic Thermal Protector 5A/250V
XST-WK-9700-E
minimum order
1 piece
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Xunster
- Model Number:XST-WK-9700-E
- Type:Other
- Application:electrical equipment
- Supplier Type:Other
- Brand:Temperature Controlled Switch
- Operating Temperature:30℃~150℃
- Current Rating (Amps):4A 5A 7A 8A
- Voltage Rating - AC:125V 250V
- Voltage Rating - DC:12V 24V
- Series project:BL-WK-9700-E

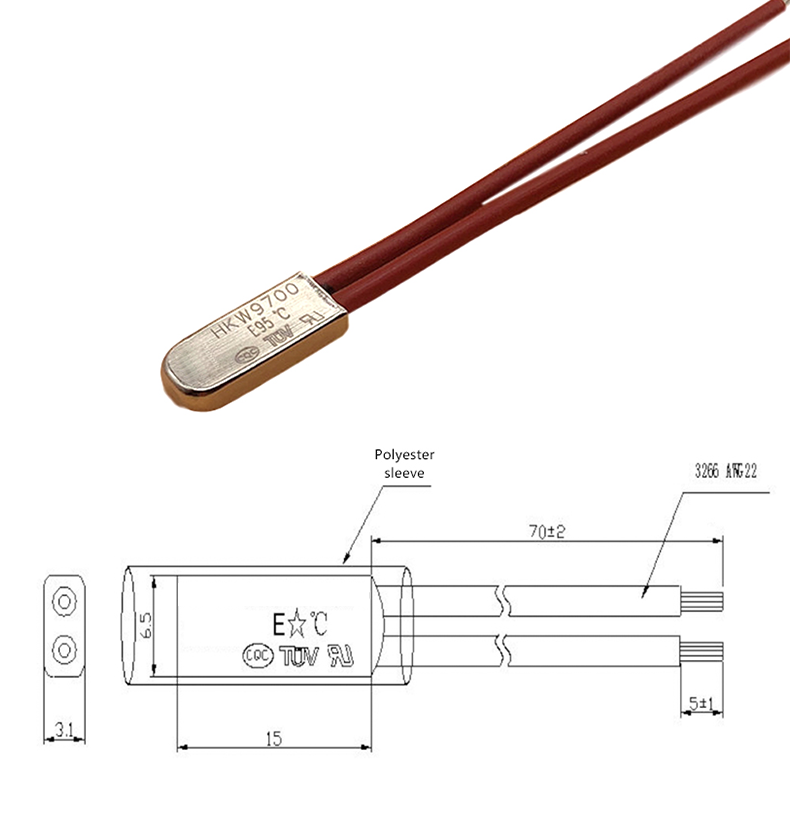

- Plastic shell:15*6.5*3.1
- Contact type:Normally closed/opened
- Operating temp:40-160℃,5℃ per stepper step
- Tolerance:±5℃ ±7℃
- Contact resistance:≤50mΩ
- Reset temp:action temp down 15-45℃
- Electrical strength:AC1500V/m in/min No breakdown
- Cycle lifetime:≥10000 times
XST-WK-HkW9700-E thermal protector has small dimension; insulation shell; sensitive and long life time. Its widely use in new energy battery; motor; power; ballast; transformer; integrated circuit and electrical equipment’s overheat and overload double protection
| Series project | XST-WK-9700-E |
| Plastic shell | 15*6.5*3.1 |
| Contact type | Normally closed/opened |
| Operating temp | 40-160℃,5℃ per stepper step |
| Tolerance | ±5℃ ±7℃ |
| Contact resistance | ≤50mΩ |
| Reset temp | action temp down 15-45℃ |
| Electrical strength | AC1500V/m in/min No breakdown |
| Cycle lifetime | ≥10000 times |
