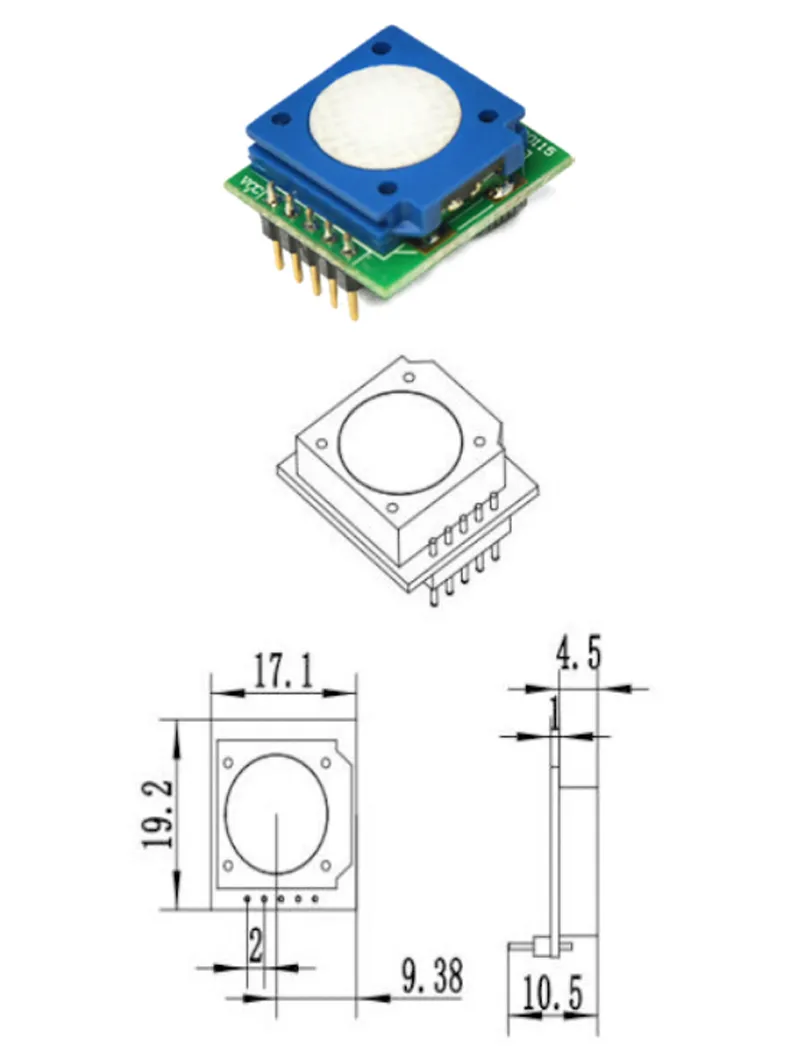

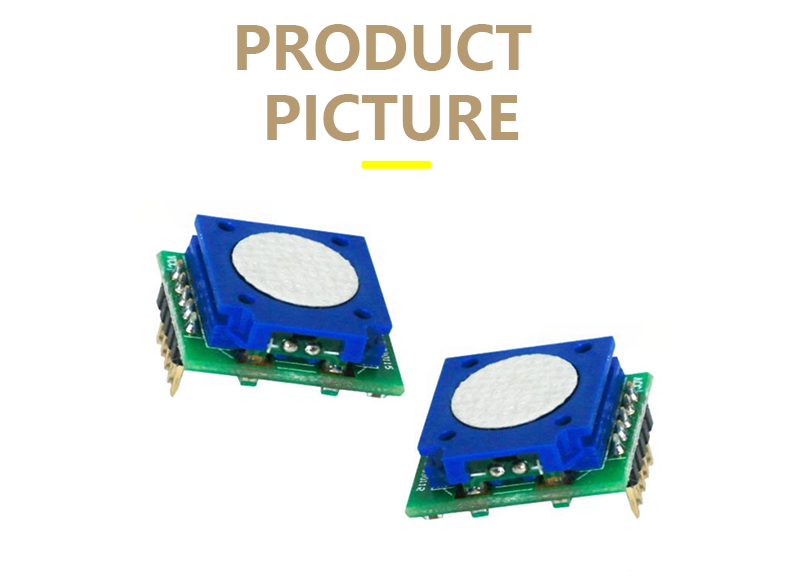

0-10ppm Ozone O3 Gas Sensor Module ZE27-O3 DIP Electrochemical Ozone Sensor For Ozone Concentration Exceeded Detection

• Model Number:XST-ZE27
• Type:Air quality sensor, Gas Sensor
• Place of Origin:Guangdong, China
• Brand Name:Xunster
• Usage:Ozone Concentration Exceeded Detection
• Description:Ozone O3 Gas Sensor Module
• Target Gas:O3
• Interference Gas:NO2, CL2 &etc.
• Output Data:UART Output (3V-TTL)
• Working Voltage:3.7V~5.5V
• Warm up time:≤3min
• Detection Range:0~10ppm
• Operating Temp.:-20℃~50℃
• Operating Hum.:15~90%RH
• Storage temp.:-20℃~50℃
• Working life:2 years (in air)

Profile
ZE27-O3 is a general-purpose and miniaturization electrochemical ozone detection module. It utilizes electrochemical principle to detect ozone in air which makes the module with high selectivity and stability. It is a combination of mature electrochemical detection principle and sophisticated circuit design.

Features
High sensitivity & resolution& Good stability
Extremely low power consumption
UART output way
High stability, excellent anti-interference ability, temperature compensation, excellent linear output

Applications
Portable detector, air-quality monitor device, Ozone disinfection cabinet, smart home device &etc.
